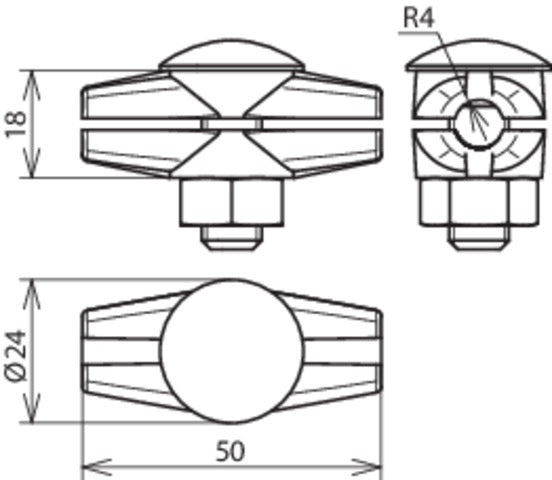

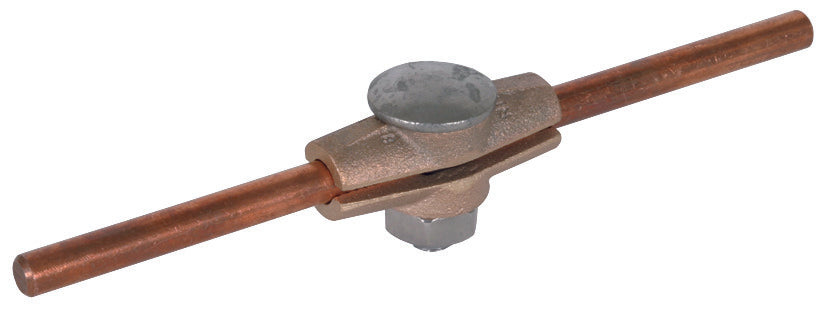

Dehn ES Connector RCB For Rd 8mm With Truss Head Screw - 309087
This is a Dehn connector specifically designed for lightning protection. It is made from red cast iron and employs a clamp connection type. It includes one-screw fastening and is compliant with EN 62561-1 standards. This connector is suitable for connecting round conductors of 8mm diameter in a longitudinal arrangement. The surface is left untreated, with no additional protection applied. It features a very high lightning current carrying capacity of 100kA, measured under a 10/350 µs waveform.
- Regular price
- $13.60 USD
We sell only to registered businesses
Description
This is a Dehn connector specifically designed for lightning protection. It is made from red cast iron and employs a clamp connection type. It includes one-screw fastening and is compliant with EN 62561-1 standards. This connector is suitable for connecting round conductors of 8mm diameter in a longitudinal arrangement. The surface is left untreated, with no additional protection applied. It features a very high lightning current carrying capacity of 100kA, measured under a 10/350 µs waveform.
