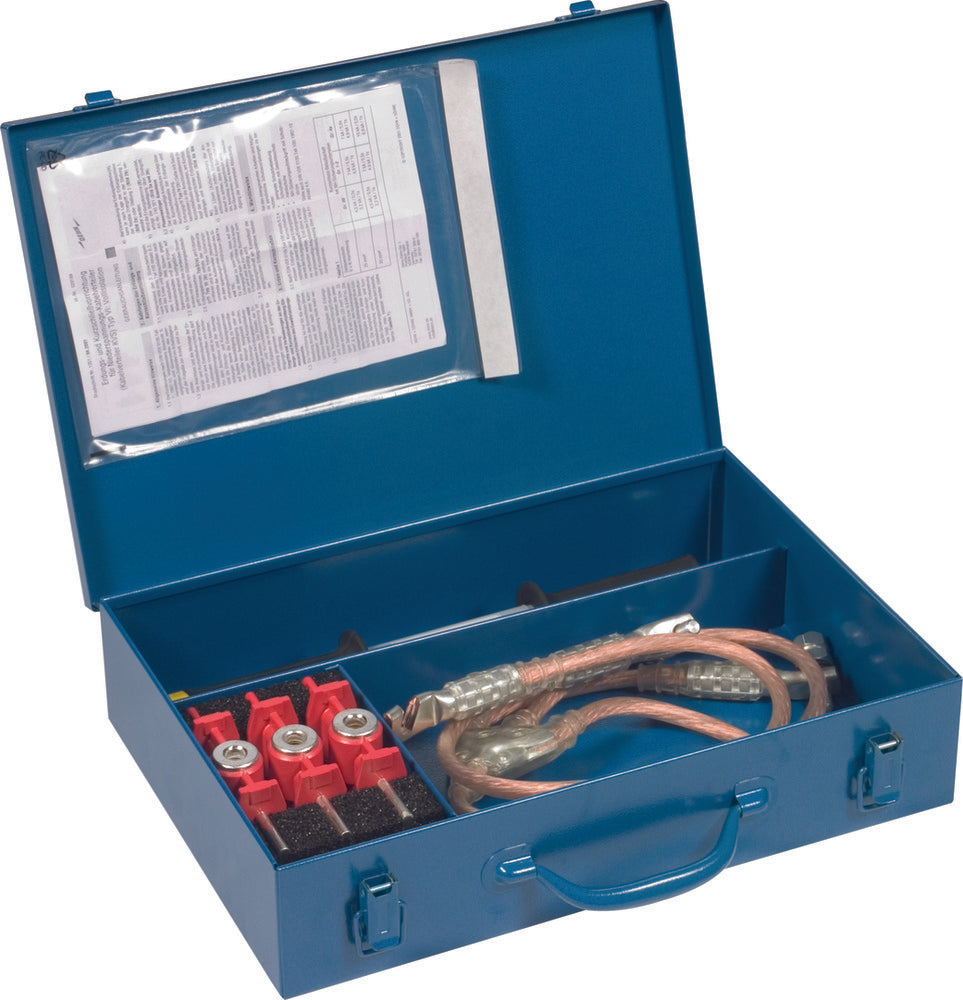

Dehn Earthing Short Circuit Kit For Cable Distribution Cabinets - 766302

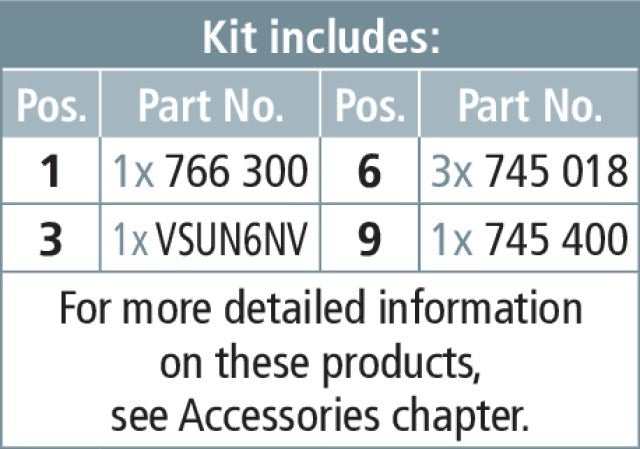

The Dehn TI earthing and short-circuiting kit is a three-pole device created according to EN/IEC 61230 (DIN VDE 0683-100) guidelines. It is designed to ground and short-circuit electrical installations at the work location in line with EN 50110 (DIN VDE 0105-100). The device features an M10 connection and is partly insulated (TI), making it a complete kit for low-voltage cable distribution cabinets. It is a variant of the earthing and short-circuiting device V162LDM. The kit comes with an earthing wire of 500mm and phase wires of 200mm and 400mm, each with a cross-section of 25mm². Other cable lengths can be selected via the EaS configurator on the Dehn website.
- Regular price
- $1,147.75 USD
We sell only to registered businesses
Description
The Dehn TI earthing and short-circuiting kit is a three-pole device created according to EN/IEC 61230 (DIN VDE 0683-100) guidelines. It is designed to ground and short-circuit electrical installations at the work location in line with EN 50110 (DIN VDE 0105-100). The device features an M10 connection and is partly insulated (TI), making it a complete kit for low-voltage cable distribution cabinets. It is a variant of the earthing and short-circuiting device V162LDM. The kit comes with an earthing wire of 500mm and phase wires of 200mm and 400mm, each with a cross-section of 25mm². Other cable lengths can be selected via the EaS configurator on the Dehn website.
