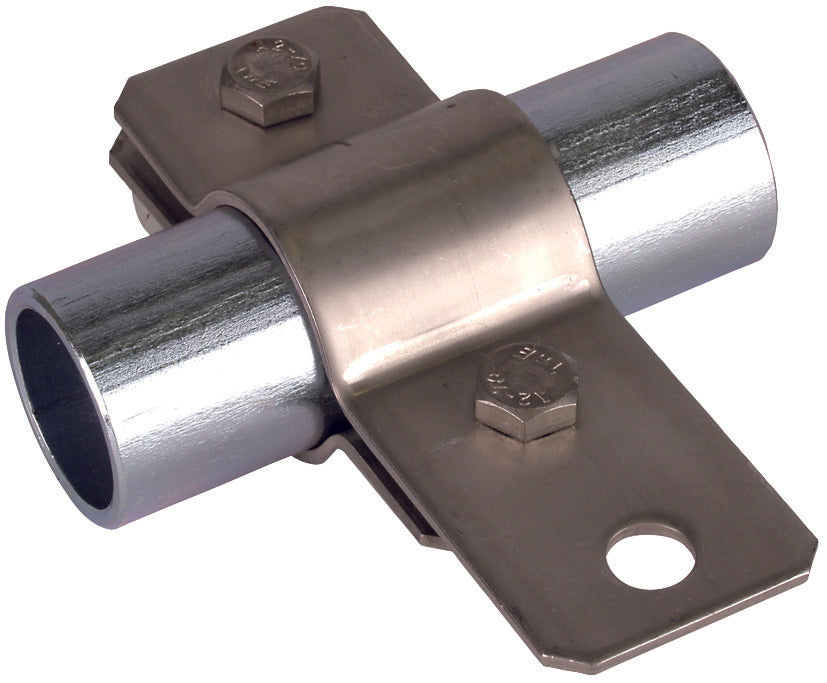

Dehn Earthing Pipe Clamp D 60mm With Bore D 11mm StSt - 410379

Dehn Earthing Pipe Clamp D 60mm With Bore D 11mm StSt - 410379
Dehn Earthing Pipe Clamp D 60mm With Bore D 11mm StSt - 410379
Dehn Earthing Pipe Clamp D 60mm With Bore D 11mm StSt - 410379
Dehn Earthing Pipe Clamp D 60mm With Bore D 11mm StSt - 410379
Image may vary slightly
See specifications for accurate information.
Reference: E3P8V
Brand: DEHN
Mfr. Part: 410379

The Earthing pipe clamp lightning protection is designed for integrating pipes into the protective and functional equipotential bonding. It is compliant with EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), and features lightning equipotential bonding in accordance with IEC 62305-3. This type StSt model is equipped with M8 screws, and offers connection for a flat conductor with M10 screws and nuts. It is suitable for a round conductor of 7-10 mm, including a KS connector.

View all
Note: product cannot be returned
$16.46 USD
excl VAT
In stock Ships in 11d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD (excl VAT)
Expected delivery in 13 - 15 business days

We sell only to registered businesses

Customers rate us: 4.92 / 5

664 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Earthing pipe clamp lightning protection is designed for integrating pipes into the protective and functional equipotential bonding. It is compliant with EN 62561-1, IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540), and features lightning equipotential bonding in accordance with IEC 62305-3. This type StSt model is equipped with M8 screws, and offers connection for a flat conductor with M10 screws and nuts. It is suitable for a round conductor of 7-10 mm, including a KS connector.

Downloads

Product datasheet (EN)
pdf
Download

Specifications
