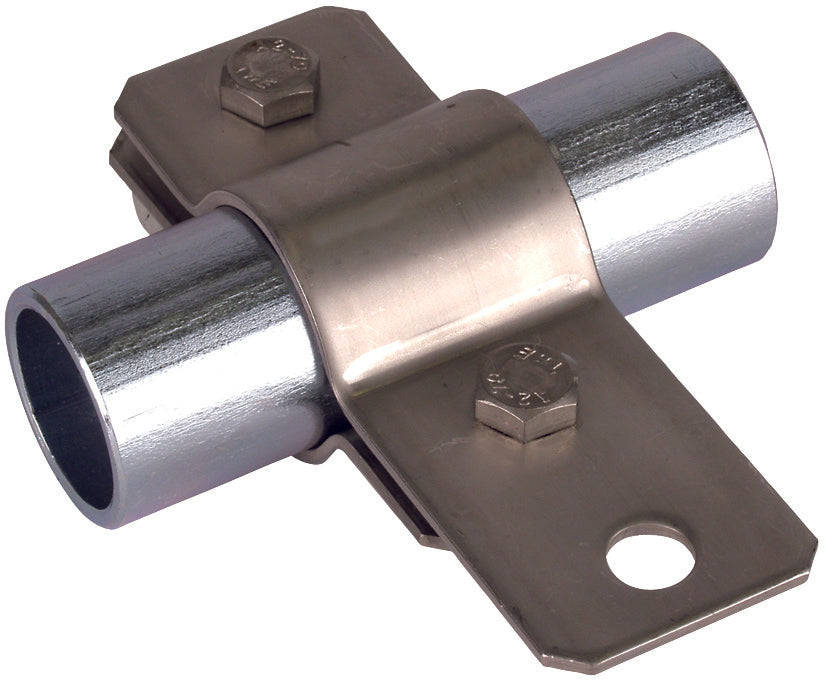

Dehn Earthing Pipe Clamp D 55mm With Bore D 11mm StSt - 410369
The Earthing pipe clamp is designed for lightning protection and complies with EN 62561-1. It is intended for the integration of pipes into the protective and functional equipotential bonding, following the IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) standards and also provides lightning equipotential bonding as per IEC 62305-3. The type StSt comes with M8 screws for the connection and M10 screws and nuts suitable for a flat conductor. The clamp can also support a round conductor measuring 7-10 mm, for example, a KS connector. The clamp's clamping range is 55mm with a maximum and a minimum clamping range of 1.1/2" and 1.3/4" respectively. It's made from stainless steel (RVS 304, V2A) and has no surface protection treatment.
- Regular price
- $12.52
Description
The Earthing pipe clamp is designed for lightning protection and complies with EN 62561-1. It is intended for the integration of pipes into the protective and functional equipotential bonding, following the IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) standards and also provides lightning equipotential bonding as per IEC 62305-3. The type StSt comes with M8 screws for the connection and M10 screws and nuts suitable for a flat conductor. The clamp can also support a round conductor measuring 7-10 mm, for example, a KS connector. The clamp's clamping range is 55mm with a maximum and a minimum clamping range of 1.1/2" and 1.3/4" respectively. It's made from stainless steel (RVS 304, V2A) and has no surface protection treatment.
