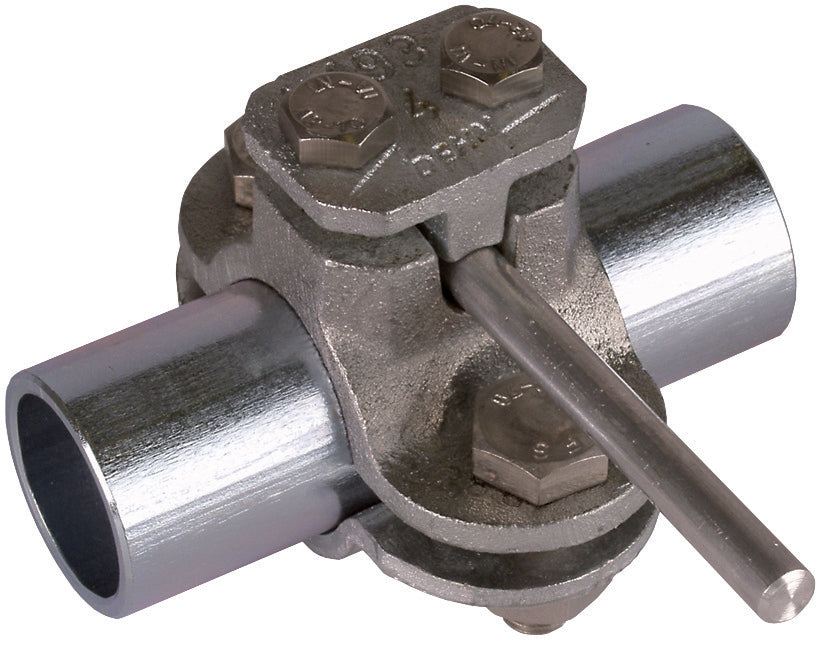

Dehn Earthing Pipe Clamp D 27mm With Connection Clamp Rd 4-10mm - 407034
Notice: This product will be discontinued in the future
The item is an earthing pipe clamp for lightning protection, compliant with EN 62561-1. It is used for integrating pipes into both protective and functional equipotential bonding per IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC 62305-3. The clamp made of malleable cast iron, has a clamp/tension range of 27mm and a utmost clamp/tension range of 0.75 inches. It can connect to a cable cross-section ranging from 4 - 70mm² with a single conductor. Smallest clamping span is 0.75 inches. The surface of the clamp is thermally galvanized and is equipped with M10 screws, allowing for a connection for Rd 4 - 10mm.
Notice: This product will be discontinued in the future
Description
The item is an earthing pipe clamp for lightning protection, compliant with EN 62561-1. It is used for integrating pipes into both protective and functional equipotential bonding per IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding according to IEC 62305-3. The clamp made of malleable cast iron, has a clamp/tension range of 27mm and a utmost clamp/tension range of 0.75 inches. It can connect to a cable cross-section ranging from 4 - 70mm² with a single conductor. Smallest clamping span is 0.75 inches. The surface of the clamp is thermally galvanized and is equipped with M10 screws, allowing for a connection for Rd 4 - 10mm.
