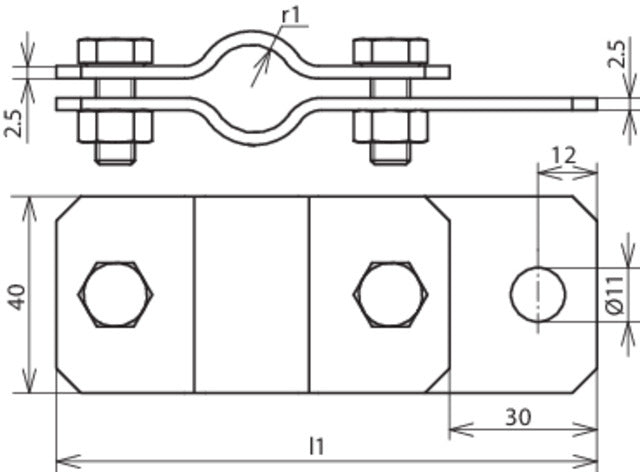

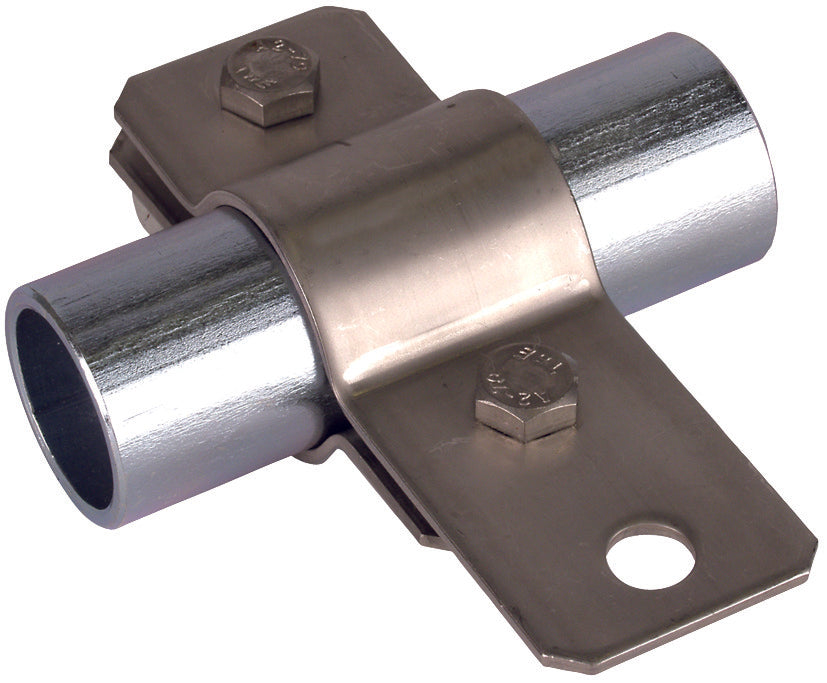

Dehn Earthing Pipe Clamp D 27mm With Bore D 11mm StSt V2A - 410329
The Earthing pipe clamp provides lightning protection in compliance with EN 62561-1. It is designed to integrate pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding following IEC 62305-3. The type StSt model features M8 screws and has an interface for a flat conductor with M10 screws and nuts. It is suitable for a round conductor that is 7-10 mm thick, such as a KS connector.
- Regular price
- $12.60
Description
The Earthing pipe clamp provides lightning protection in compliance with EN 62561-1. It is designed to integrate pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and lightning equipotential bonding following IEC 62305-3. The type StSt model features M8 screws and has an interface for a flat conductor with M10 screws and nuts. It is suitable for a round conductor that is 7-10 mm thick, such as a KS connector.
