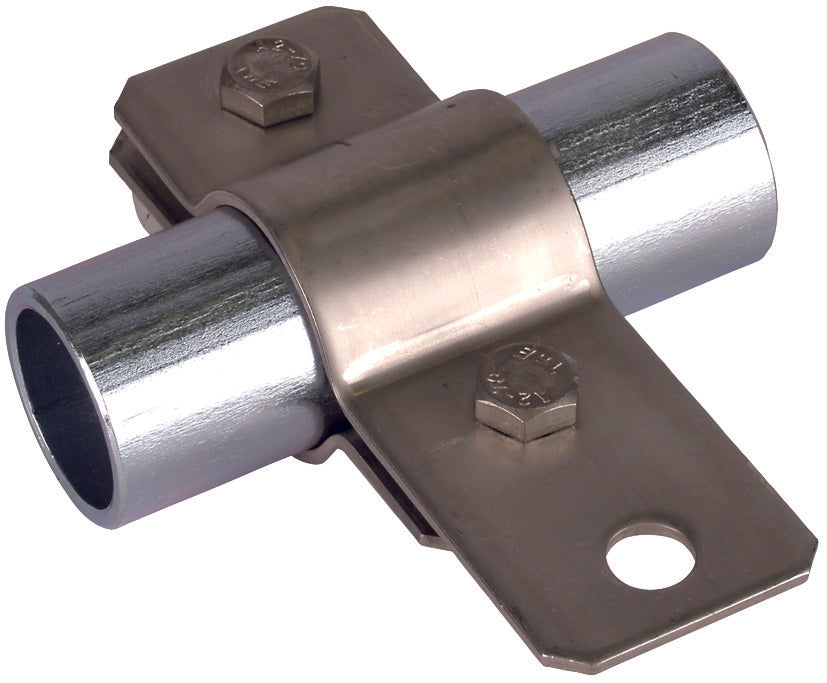

Dehn Earthing Pipe Clamp D 17mm With Bore D 11mm StSt - 410309
The Earthing pipe clamp for lightning protection complies with EN 62561-1. Its purpose is to integrate pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and the lightning equipotential bonding according to IEC 62305-3. This type of clamp is made from stainless steel (StSt) and comes with M8 screws. It has a connection for a flat conductor that includes M10 screws and nuts. It can accommodate a round conductor of 7-10mm diameter, for instance, a KS connector.
- Regular price
- $11.03 USD
We sell only to registered businesses
Description
The Earthing pipe clamp for lightning protection complies with EN 62561-1. Its purpose is to integrate pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and the lightning equipotential bonding according to IEC 62305-3. This type of clamp is made from stainless steel (StSt) and comes with M8 screws. It has a connection for a flat conductor that includes M10 screws and nuts. It can accommodate a round conductor of 7-10mm diameter, for instance, a KS connector.
