Dehn Earthing Pipe Clamp D 10-27mm With Terminal Clamp - 540920

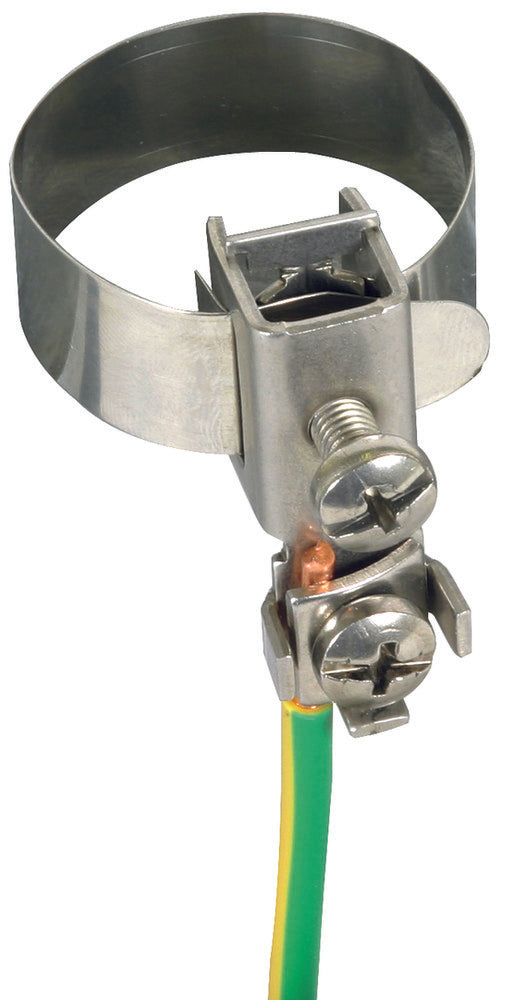

The Earthing pipe clamp, type BRS17, is designed for the integration of pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540). It is constructed with a continuously adjustable stainless steel (RVS 304 V2A) strap and allows for the connection of one or two conductors or for through-wiring. It accommodates connection cross-sections from 2.5-10mm² and is suitable for clamping or tensioning ranges between 10-27mm (3/4 inches max and 1/8 inches min). The clamp does not include surface protection and remains untreated.
- Regular price
- $8.55 USD
We sell only to registered businesses
Description
The Earthing pipe clamp, type BRS17, is designed for the integration of pipes into the protective and functional equipotential bonding in accordance with IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540). It is constructed with a continuously adjustable stainless steel (RVS 304 V2A) strap and allows for the connection of one or two conductors or for through-wiring. It accommodates connection cross-sections from 2.5-10mm² and is suitable for clamping or tensioning ranges between 10-27mm (3/4 inches max and 1/8 inches min). The clamp does not include surface protection and remains untreated.
