Dehn Earthing Device For Junction Box Street Lighting - 745107

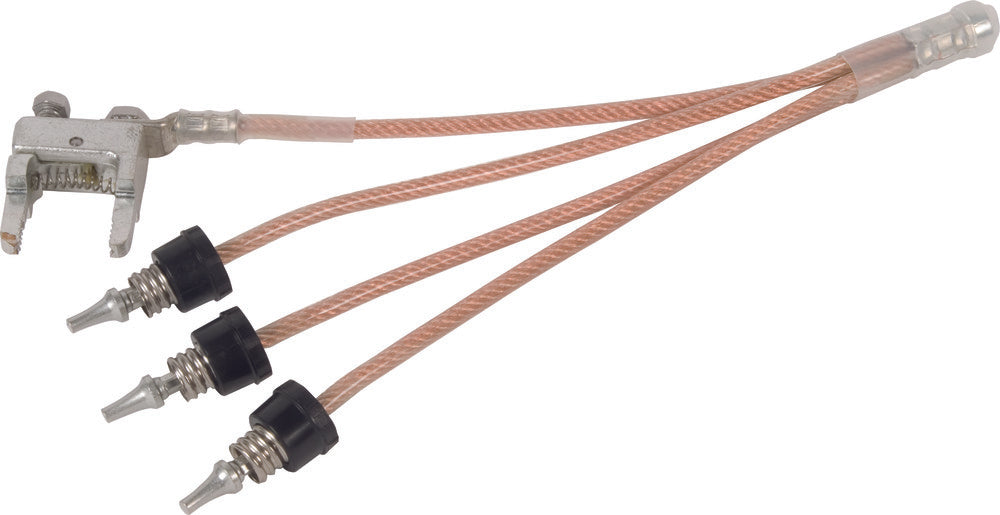

This is a copper earthing and short-circuiting device designed with a cable structure. The device features three poles, unspecified connection parts on both the earth and phase sides, and a wire cross-section of 6mm² on both the earth and phase sides. The length of the earth wire measures 240mm, whereas each of the phase wires measure 270mm in length. The device is designed to safely short-circuit street lighting systems, equipped with three fixed E14 screw-in earthing inserts and a spring-loaded earth clamp that offers a clamping range up to 24mm, fixed by a rotary handle, Part No. 745 921.
- Regular price
- $479.04
Description
This is a copper earthing and short-circuiting device designed with a cable structure. The device features three poles, unspecified connection parts on both the earth and phase sides, and a wire cross-section of 6mm² on both the earth and phase sides. The length of the earth wire measures 240mm, whereas each of the phase wires measure 270mm in length. The device is designed to safely short-circuit street lighting systems, equipped with three fixed E14 screw-in earthing inserts and a spring-loaded earth clamp that offers a clamping range up to 24mm, fixed by a rotary handle, Part No. 745 921.
