Dehn Earthing And Short-Circuiting Kit For Cable Distribution - 745901

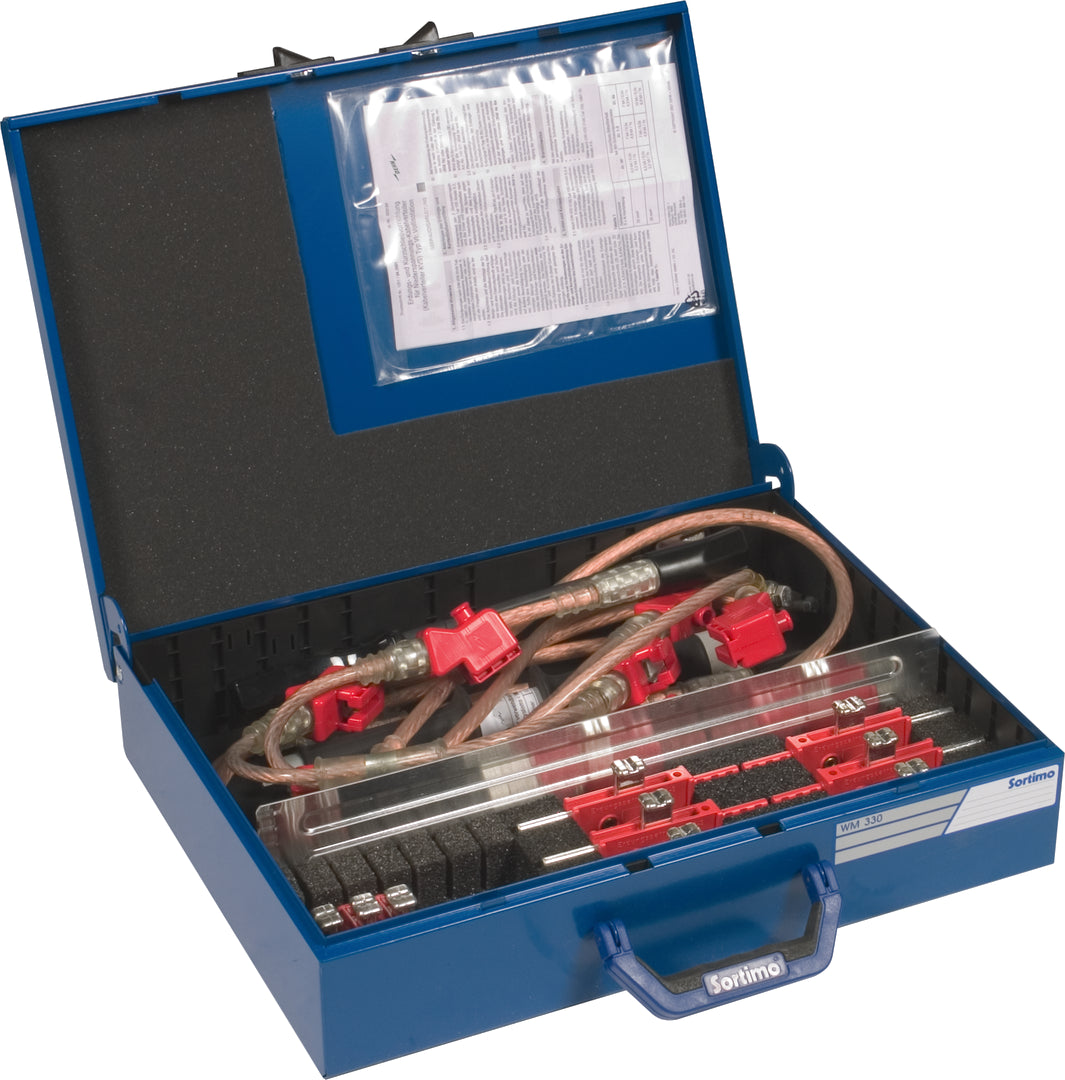

The Dehn VI is a three-pole earthing and short-circuiting device for electrical installations, compliant with EN/IEC 61230 (DIN VDE 0683-100) and EN 50110 (DIN VDE 0105-100). It is designed for the work location and is contained in a sheet metal case. It comes with a partially insulated M10 connection, suitable for low-voltage cable distribution cabinets. It uses a T-connection, with an earthing wire of 500mm and phase wires of lengths 200mm and 400mm, each with a cross-sectional area of 25mm². Other cable lengths can be configured at Dehn's website.
- Regular price
- $2,601.93 USD
Description
The Dehn VI is a three-pole earthing and short-circuiting device for electrical installations, compliant with EN/IEC 61230 (DIN VDE 0683-100) and EN 50110 (DIN VDE 0105-100). It is designed for the work location and is contained in a sheet metal case. It comes with a partially insulated M10 connection, suitable for low-voltage cable distribution cabinets. It uses a T-connection, with an earthing wire of 500mm and phase wires of lengths 200mm and 400mm, each with a cross-sectional area of 25mm². Other cable lengths can be configured at Dehn's website.
