Dehn Earthing And Short-Circuiting Kit For Cable Distribution - 745500

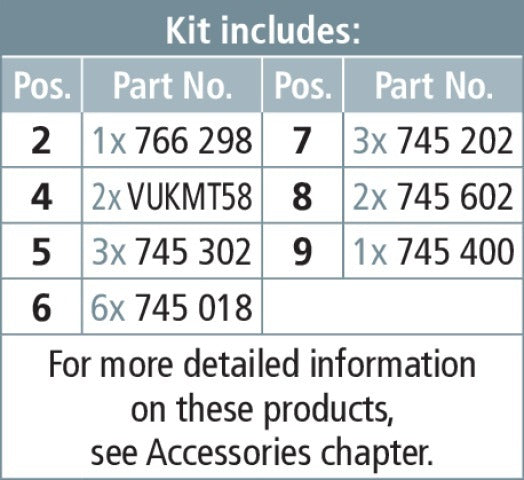

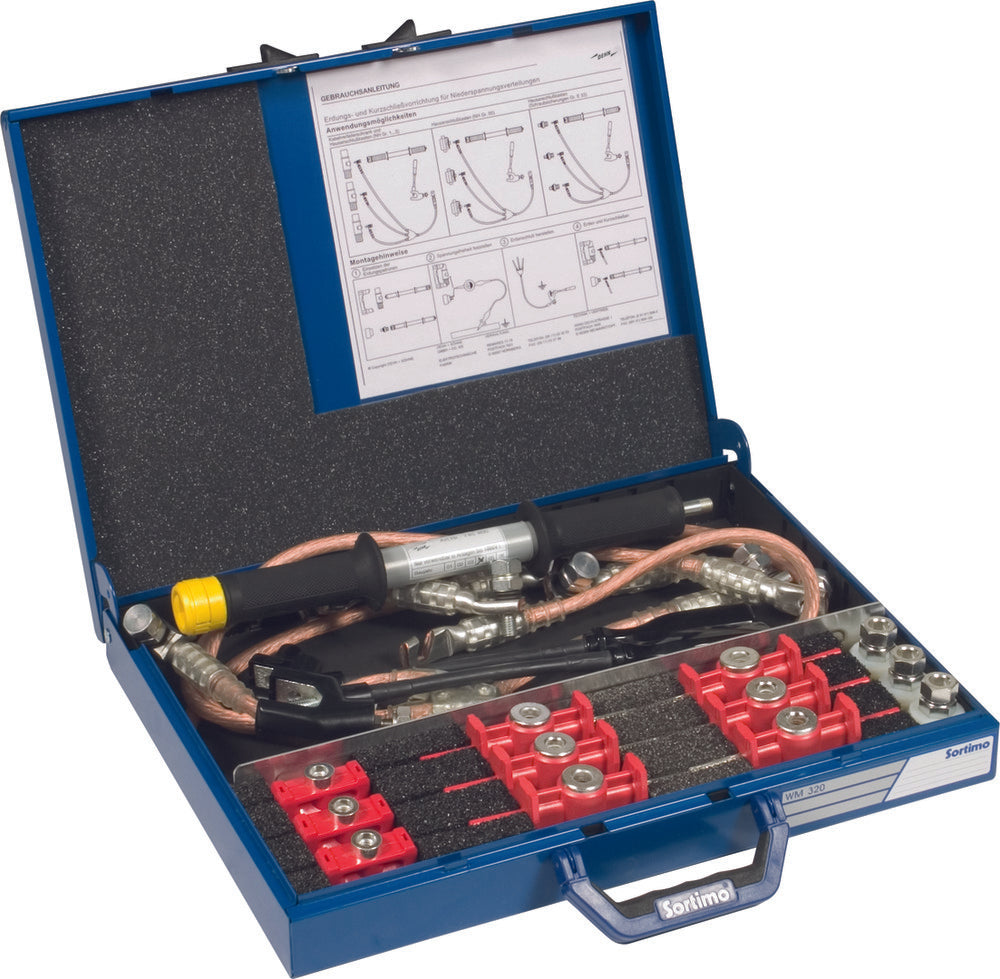

The Dehn TI is a three-pole earthing and short-circuiting kit packaged in a sheet metal case, which complies with EN/IEC 61230 (DIN VDE 0683-100). This kit is meant for earthing and short-circuiting electrical installations at the workplace as per the guidelines of EN 50110 (DIN VDE 0105-100). It features partial insulation (TI) with an M10 connection and is ideal for low-voltage cable distribution cabinets. It comes with the variant number V162LDM for the earthing and short-circuiting device. The kit includes a 25mm² earth wire of 500mm length and a 25mm² phase wire with lengths of 200mm and 400mm. Other cable lengths can be configured via the EaS configurator on Dehn's website.
- Regular price
- $2,568.02 USD
We sell only to registered businesses
Description
The Dehn TI is a three-pole earthing and short-circuiting kit packaged in a sheet metal case, which complies with EN/IEC 61230 (DIN VDE 0683-100). This kit is meant for earthing and short-circuiting electrical installations at the workplace as per the guidelines of EN 50110 (DIN VDE 0105-100). It features partial insulation (TI) with an M10 connection and is ideal for low-voltage cable distribution cabinets. It comes with the variant number V162LDM for the earthing and short-circuiting device. The kit includes a 25mm² earth wire of 500mm length and a 25mm² phase wire with lengths of 200mm and 400mm. Other cable lengths can be configured via the EaS configurator on Dehn's website.
