Dehn Earth Rod Terminal Clamp Stainless Steel For D 20mm Rd 7-10mm Fl -40mm - 610020

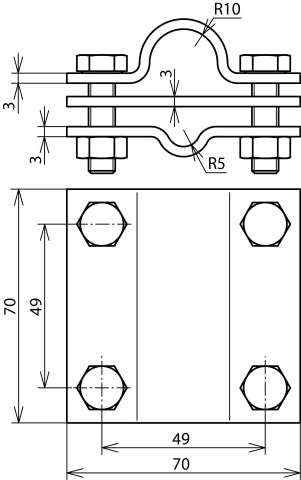

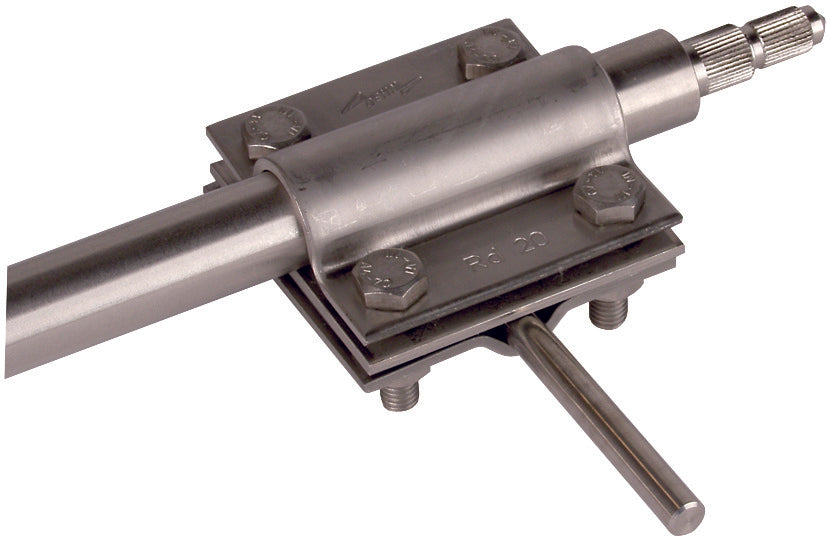

This is a Dehn connection clamp for deep grounding, made of stainless steel 316 (V4A). It is designed with a 20mm earth connection diameter and offers a clamp range of 7-10mm for round conductors, up to 40mm for flat conductors, and 35-70mm² for cables. It doesn't have any surface protection, leaving it untreated. This clamp adheres to DIN EN 62561-1 standard, making it suitable for cross and parallel connection of round conductors, flat strips, or cables to earth rods. It comes with four M8 screws and is designed for earth rods sized 20-30 mm in diameter.
- Regular price
- $33.37 USD
Description
This is a Dehn connection clamp for deep grounding, made of stainless steel 316 (V4A). It is designed with a 20mm earth connection diameter and offers a clamp range of 7-10mm for round conductors, up to 40mm for flat conductors, and 35-70mm² for cables. It doesn't have any surface protection, leaving it untreated. This clamp adheres to DIN EN 62561-1 standard, making it suitable for cross and parallel connection of round conductors, flat strips, or cables to earth rods. It comes with four M8 screws and is designed for earth rods sized 20-30 mm in diameter.
