Dehn Earth Milling Clamp For Flat Profiles 30mm With Tommy Bar - 792030

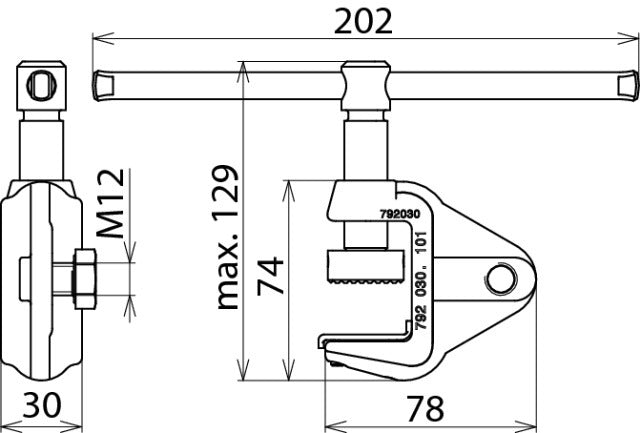

The product is an earth milling clamp with a tommy bar, serving as a connection element in compliance with EN/IEC 61230 (DIN VDE 0683-100). This clamp is designed to connect the earth cable of earthed and short-circuiting cables to flat profiles. It has a maximum short-circuit current of 14kA and is suited for wire cross sections measuring 25 to 50mm². The clamp's range extends from 1 to 30mm. The product features an anti-rotation element of type PK 1 to provide rotational stability, which is particularly advantageous when it is applied on the earth-side.
- Regular price
- $109.05 USD
Description
The product is an earth milling clamp with a tommy bar, serving as a connection element in compliance with EN/IEC 61230 (DIN VDE 0683-100). This clamp is designed to connect the earth cable of earthed and short-circuiting cables to flat profiles. It has a maximum short-circuit current of 14kA and is suited for wire cross sections measuring 25 to 50mm². The clamp's range extends from 1 to 30mm. The product features an anti-rotation element of type PK 1 to provide rotational stability, which is particularly advantageous when it is applied on the earth-side.
