Dehn Earth Electrical Wall Bushing 500-700mm With M10 Thread - 478450
Notice: This product will be discontinued in the future

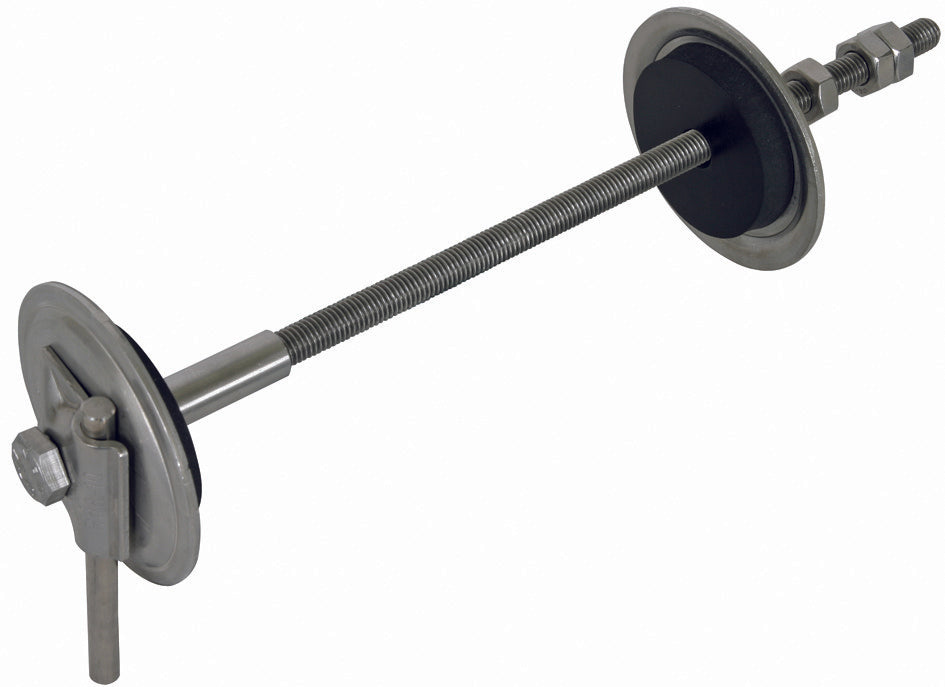

This product is a water-pressure-tight wall bushing, accompanied by a medium voltage clamp made of stainless steel (V4A). It is designed for leading earthing conductors or equipotential bonding conductors through walls and brickwork. Included is an M10 threaded rod also made of stainless steel. Installation can be done post-production through a borehole of 14 mm diameter, or alternatively, through a formwork spacer if necessary. It can withstand a pressurised water test up to 1 bar, which equates to an installation depth of 10m in stagnant water.
Notice: This product will be discontinued in the future
Description
This product is a water-pressure-tight wall bushing, accompanied by a medium voltage clamp made of stainless steel (V4A). It is designed for leading earthing conductors or equipotential bonding conductors through walls and brickwork. Included is an M10 threaded rod also made of stainless steel. Installation can be done post-production through a borehole of 14 mm diameter, or alternatively, through a formwork spacer if necessary. It can withstand a pressurised water test up to 1 bar, which equates to an installation depth of 10m in stagnant water.
