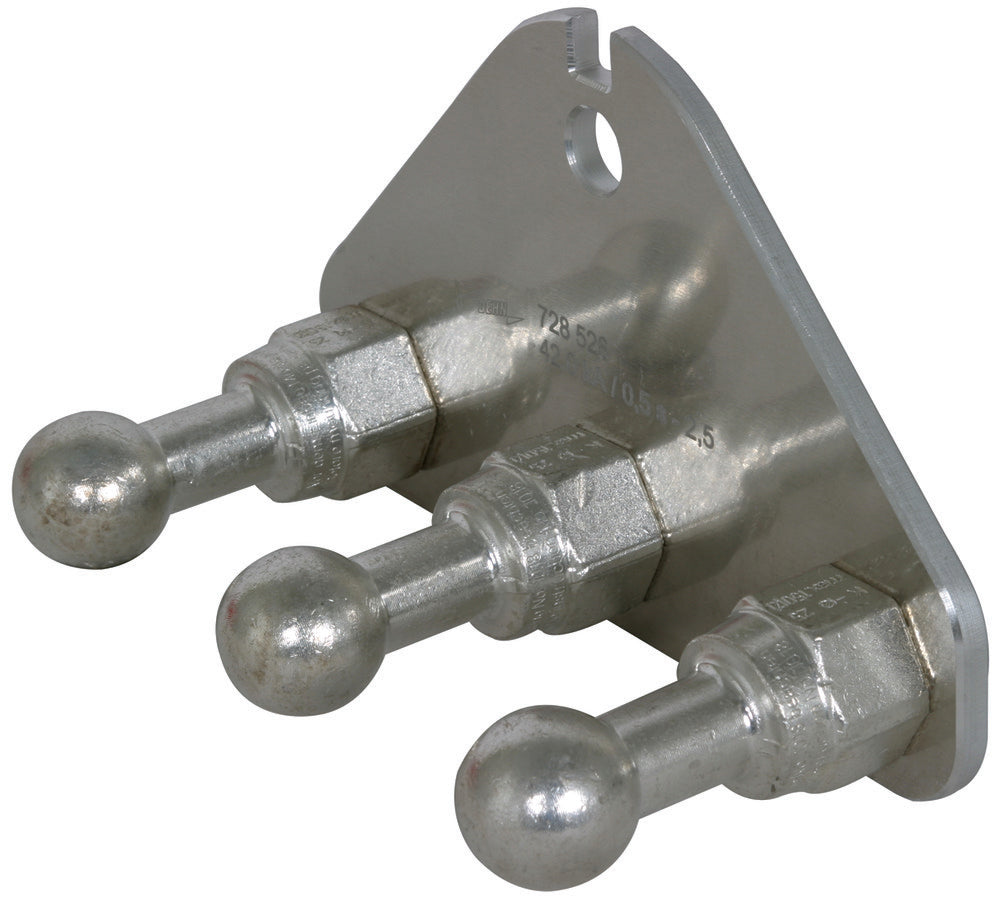

Dehn Earth Connecting Plate With 3 Fixed Ball Points - 728526

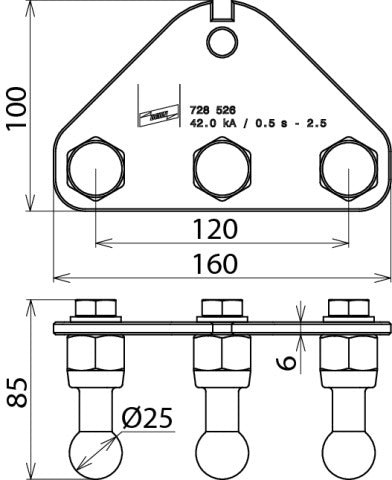

This is an earth connecting plate intended for mounting on earth connecting clamps with a PK1 anti-rotation feature. It includes three fixed ball points for usage as a connection point, compliant with EN/IEC 61230 (DIN VDE 0683-100) standards. The component facilitates easy connection of single-pole short-circuiting cables. It boasts a maximum short-circuit current capacity of 42kA. The connecting plate is designed straight, equipped with a connecting facility. The earth and ball connection point have a diameter of 25mm. The plate can manage a maximum copper wire cross-section of 150mm².
- Regular price
- $196.44
Description
This is an earth connecting plate intended for mounting on earth connecting clamps with a PK1 anti-rotation feature. It includes three fixed ball points for usage as a connection point, compliant with EN/IEC 61230 (DIN VDE 0683-100) standards. The component facilitates easy connection of single-pole short-circuiting cables. It boasts a maximum short-circuit current capacity of 42kA. The connecting plate is designed straight, equipped with a connecting facility. The earth and ball connection point have a diameter of 25mm. The plate can manage a maximum copper wire cross-section of 150mm².
