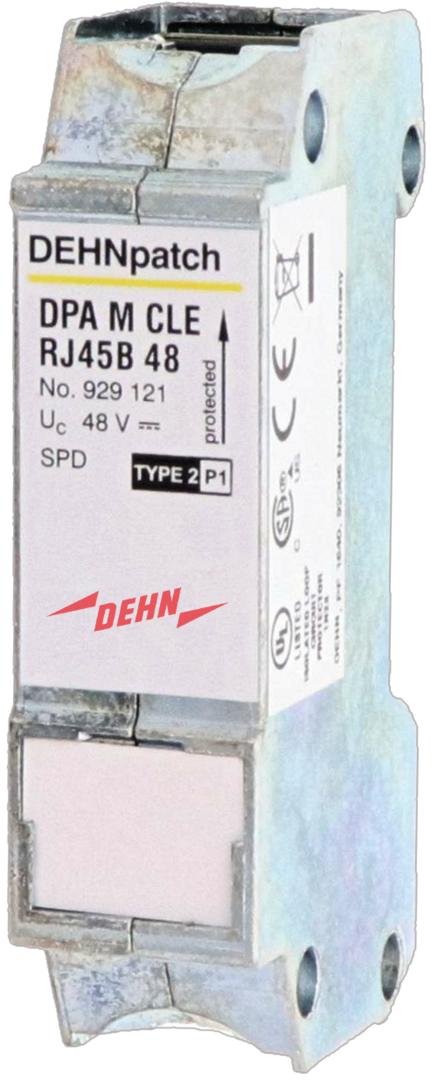

DEHN DEHNpatch Surge Protection For Data/M&R - 929121
Notice: This product will be discontinued in the future
Image may vary slightly
See specifications for accurate information.
Reference:
E2MX9
Brand:
DEHN
Mfr. Part:
929121
Dehn DEHNpatch surge protection v data/m&r, rated voltage DC 48V, DIN rail 35mm, data line RJ45 data protection type, connector 1 RJ45, limit freq
Notice: This product will be discontinued in the future
Description
Specifications
Downloads
Description
Dehn DEHNpatch surge protection v data/m&r, rated voltage DC 48V, DIN rail 35mm, data line RJ45 data protection type, connector 1 RJ45, limit frequency 250MHz, impedance 1Ohm, max continuous voltage AC 34V, max continuous voltage DC 48V, max residual voltage 0.19kV, rated load current 1A.
