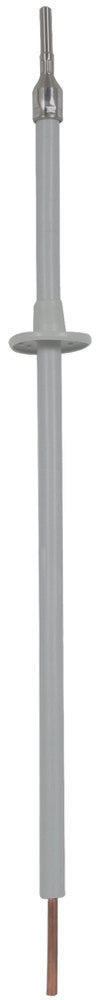

Dehn CUI Conductor 20mm Cu 8mm Prewired 3.5m Cable - 830208
This item is a Dehn round conductor for lightning protection, featuring a grey, untreated surface. The conductor section is 50mm², composed of copper material, with class 1=solid conductor composition. It is insulated with XLPE (VPE) and has a nominal conductor diameter of 8mm. The conductor consists of a single wire with a 20mm outer diameter of the insulated conductor. It is CUI Conductor compliant and helps avoid touch voltage on the down conductor as per IEC/EN 62305-3. It features an inner copper conductor (D 8 mm) and high-voltage-resistant insulation with a surge withstand capability of 100 kV (1.2/50 µs) to prevent touch voltage and creeping sparkover, even in rain. The type features a StSt connection head, with a total length of 3.5 m.
- Regular price
- $574.01 USD
We sell only to registered businesses
Description
This item is a Dehn round conductor for lightning protection, featuring a grey, untreated surface. The conductor section is 50mm², composed of copper material, with class 1=solid conductor composition. It is insulated with XLPE (VPE) and has a nominal conductor diameter of 8mm. The conductor consists of a single wire with a 20mm outer diameter of the insulated conductor. It is CUI Conductor compliant and helps avoid touch voltage on the down conductor as per IEC/EN 62305-3. It features an inner copper conductor (D 8 mm) and high-voltage-resistant insulation with a surge withstand capability of 100 kV (1.2/50 µs) to prevent touch voltage and creeping sparkover, even in rain. The type features a StSt connection head, with a total length of 3.5 m.
