Dehn Cross Unit StSt V4A For FL 30/30mm Dimension 60x60mm - 318233
Notice: This product will be discontinued in the future

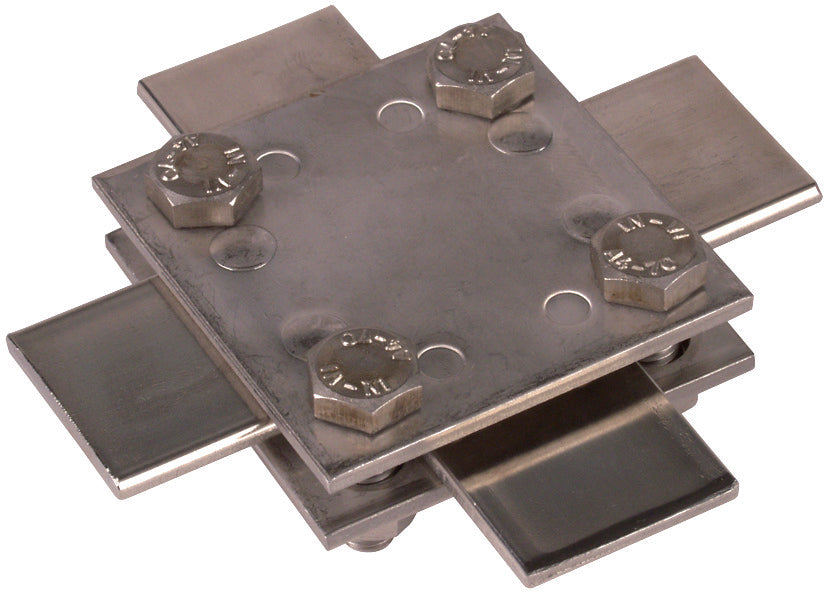

This is a Dehn connector suitable for lightning protection, composed of stainless steel (RVS 316/V4A). This cross coupling unit conforms to EN 62561-1 and is designed for connecting two flat conductors both aboveground and underground. The diameter of the flat conductor 1 and 2 are of 30mm each. The surface protection is bare (untreated) and the type of fastening screws is a hexagonal screw. It does not have an intermediate plate and comes with M8 screws. The lightning current carrying capacity is 100kA for 10/350 µs.
Notice: This product will be discontinued in the future
Description
This is a Dehn connector suitable for lightning protection, composed of stainless steel (RVS 316/V4A). This cross coupling unit conforms to EN 62561-1 and is designed for connecting two flat conductors both aboveground and underground. The diameter of the flat conductor 1 and 2 are of 30mm each. The surface protection is bare (untreated) and the type of fastening screws is a hexagonal screw. It does not have an intermediate plate and comes with M8 screws. The lightning current carrying capacity is 100kA for 10/350 µs.
