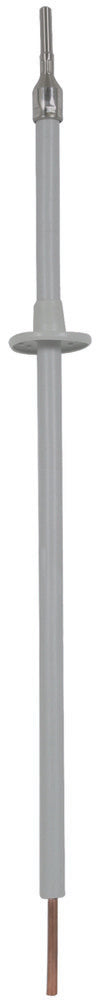

Dehn Copper Conductor 20mm 8mm Prewired 5m - 830218
The Dehn round conductor is designed for lightning protection, with an untreated surface, 50mm² conductor cross-section, and is made of copper. It features a class 1 conductor composition, which means it is solid. Encased in XLPE (VPE), it has a nominal conductor diameter of 8mm and includes one wire. The outside diameter of the insulated conductor is 20mm. It functions as a CUI conductor to prevent touch voltage on the down conductor, adhering to IEC/EN 62305-3 standards. The conductor has an inner copper conductor with a diameter of 8mm and high-voltage-resistant insulation resistant up to 100 kV (1.2/50 µs) to prevent touch voltage and sparking over during rainfall. This type comes with a stainless steel connection head and has a length of 5 meters.
- Regular price
- $660.05 USD
We sell only to registered businesses
Description
The Dehn round conductor is designed for lightning protection, with an untreated surface, 50mm² conductor cross-section, and is made of copper. It features a class 1 conductor composition, which means it is solid. Encased in XLPE (VPE), it has a nominal conductor diameter of 8mm and includes one wire. The outside diameter of the insulated conductor is 20mm. It functions as a CUI conductor to prevent touch voltage on the down conductor, adhering to IEC/EN 62305-3 standards. The conductor has an inner copper conductor with a diameter of 8mm and high-voltage-resistant insulation resistant up to 100 kV (1.2/50 µs) to prevent touch voltage and sparking over during rainfall. This type comes with a stainless steel connection head and has a length of 5 meters.
