Reference: E3NJJ-X100
Brand: DEHN
Mfr. Part: 540261

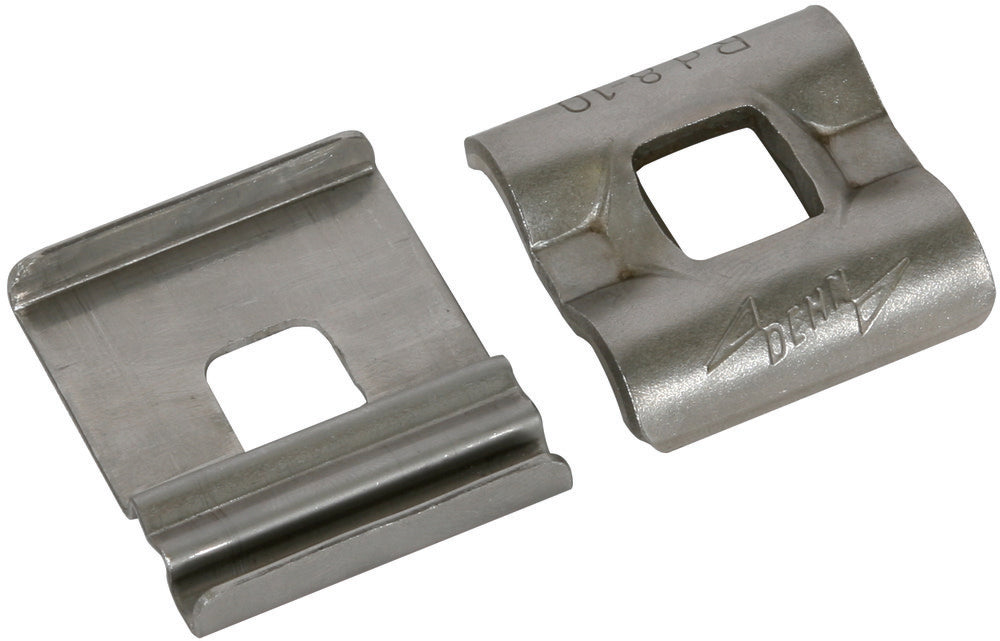

The Dehn earth clamp, made of stainless steel, is ideal for integrating mounting systems, such as PV installations, in the functional equipotential bonding/earthing. It conforms to DIN EN 62305-3 (VDE 0185-305-3) for lightning equipotential bonding. The contact plate allows for connecting different conductor materials (Cu, Al, St/tZn, and StSt) to mounting systems, including aluminum, without risking corrosion. The design excludes M10 screws and is suitable for combination with other screw systems. It comes with a double clamp for profile feed-through wiring.

Contains 100 pieces

View all
Note: product cannot be returned
$623.70
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Dehn earth clamp, made of stainless steel, is ideal for integrating mounting systems, such as PV installations, in the functional equipotential bonding/earthing. It conforms to DIN EN 62305-3 (VDE 0185-305-3) for lightning equipotential bonding. The contact plate allows for connecting different conductor materials (Cu, Al, St/tZn, and StSt) to mounting systems, including aluminum, without risking corrosion. The design excludes M10 screws and is suitable for combination with other screw systems. It comes with a double clamp for profile feed-through wiring.

Contains 100 pieces

Downloads

Specifications

Suitable for
Round conductor
Connection cross section (mm²)
4 mm² to 50 mm²
Clamping range round conductor (mm)
8 mm to 10 mm
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel
Surface protection
The type of surface protection of the component.
Untreated
