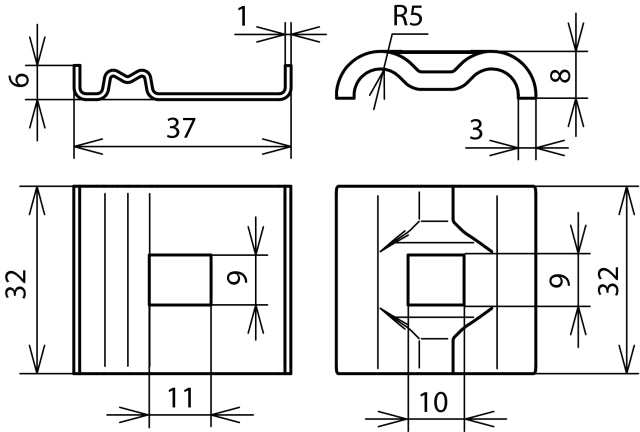

Dehn Contact Plate Double Cleat 4-50mm Rd 8-10mm Sq Hole 9x9mm - 540251 [2 pieces]

Dehn Contact Plate Double Cleat 4-50mm Rd 8-10mm Sq Hole 9x9mm - 540251 [2 pieces]
Dehn Contact Plate Double Cleat 4-50mm Rd 8-10mm Sq Hole 9x9mm - 540251 [2 pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3NJH-X2
Brand: DEHN
Mfr. Part: 540251

The Dehn earth clamp is made of stainless steel and suitable for connecting earth electrodes with a cross section of 4 - 50mm² and a round conductor clamping range of 8 - 10mm. It is ideal for integration in mounting systems such as PV installations for functional equipotential bonding/earthing and lightning equipotential bonding as per DIN EN 62305-3. With its contact plate, it enables the connection of different conductor materials like copper, aluminum and stainless steel to normal mounting systems without the risk of contact corrosion. It is designed without an M8 screw and is compatible with other screw systems. Its double clamp feature can be useful for feed-through wiring of profiles. Please note, it lacks surface protection.

Contains 2 pieces

View all
Note: product cannot be returned
Regular price
$9.70
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Description
Specifications
Downloads

The Dehn earth clamp is made of stainless steel and suitable for connecting earth electrodes with a cross section of 4 - 50mm² and a round conductor clamping range of 8 - 10mm. It is ideal for integration in mounting systems such as PV installations for functional equipotential bonding/earthing and lightning equipotential bonding as per DIN EN 62305-3. With its contact plate, it enables the connection of different conductor materials like copper, aluminum and stainless steel to normal mounting systems without the risk of contact corrosion. It is designed without an M8 screw and is compatible with other screw systems. Its double clamp feature can be useful for feed-through wiring of profiles. Please note, it lacks surface protection.
