Dehn Connection Clamp For Tubular Earth Rod St Tzn D 27mm - 640015

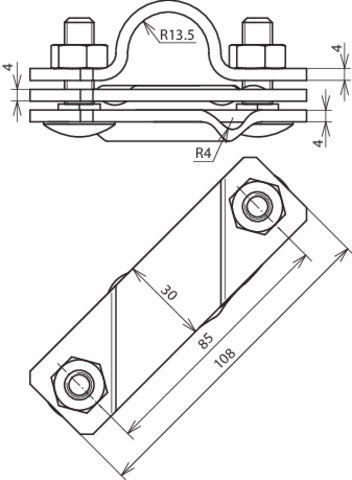

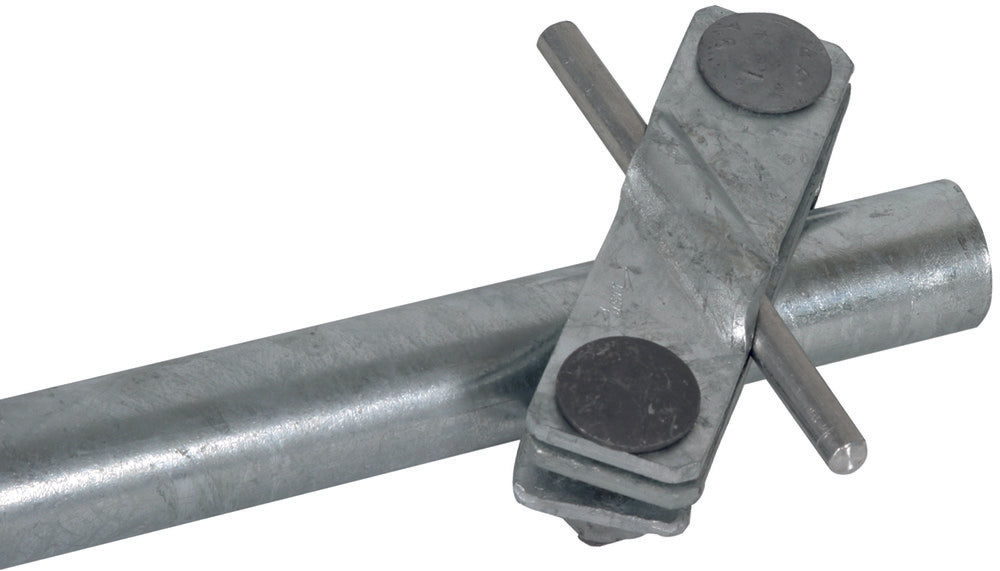

This is a steel connection bracket, adhering to EN 62561-1 standards, which is used to link round conductors, cables, and flat strips to earth rods. It has a unique diagonal design with a truss head screw, making it particularly suitable for tubular steel earth rods, as well as uncut earth conductors. It features a diameter of earth connection of 27mm and a clamping range for round conductors between 7mm to 10mm. For flat conductors, the clamp width can reach up to 40mm. The surface is thermally galvanized for added protection.
- Regular price
- $13.85 USD
Description
This is a steel connection bracket, adhering to EN 62561-1 standards, which is used to link round conductors, cables, and flat strips to earth rods. It has a unique diagonal design with a truss head screw, making it particularly suitable for tubular steel earth rods, as well as uncut earth conductors. It features a diameter of earth connection of 27mm and a clamping range for round conductors between 7mm to 10mm. For flat conductors, the clamp width can reach up to 40mm. The surface is thermally galvanized for added protection.
