Dehn Connecting Clamp St/Tzn For Cross And Parallel Connection - 308120 [2 pieces]

Dehn Connecting Clamp St/Tzn For Cross And Parallel Connection - 308120 [2 pieces]
Dehn Connecting Clamp St/Tzn For Cross And Parallel Connection - 308120 [2 pieces]
Dehn Connecting Clamp St/Tzn For Cross And Parallel Connection - 308120 [2 pieces]
Dehn Connecting Clamp St/Tzn For Cross And Parallel Connection - 308120 [2 pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3NZ7-X2
Brand: DEHN
Mfr. Part: 308120

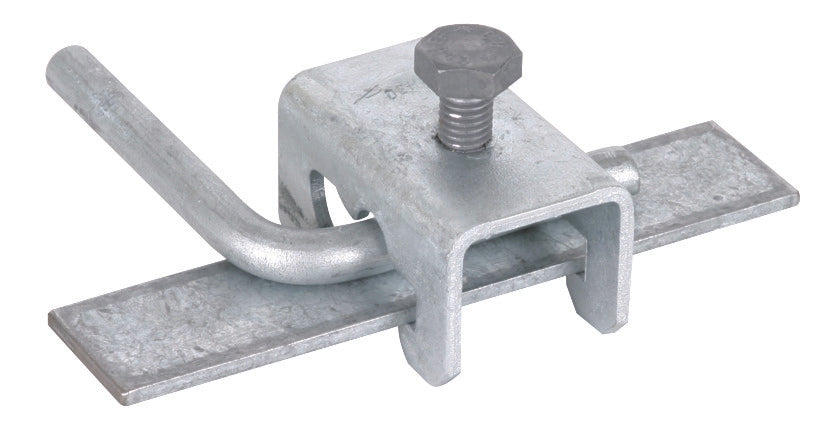

This is a Dehn connector for lightning protection, made from steel. It connects using a T, cross, or parallel plug connection and is compliant with EN 62561-1. The connector can be used to join round conductors up to 10mm in diameter and flat conductors up to 30mm in width. This connector features a single-screw design, making it easy to set up without necessitating the insertion of the conductor. Its surface is thermally galvanized for protection. It includes hexagonal screws for mounting.

Contains 2 pieces

View all
Note: product cannot be returned
$7.23
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a Dehn connector for lightning protection, made from steel. It connects using a T, cross, or parallel plug connection and is compliant with EN 62561-1. The connector can be used to join round conductors up to 10mm in diameter and flat conductors up to 30mm in width. This connector features a single-screw design, making it easy to set up without necessitating the insertion of the conductor. Its surface is thermally galvanized for protection. It includes hexagonal screws for mounting.

Downloads

Product datasheet (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Type of connector
T-/cross-/parallel connector
Diameter round conductor 1 (mm)
10 mm to 10 mm
Width flat conductor 1 (mm)
30 mm to 30 mm
Width flat conductor 2 (mm)
30 mm to 30 mm
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Surface protection
The type of surface protection of the component.
Hot-dip galvanized
Type of fastening screws
Hexagon screw
