Dehn Conductor Holder With Flange And Screw For 30mm Cable - 275230

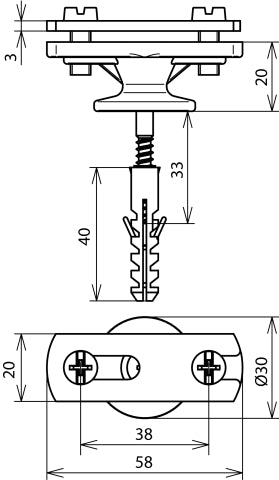

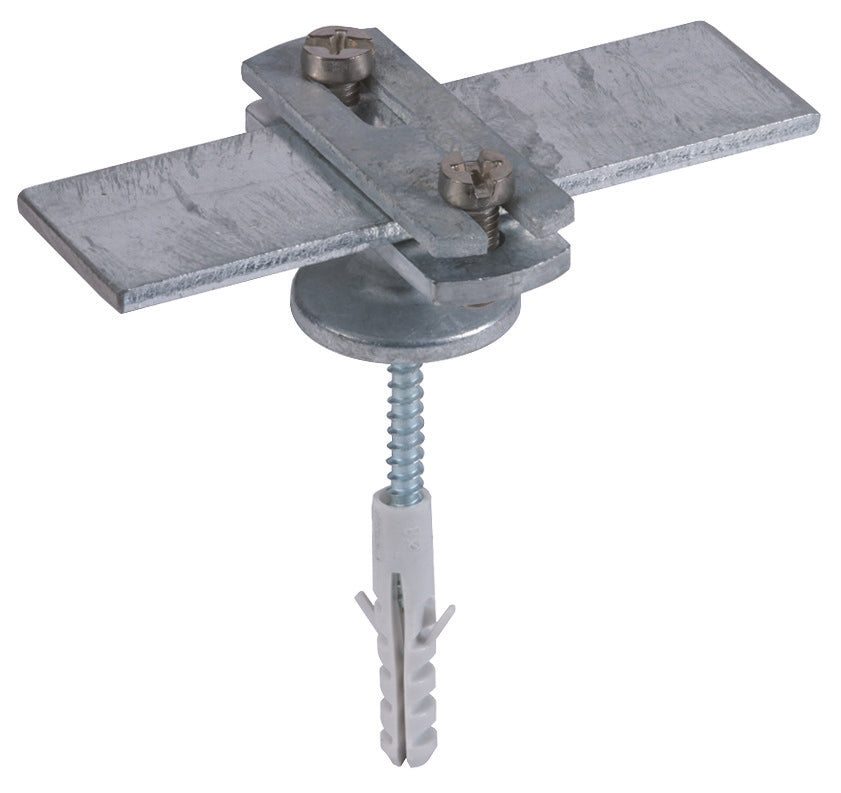

This is a Dehn flat strip holder for lightning protection purposes, equipped with a slotted clamping plate and flange for securing flat conductors. The strip holder comes pre-assembled with a screw and plug, facilitating a fixed conductor routing method. Its construction features a conductor attachment method via screw clamp and a holder attachment method via plug. The strip holder has a building height of 20mm and is suitable for flat conductors up to 30mm in width. The base part is cast in pressure cast zinc, with both the carrier and holder made of steel. Additional features include a metric thread size of 8 and a hot-dip galvanized or zinc finish for enhanced durability.
- Regular price
- $6.71
Description
This is a Dehn flat strip holder for lightning protection purposes, equipped with a slotted clamping plate and flange for securing flat conductors. The strip holder comes pre-assembled with a screw and plug, facilitating a fixed conductor routing method. Its construction features a conductor attachment method via screw clamp and a holder attachment method via plug. The strip holder has a building height of 20mm and is suitable for flat conductors up to 30mm in width. The base part is cast in pressure cast zinc, with both the carrier and holder made of steel. Additional features include a metric thread size of 8 and a hot-dip galvanized or zinc finish for enhanced durability.
