Dehn Clamping Frame Rd 6-10mm With Truss Head Screw And M10 Nut - 390150 [2 pieces]

Dehn Clamping Frame Rd 6-10mm With Truss Head Screw And M10 Nut - 390150 [2 pieces]
Dehn Clamping Frame Rd 6-10mm With Truss Head Screw And M10 Nut - 390150 [2 pieces]
Dehn Clamping Frame Rd 6-10mm With Truss Head Screw And M10 Nut - 390150 [2 pieces]
Dehn Clamping Frame Rd 6-10mm With Truss Head Screw And M10 Nut - 390150 [2 pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3P82-X2
Brand: DEHN
Mfr. Part: 390150

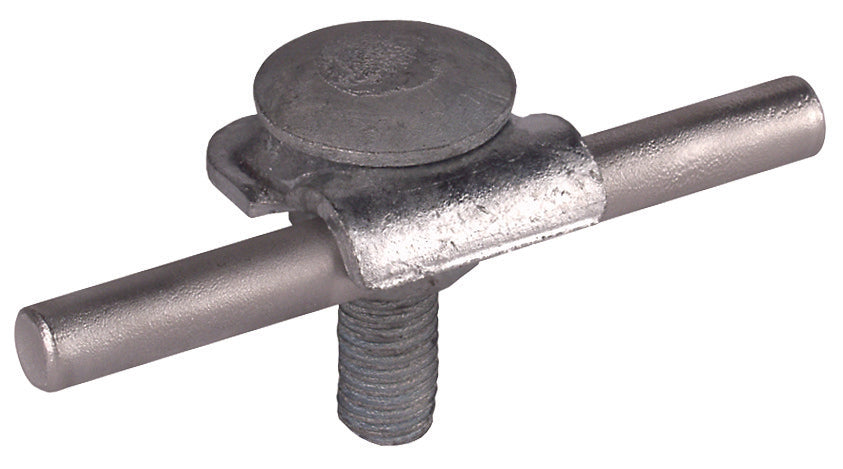

This is a Dehn connector for lightning protection, made of steel with a clamp connection type. It is suitable for round conductors with a diameter ranging from 1.6 to 10mm. The connector comes with thermally galvanized surface protection, enhancing its durability. The fixing screws are of flat head type. The lightning current carrying capacity of the connector is 10/350 µs 50kA. In addition, this clamping piece variant complies with EN 62561-1 standards and can be used as a connection with an end piece for structures or downpipe clamps. It is equipped with an 11mm square hole and a truss head screw.

Contains 2 pieces

View all
Note: product cannot be returned
$4.94
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a Dehn connector for lightning protection, made of steel with a clamp connection type. It is suitable for round conductors with a diameter ranging from 1.6 to 10mm. The connector comes with thermally galvanized surface protection, enhancing its durability. The fixing screws are of flat head type. The lightning current carrying capacity of the connector is 10/350 µs 50kA. In addition, this clamping piece variant complies with EN 62561-1 standards and can be used as a connection with an end piece for structures or downpipe clamps. It is equipped with an 11mm square hole and a truss head screw.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Type of connector
Clamp connector
Diameter round conductor 1 (mm)
6 mm to 10 mm
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Steel
Surface protection
The type of surface protection of the component.
Hot-dip galvanized
Type of fastening screws
Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA)
50
