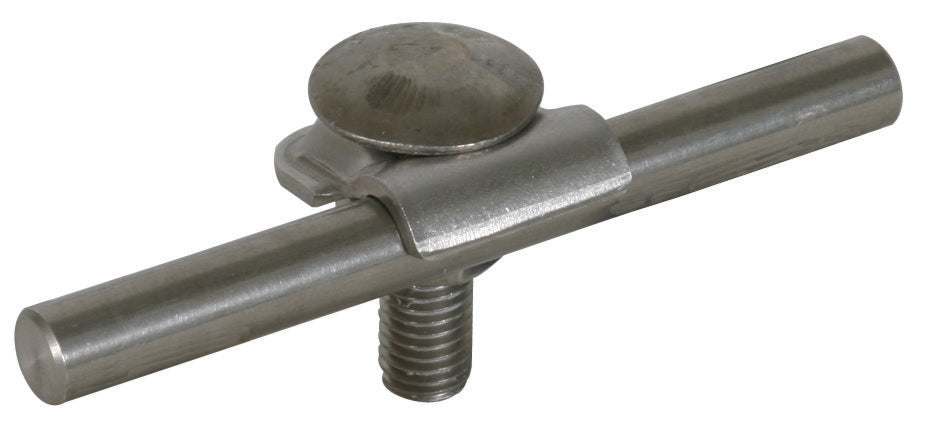

Dehn Clamping Frame Rd 6-10mm StSt With Truss Head Screw And M10 Nut - 390159 [2 pieces]

Dehn Clamping Frame Rd 6-10mm StSt With Truss Head Screw And M10 Nut - 390159 [2 pieces]
Dehn Clamping Frame Rd 6-10mm StSt With Truss Head Screw And M10 Nut - 390159 [2 pieces]
Dehn Clamping Frame Rd 6-10mm StSt With Truss Head Screw And M10 Nut - 390159 [2 pieces]
Dehn Clamping Frame Rd 6-10mm StSt With Truss Head Screw And M10 Nut - 390159 [2 pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3P83-X2
Brand: DEHN
Mfr. Part: 390159

This is a Dehn connector for lightning protection made from stainless steel 304 (V2A). It employs a clamp connection type and is compatible with a round conductor diameter of 1.6 - 10mm. The surface of the connector is unprotected (untreated). The connector utilizes flat head screws for fastening. It has a lightning current carrying capacity of 10/350 µs 50kA. This connector also features several clamping piece variants in accordance with EN 62561-1. For instance, it can be used as a connection with an end piece for constructions or downpipe clamps. It comes equipped with an 11mm square hole and a truss head screw.

Contains 2 pieces

View all
Note: product cannot be returned
$10.39
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a Dehn connector for lightning protection made from stainless steel 304 (V2A). It employs a clamp connection type and is compatible with a round conductor diameter of 1.6 - 10mm. The surface of the connector is unprotected (untreated). The connector utilizes flat head screws for fastening. It has a lightning current carrying capacity of 10/350 µs 50kA. This connector also features several clamping piece variants in accordance with EN 62561-1. For instance, it can be used as a connection with an end piece for constructions or downpipe clamps. It comes equipped with an 11mm square hole and a truss head screw.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Type of connector
Clamp connector
Diameter round conductor 1 (mm)
6 mm to 10 mm
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Stainless steel V2A
Surface protection
The type of surface protection of the component.
Untreated
Type of fastening screws
Flat round screw
Lightning current load-bearing capacity (10/350 µs) (kA)
50
