Dehn Blue Clamp With Insulated Handle For Conductor Bars - 771231

Dehn Blue Clamp With Insulated Handle For Conductor Bars - 771231
Image may vary slightly
See specifications for accurate information.
Reference: E3QVW
Brand: DEHN
Mfr. Part: 771231

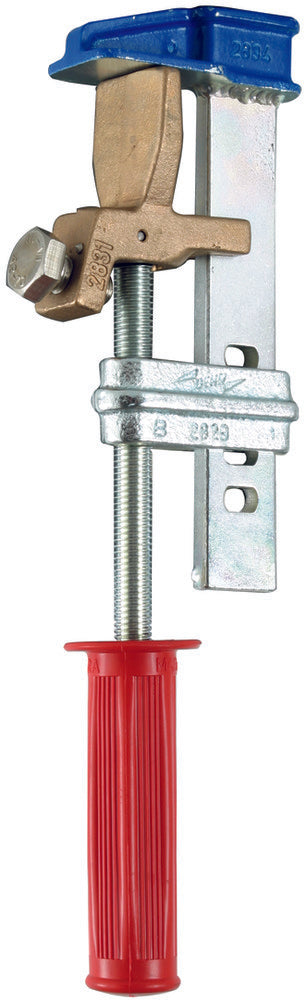

This is a Dehn connection element, furnished with an earth or short circuit provision. It is capable of handling a maximum short circuit current of up to 14kA and is suitable for wire cross-sections of 25-50mm². The clamping range is 0-55mm, utilizing a threaded bolt as its connection method. The component possesses rotation protection and is to be applied on the earth side. Additionally, it is a clamp with an M12 bolt and has a red-insulated handle designed for insulated conductor bars. A distinguishing blue marking is indicated for the connection to the PEN conductor.

View all
Note: product cannot be returned
Regular price
$328.34
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Description
Specifications
Downloads

This is a Dehn connection element, furnished with an earth or short circuit provision. It is capable of handling a maximum short circuit current of up to 14kA and is suitable for wire cross-sections of 25-50mm². The clamping range is 0-55mm, utilizing a threaded bolt as its connection method. The component possesses rotation protection and is to be applied on the earth side. Additionally, it is a clamp with an M12 bolt and has a red-insulated handle designed for insulated conductor bars. A distinguishing blue marking is indicated for the connection to the PEN conductor.
