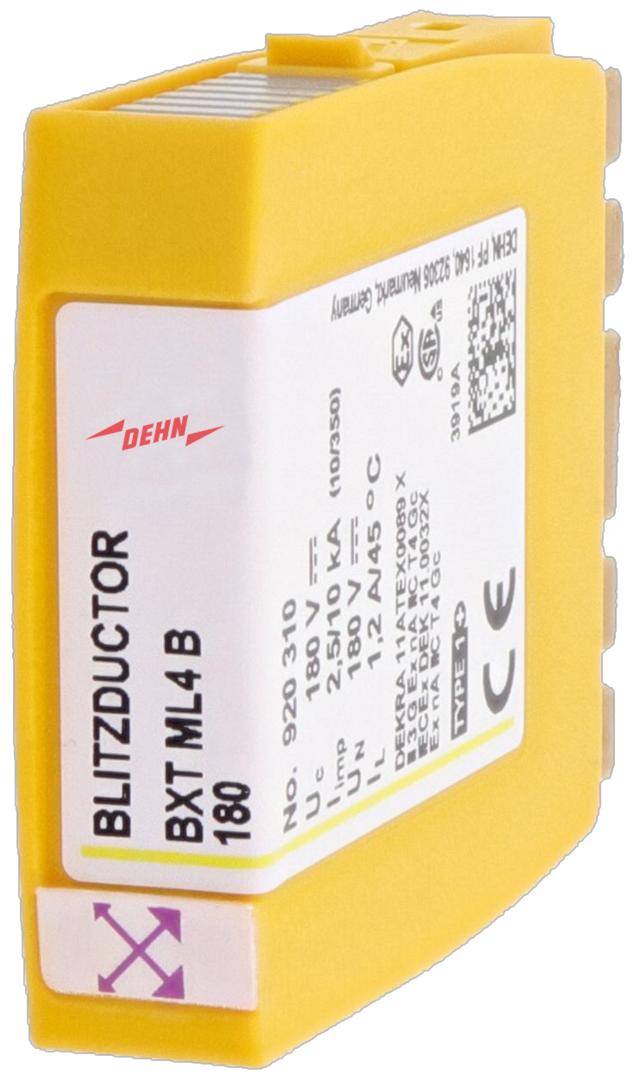

Dehn Blitzductor XT 4-Pole Lightning Current Arrester Module 180V - 920310
The Dehn BLITZDUCTOR XT is a space-saving, four-pole lightning current arrester module designed for a broad range of applications and equipped with a LifeCheck feature. It can be used with downstream -Type2P1 surge arresters or combined lightning current and operates at a nominal DC and AC voltage of 180V. It has a connection of 1 clamp, a maximum continuous AC voltage of 127V, and a maximum DC voltage of 180V. It can handle a nominal discharge surge current (8/20) of 20kA, and a safety level wire/earth of 550V. If LifeCheck detects thermal or electrical overload, the arrester must be replaced, and this status is contactlessly indicated by the DEHNrecord LC / SCM / MCM reader.
- Regular price
- $150.77 USD
We sell only to registered businesses
Description
The Dehn BLITZDUCTOR XT is a space-saving, four-pole lightning current arrester module designed for a broad range of applications and equipped with a LifeCheck feature. It can be used with downstream -Type2P1 surge arresters or combined lightning current and operates at a nominal DC and AC voltage of 180V. It has a connection of 1 clamp, a maximum continuous AC voltage of 127V, and a maximum DC voltage of 180V. It can handle a nominal discharge surge current (8/20) of 20kA, and a safety level wire/earth of 550V. If LifeCheck detects thermal or electrical overload, the arrester must be replaced, and this status is contactlessly indicated by the DEHNrecord LC / SCM / MCM reader.
