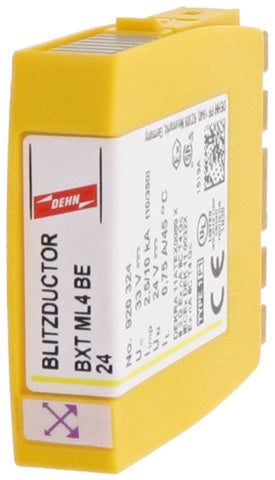

DEHN BLITZDUCTOR Surge Protector For Data/M&R - 920324

DEHN BLITZDUCTOR Surge Protector For Data/M&R - 920324
DEHN BLITZDUCTOR Surge Protector For Data/M&R - 920324
DEHN BLITZDUCTOR Surge Protector For Data/M&R - 920324
DEHN BLITZDUCTOR Surge Protector For Data/M&R - 920324
DEHN BLITZDUCTOR Surge Protector For Data/M&R - 920324
DEHN BLITZDUCTOR Surge Protector For Data/M&R - 920324
Image may vary slightly
See specifications for accurate information.
Reference: E2JH9
Brand: DEHN
Mfr. Part: 920324
Dehn BLITZDUCTOR XT surge protector v data/m&r, rated voltage DC 33V, DIN/G-rail, rated voltage AC 24V, connection 1 terminal, max. Continuous vol
View all
Note: product cannot be returned
$242.25
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

Dehn BLITZDUCTOR XT surge protector v data/m&r, rated voltage DC 33V, DIN/G-rail, rated voltage AC 24V, connection 1 terminal, max. Continuous voltage AC 23.3V, max. Continuous voltage DC 33V, rated discharge surge current (8/20) 20kA, safety level conductor/earth 66V.

Downloads

Product datasheet (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Nominal voltage AC (V)
24 V to 24 V
Nominal voltage DC (V)
33 V to 33 V
Max. continuous voltage AC (V)
23.3
Max. continuous voltage DC (V)
33
Nominal discharge surge current (8/20) (kA)
20
Voltage protection level core/core (V)
102
Voltage protection level core/earth (V)
66
Mounting method
DIN rail (top hat rail)/G-rail TH35/G32
