Dehn Ball Head Cap 16-120mm D20mm KKH 20 SQL Accessories - 772314

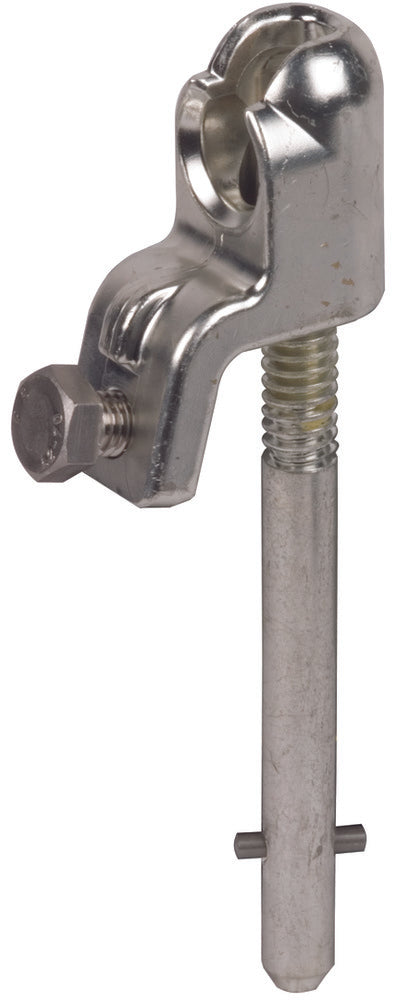

This is a rigid ball head cap with a long T pin shaft, specifically designed for use as either a phase or earth connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100). This item is suitable for fixed ball points intended for the purpose of connecting phase cables of earthing and short-circuiting devices. It can handle a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 - 120mm². The connection method involves a solid ball-point with a 20mm diameter. Other noteworthy features include an anti-rotation element, identified as PK1, and a spindle-mounted operating rod secured with a cross pin.
- Regular price
- $113.86 USD
We sell only to registered businesses
Description
This is a rigid ball head cap with a long T pin shaft, specifically designed for use as either a phase or earth connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100). This item is suitable for fixed ball points intended for the purpose of connecting phase cables of earthing and short-circuiting devices. It can handle a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 - 120mm². The connection method involves a solid ball-point with a 20mm diameter. Other noteworthy features include an anti-rotation element, identified as PK1, and a spindle-mounted operating rod secured with a cross pin.
