Image may vary slightly
See specifications for accurate information.
Reference: P2AZF
Brand: Tameson

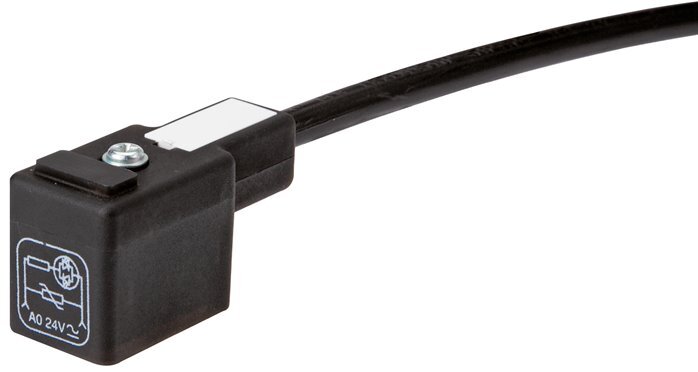

This is a connection line with a DIN-BI (11mm) plug with a LED. It has 10 m 2-wires cable.

View all
$78.98
excl VAT
In stock +2 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 10 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 4 - 5 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This is a connection line with a DIN-BI (11mm) plug with a LED. It has 10 m 2-wires cable.

Downloads

Specifications

Electrical connection
DIN-BI (11mm)
Voltage
Choose the voltage required to operate the valve. AC stands for alternating current, DC for direct current.
24 V AC, 24 V DC
Nominal cross section conductor (mm²)
0.75
Cable length (m)
The lenght of the cable that comes with the valve.
10
Number of cores
2
Material core insulation
Polyvinyl chloride (PVC)
Cable feature
LED
Core identification according to HD 308 S2
No
UV resistant
No
Longitudinal water blocking cable
No
Radial water blocking cable
No
Suitable for underground installation
No
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP67
Halogen free (according to IEC 60754-2)
No
Low smoke (according to IEC 61034-2)
No
Oil resistant (according to EN 60811-404)
No
Certified for shipboard application
No
Suitable as telephone cable
No
Suitable as computer data cable
No
Suitable as signalling cable
No
Nominal current (A)
5
Temperature (°C)
-25 °C to 70 °C
