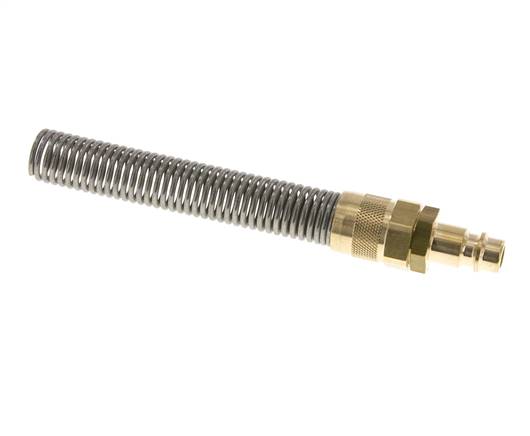

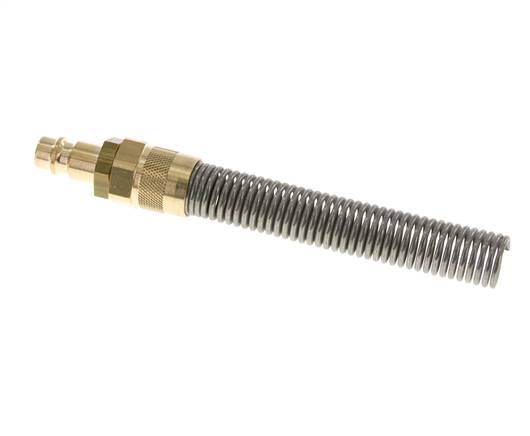

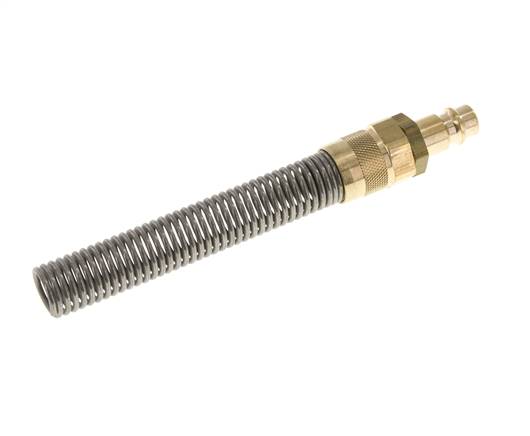

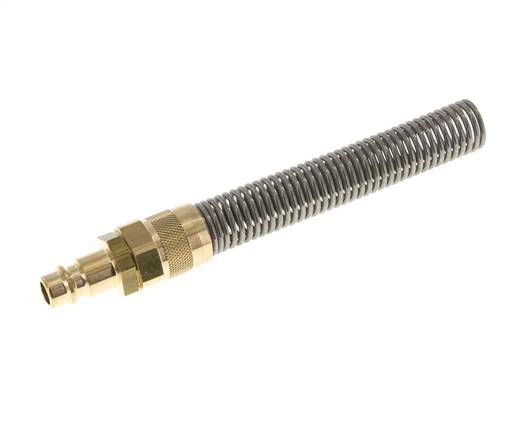

Brass DN 7.2 (Euro) Air Coupling Plug 6x8 mm Union Nut Bend-Protect with Check Valve

Brass DN 7.2 (Euro) air coupling plug with a union nut for 6x8 mm hoses. It has bend protection. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.

The plug has a check valve to allow air flow only in one direction. The plug features a bend protection spring for extra protection. The operating pressure range is 0.5 to 10 bar. This DN 7.2 mm has a Euro profile and is popular within Europe.

This product is compatible with: Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E ... 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.

Pros:

• Compatible with a wide range of air couplings with the same standard profile design.
• The added check valve functionality is ideal for only allowing one-directional flow.
• The plug features a bend protection spring for extra protection.

Cons:

• Not suitable for vacuum applications.

CLP7-NP-CV series

Our air coupler offering ranges from DN 2.7 - 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.
