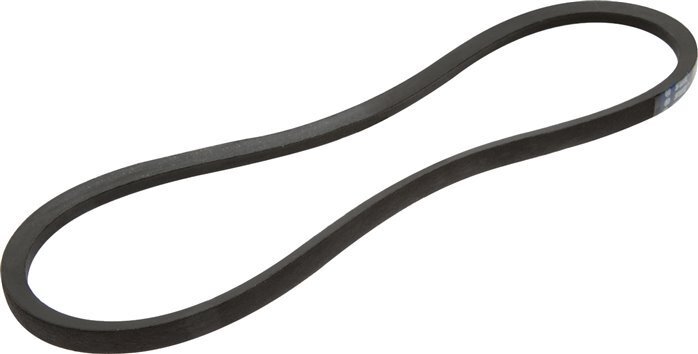

Classic Imperial V-belt C307 22x14 Li-7800mm Ld-7858mm DIN 2215

Classic Imperial V-belt C307 22x14 Li-7800mm Ld-7858mm DIN 2215
Classic Imperial V-belt C307 22x14 Li-7800mm Ld-7858mm DIN 2215
Classic Imperial V-belt C307 22x14 Li-7800mm Ld-7858mm DIN 2215
Classic Imperial V-belt C307 22x14 Li-7800mm Ld-7858mm DIN 2215
Classic Imperial V-belt C307 22x14 Li-7800mm Ld-7858mm DIN 2215
Classic Imperial V-belt C307 22x14 Li-7800mm Ld-7858mm DIN 2215
Image may vary slightly
See specifications for accurate information.
Reference: W245C
Brand: Tameson

View our range of imperial standard V-belts for single-groove pulleys. These belts can also be used side-by-side in drives designed to accommodate multiple single belts. They are easy to install and remove and require little maintenance. These V-belts are commonly used in industrial, automotive, and commercial applications to transfer power from motors to equipment.

View all
$217.45
excl VAT
In stock +0 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 0 days. Up to 1000 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 2 - 3 business days

Customers rate us: 4.98 / 5

501 reviews at TrustedShops

Description
Specifications
Downloads

Description

View our range of imperial standard V-belts for single-groove pulleys. These belts can also be used side-by-side in drives designed to accommodate multiple single belts. They are easy to install and remove and require little maintenance. These V-belts are commonly used in industrial, automotive, and commercial applications to transfer power from motors to equipment.

Downloads

Specifications

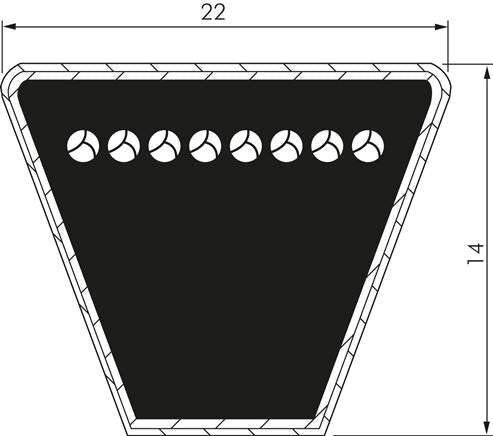

Belt profile type
Specifies the cross-sectional shape and dimensions using codes followed by width x height in mm, indicating compatibility with pulleys and machinery.
C - 22x14 mm

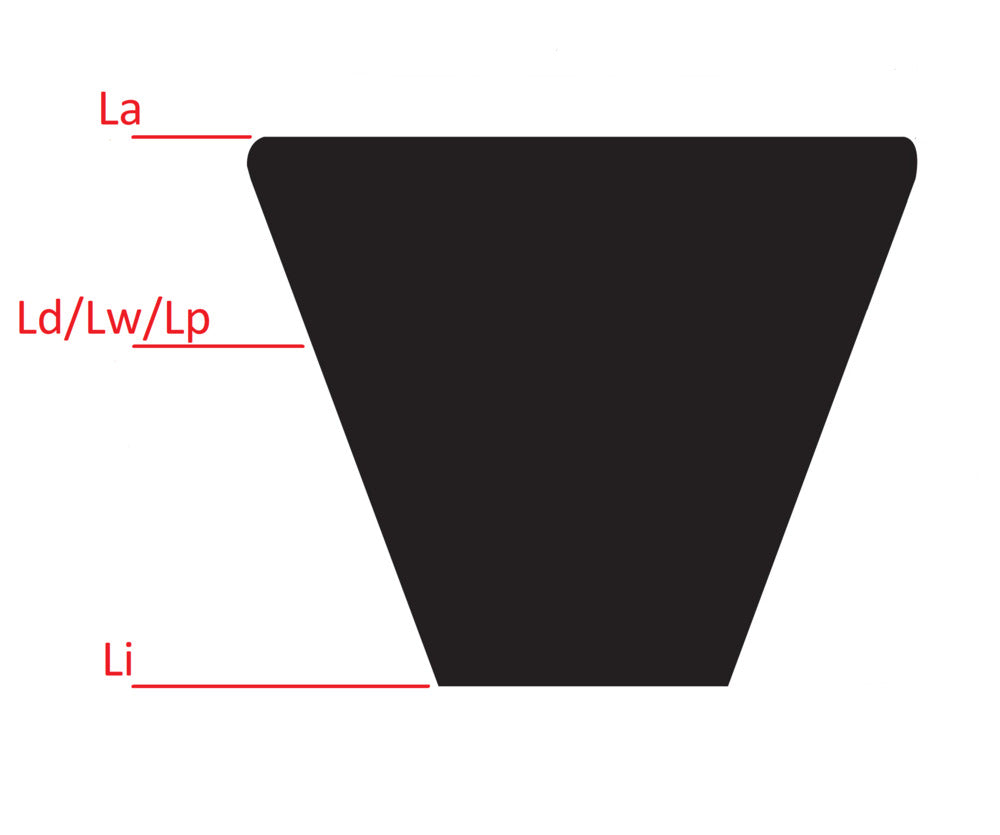

Reference length ISO Ld/Lw/Lp (mm)
The working length for V-belts, ensuring compatibility and accuracy in sizing. Standardized measurement in millimeters according to ISO specifications.
7858
Inner length Li (inch)
The length around the inner surface of the belt, where it makes contact with the pulleys for power transmission.
307
Inner length Li (mm)
The length around the inner surface of the belt, where it makes contact with the pulleys for power transmission.
7800
Outer length La (inch)
The total length around the outer surface of the belt when it is installed and under tension.
311
Width (top) (mm)
The width across the top of the V-belt, aiding in matching with pulley grooves. Wider belts distribute load more effectively.
22
Height (mm)
The measurement of the cross-section of the belt, indicating its thickness. Thicker belts offer increased strength and resilience.
14
Temperature resistance (°C)
The maximum temperature the belt material can withstand without significant degradation or loss of performance, measured in degrees Celsius.
-40 °C to 80 °C
Temperature resistance (°F)
The maximum temperature the belt material can withstand without significant degradation or loss of performance, measured in degrees Fahrenheits.
-40 °F to 176 °F
Max. belt speed (m/s)
The maximum linear speed at which the v-belt can operate safely without experiencing excessive wear or failure.
30
Max. belt speed (ft/s)
The maximum linear speed at which the v-belt can operate safely without experiencing excessive wear or failure.
98
Min. disc diameter (mm)
The minimum diameter of the pulley or sheave around which the belt could operate. This measurement ensures proper belt engagement and performance.
180
Shape-toothed model
Indicates if the belt has teeth/coggs on its surface, typically used for improved grip and efficiency in power transmission systems.
No
Sheathed
Features a protective covering that encases the belt's core material. Provides additional durability and protection against wear, abrasion, and environmental factors.
Yes
Oil resistant
The belt is able to withstand exposure to oil without degrading or losing functionality. Crucial for uses in machinery operating in oil-rich environments.
Yes
