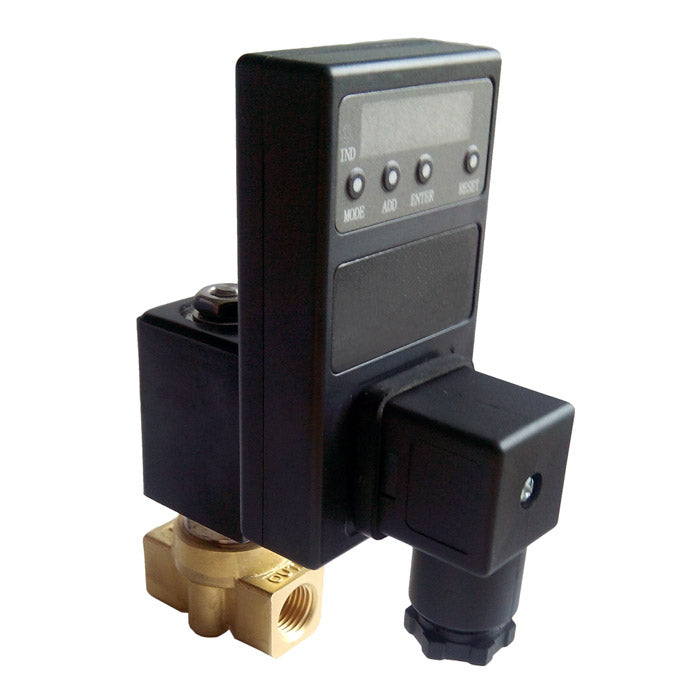

Condensate drain 1/4'' brass Digital 24 AC

Condensate drain 1/4'' brass Digital 24 AC
Reference: CD-014BD-024AC
Brand: JP Fluid Control

Automatic condensate drain with 1/4" threads, brass body and digital timer, for draining condensate in compressed air systems. The interval time and discharge time can be set in the range of 0 up to 100 hours in steps of 1 second. Suitable for operating pressures between 0 and 13 bar, the voltage is 24V AC.

View all
Regular price
$104.10 USD
excl VAT

In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 50, expect an increased lead time of 0 days. Up to 129 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 2 - 3 business days

Description
Specifications
Downloads
Related products

This automatic condensate drain solenoid valve is an effective solution for reliable and regular discharge of condensate of compressors, pressure vessels, dryers, air filters and other compressed air equipment. At fixed time intervals, the valve opens to drain the condensate. The condensate drain consists of a directly controlled solenoid valve with FKM seal in combination with an electronic timer.

The brass valve has two 1/4 inch ports with inner thread and is suitable for operating pressures between 0 and 13 bar. The power supply is 24V AC.

The interval time and discharge time can be set in the range of 0-100h (in steps of 1s). The valve position is indicated by a LED indicator. With a test button, the valve can be opened manually. The automatic condensate drain has an IP65 protection rating and is suitable for temperatures between -10°C and +50°C.

Install the valve at the lowest point in the compressed air system where the condensate can be drained. After installation, the interval time and drain time can be set and the system is immediately ready for use.


Note: Delivered in separate parts.
