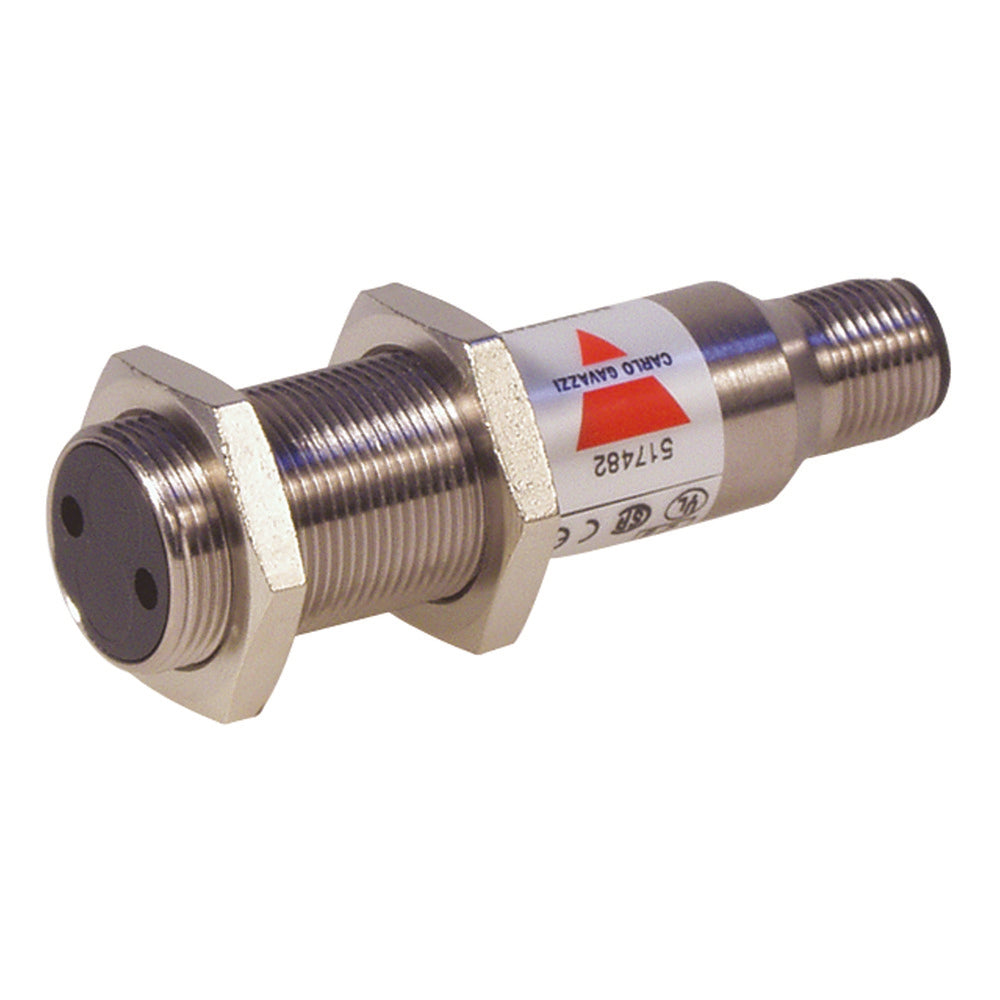

Carlo Gavazzi EO Light Sensor Energetic - EO1804PPAS1
Notice: This product is discontinued
Type eo1804 diffuse-reflective photoelectric sensor. The eo1804 type diffuse reflective photoelectric sensors have been designed for heavy duty applications and come in an ip67 rated, short m18 metal housing. Range is easily adjusted with a 270° single turn potentiometer. They are intended for applications where a basic sensor provides adequate performance. The output is a 4-wire complementary (no and nc) output in npn (current sinking) or pnp (current souring). Range: 400 mm adjustable. Modulated, infrared light. Supply voltage: 10 to 40 v dc. Output: 200 ma npn or pnp.
Notice: This product is discontinued
Description
Type eo1804 diffuse-reflective photoelectric sensor. The eo1804 type diffuse reflective photoelectric sensors have been designed for heavy duty applications and come in an ip67 rated, short m18 metal housing. Range is easily adjusted with a 270° single turn potentiometer. They are intended for applications where a basic sensor provides adequate performance. The output is a 4-wire complementary (no and nc) output in npn (current sinking) or pnp (current souring). Range: 400 mm adjustable. Modulated, infrared light. Supply voltage: 10 to 40 v dc. Output: 200 ma npn or pnp.
