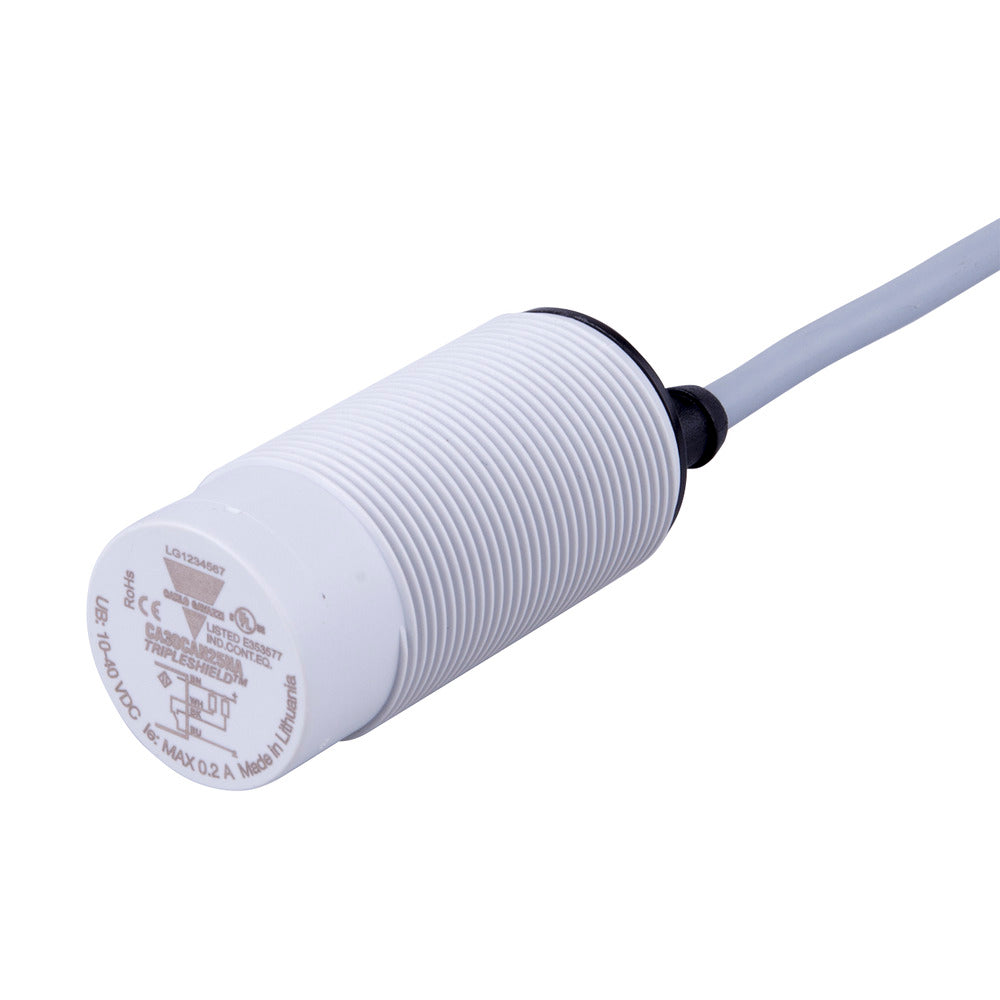

Carlo Gavazzi Capacitive proximity Switch - CA30CAN25NA

Carlo Gavazzi Capacitive proximity Switch - CA30CAN25NA
Carlo Gavazzi Capacitive proximity Switch - CA30CAN25NA
Image may vary slightly
See specifications for accurate information.
Reference: E2WWX
Brand: Carlo Gavazzi
Mfr. Part: CA30CAN25NA

Carlo Gavazzi capacitive proximity switch, voltage type DC, electrical connection design cable, mechanical installation conditions for not concise, switching element design antivalent, switching output design NPN, supply voltage 10 - 40V, switching distance 25mm, sensor diameter 30mm.

View all
$113.79
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 7 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

Carlo Gavazzi capacitive proximity switch, voltage type DC, electrical connection design cable, mechanical installation conditions for not concise, switching element design antivalent, switching output design NPN, supply voltage 10 - 40V, switching distance 25mm, sensor diameter 30mm.

Downloads

Specifications

Length of sensor (mm)
61
Diameter sensor (mm)
30
Mechanical mounting condition for sensor
Not flat
Switching distance (mm)
25
Suitable for safety functions
No
Type of switch function
Anticoincidence
Signal output
Type of switching output.
NPN
Electrical connection
Type of electric connection.
Cable
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
2
Number of protected contact energized outputs
0
Type of actuation
Other
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
SIL (IEC 61508)
None
Performance level (EN ISO 13849-1)
None
Max. current (mA)
The maximum current output of the protected output channel.
200
Supply voltage (V)
10 V to 40 V
Rated control supply voltage Us at DC (V)
10 V to 40 V
Voltage-type
DC
Switching frequency (Hz)
50
With monitoring function downstream switching devices
No
Status indication
Yes
Material
Choose a housing material that is not corroded by the media and environment, and can withstand the temperatures and pressures. Check out our chemical resistance chart.
Plastic
Compression-resistant
No
Explosion safety gas
None
Explosion safety dust
None
