Reference: BW3-012
Brand: JP Fluid Control

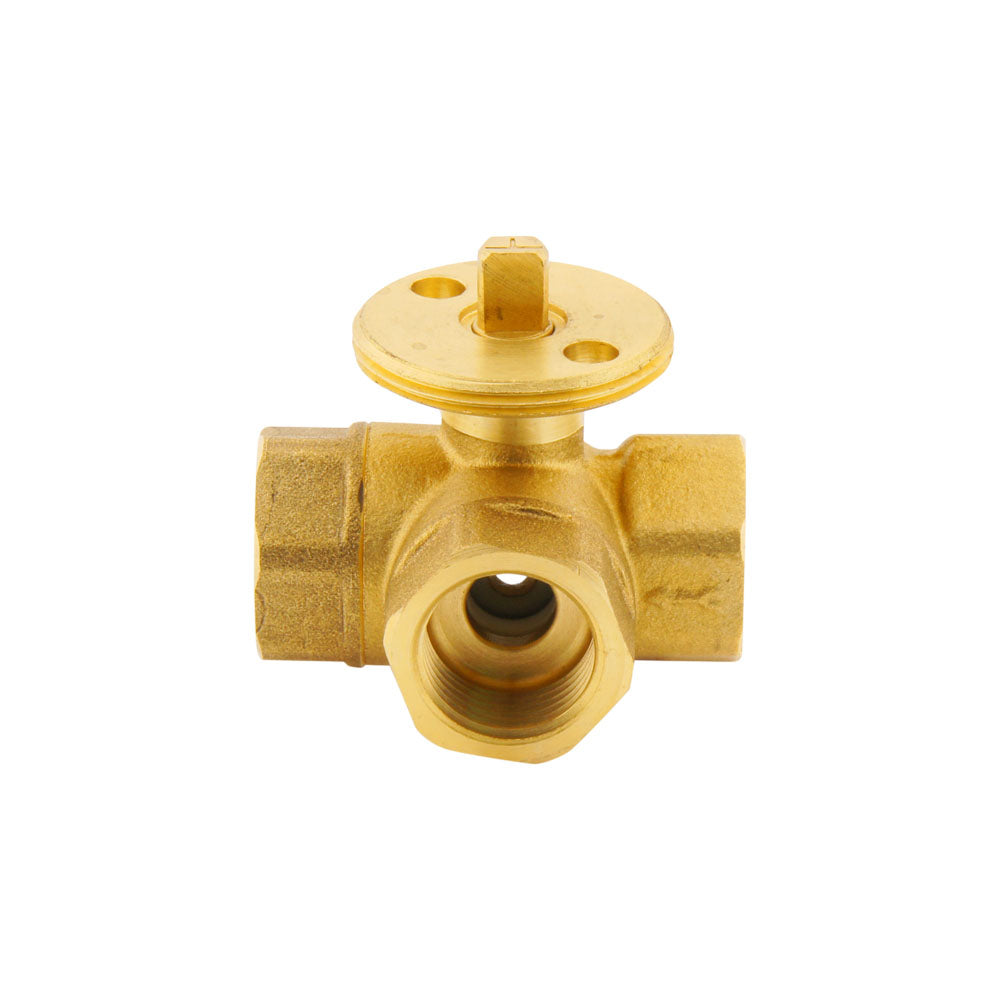

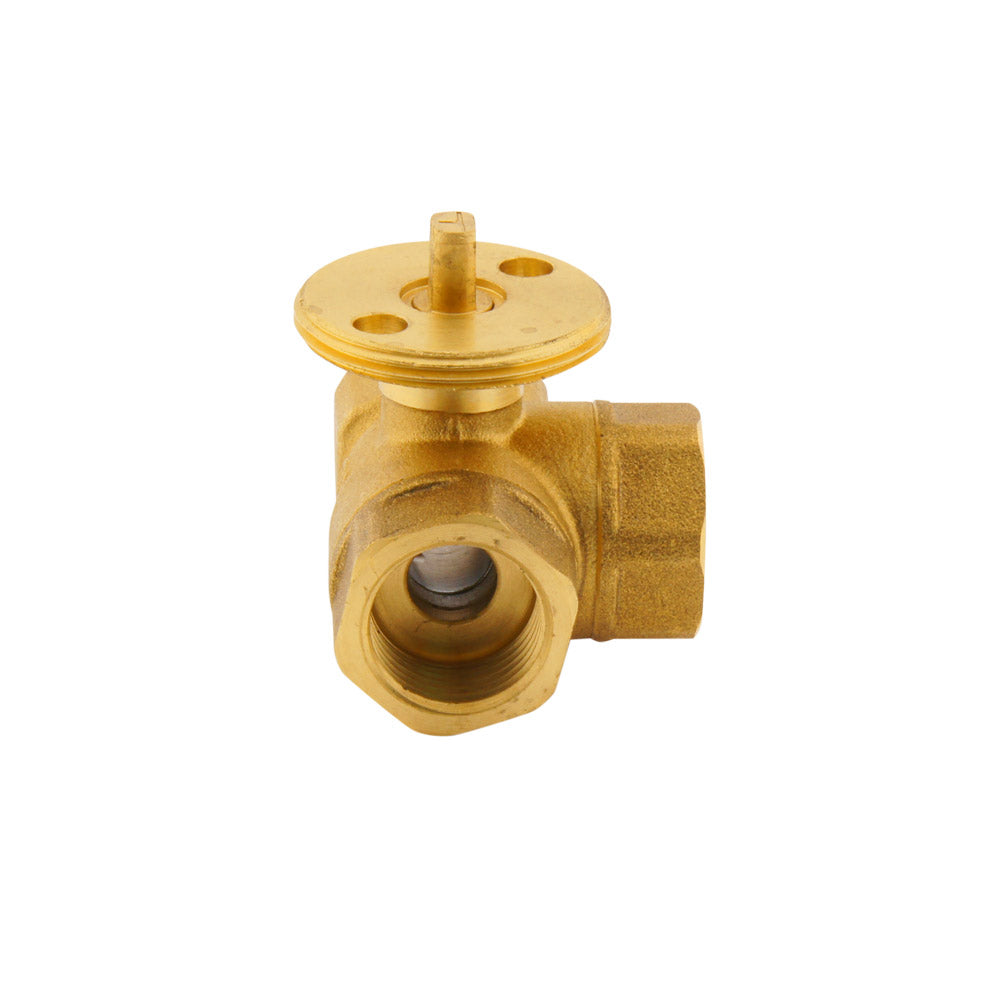

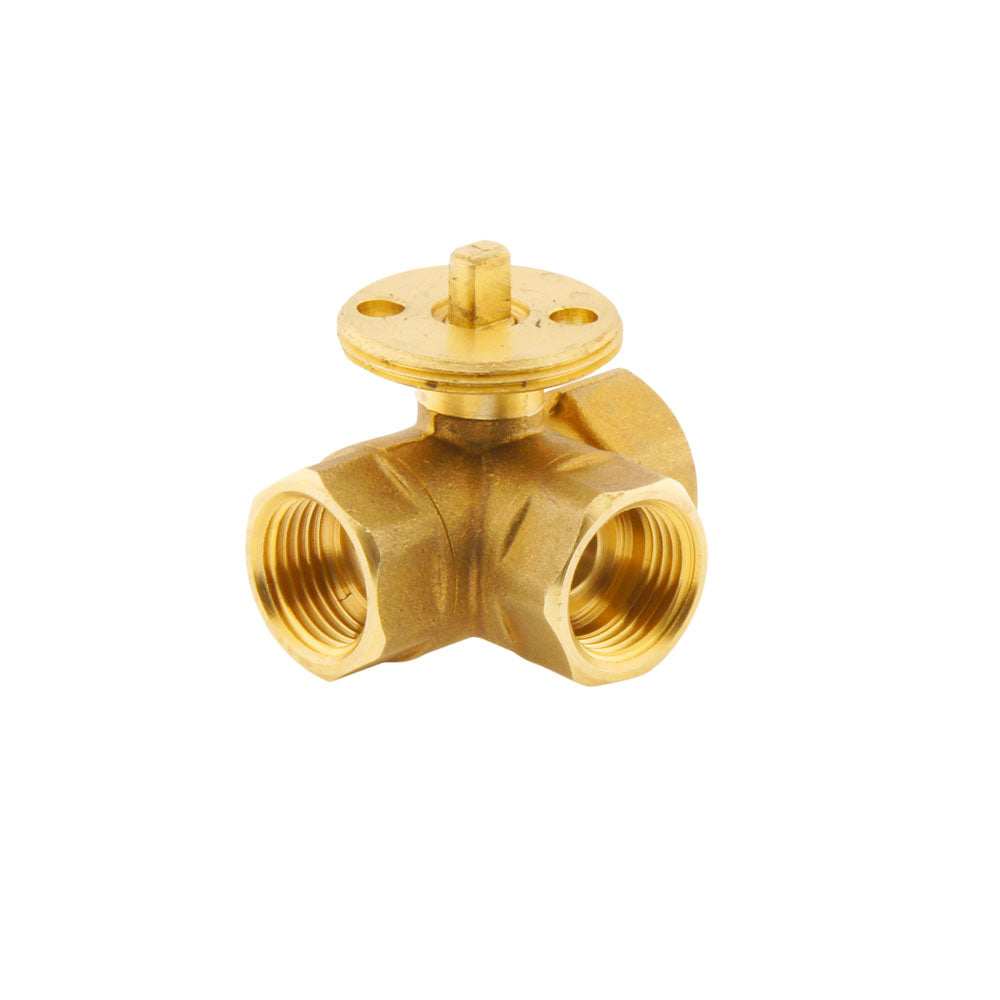

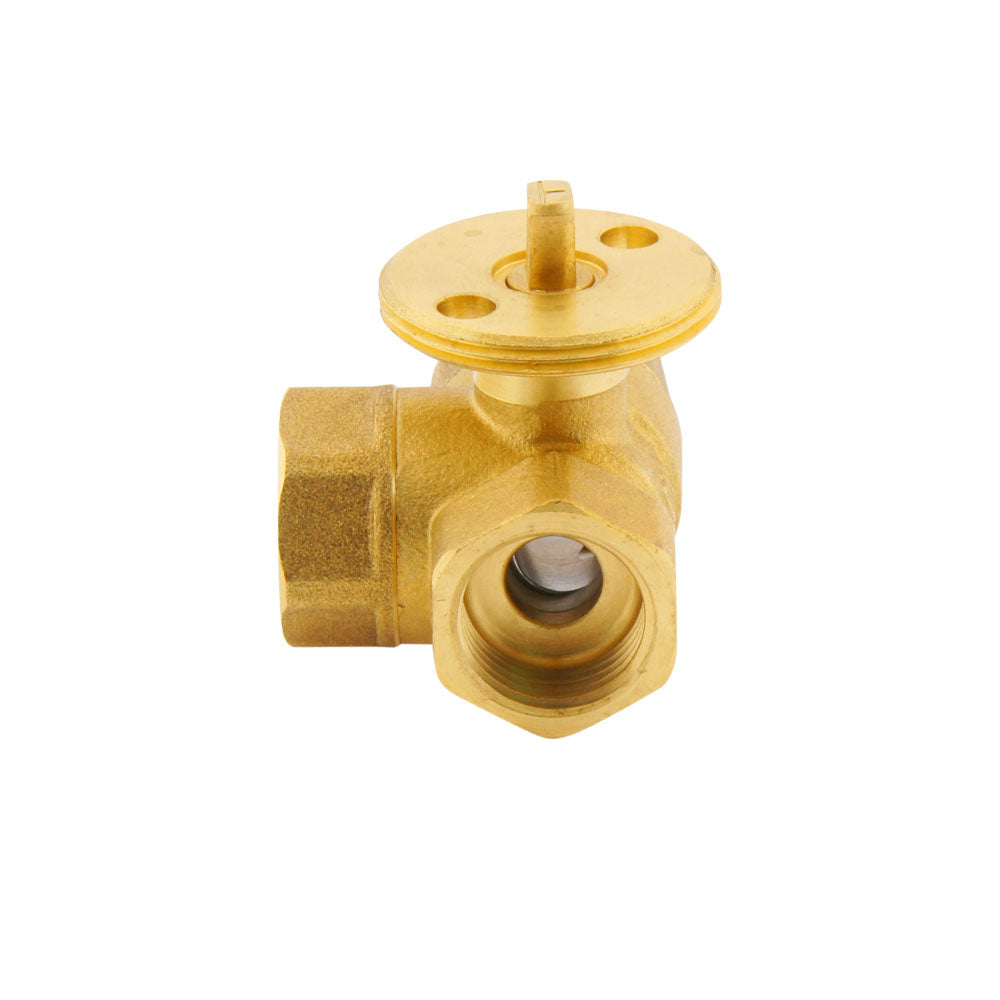

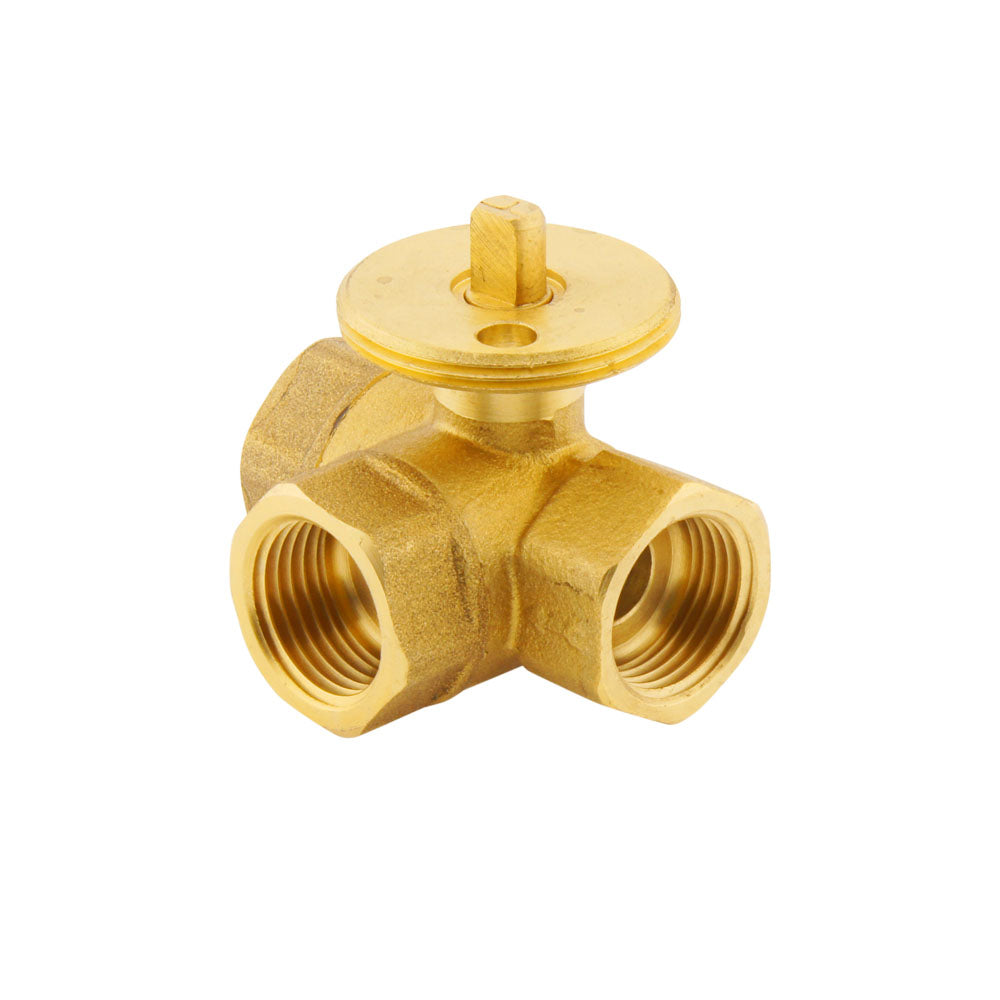

1/2 inch 3-way brass ball valve with chrome plated ball and PTFE seal. Suitable for liquids and gases (from -10 to 110°C). Regularly used in heating systems. The valve is compatible with the AW1 actuator. The orifice has a diameter of 10mm, the Kv-value is 6.4m3/h (106.7 l/min at dP=1 bar, water).

View all
Regular price
$31.42 USD
excl VAT

In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 148, expect an increased lead time of 0 days. Up to 198 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 2 - 3 business days

Description
Specifications
Downloads
Related products

This 3/2 way ball valve by JP Fluid Control is meant to be electrically operated (compatible with AW1 actuator). The valve has G1/2 inch inner port threads (BSPP) and is suitable for neutral liquids and gases (-10 up to 110°C). This type of valve is often used in heating systems. A ball valve is less sensitive to dirt than a solenoid valve. It is however recommended to install a filter before the valve. The valve body is made of brass, and features a chrome plated ball and a seal of PTFE (Teflon). The orifice has a diameter of 10 mm and the valve has a Kv-value of 6.4 m3/hr. This means that the flow is approximately 106.7 l/min at a differential pressure of 1 bar. This 3/2-way ball valve is best used to change flow direction from one output to the other, not stop the flow.

Important

  • Suitable for clean gases and liquids, including cold & hot water.
  • Make sure that the valve is suitable for the application and that the materials are suitable for the medium and the temperature

Note: this valve is not suited for dry gases such as unlubricated compressed air.
