Reference: BW2-012-AW1-230AC
Brand: JP Fluid Control

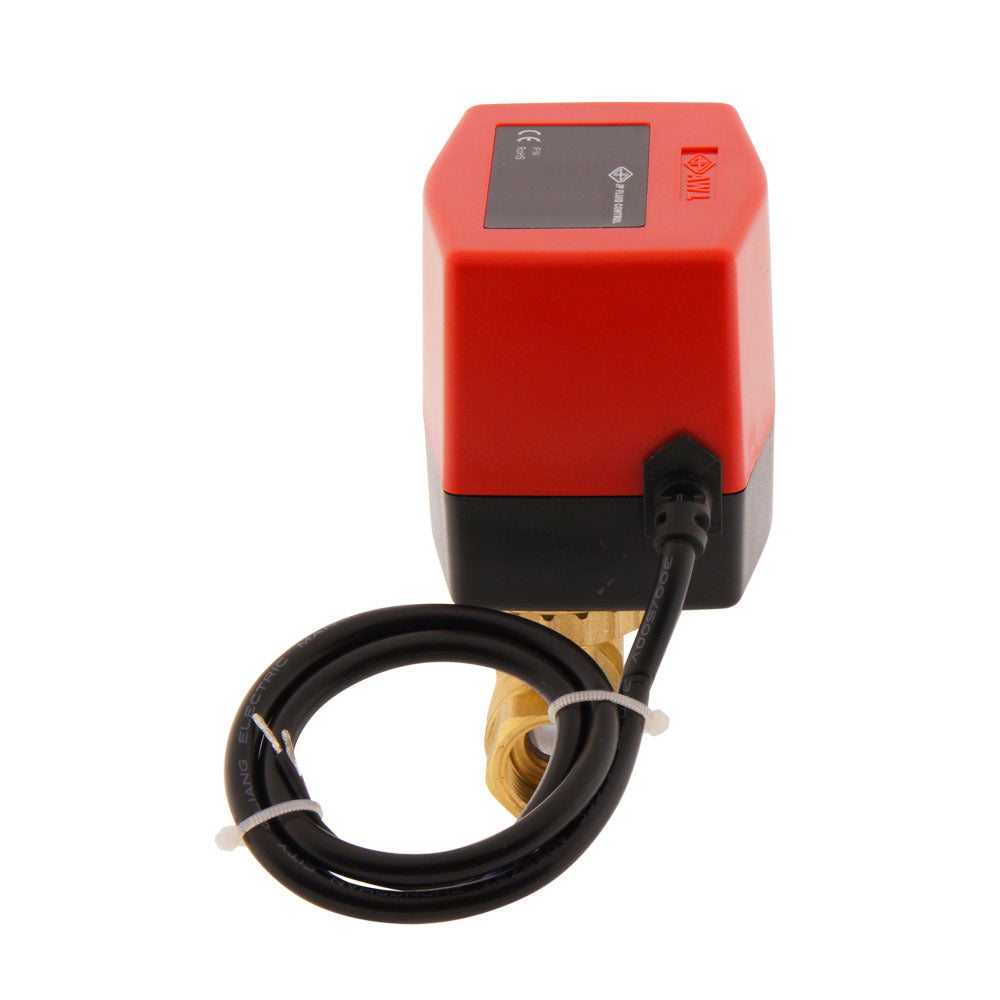

2 way electrical ball valve with 1/2 inch female threads (BSP) and energy efficient 230V AC actuator. Suitable for liquids and gases (max 110°C) and a pressure from 0-10 bar. Suitable as zone valve in heating systems. The valve has a brass housing with chromed ball and PTFE valve seats. The nominal diameter is 12mm, the Kv value is 8.6m3/h (143.3 l/min at dP=1 bar, water). 3-wire connection (3-point): neutral wire and 2 control wires (to open/close). The valve opens in 16s.

Including actuator
View all
Regular price
$78.53
excl VAT

In stock +29 days On request On request
For a higher quantity than 75 of product BW2-012-AW1-230AC, the lead time of the order will increase by 29 days. The item is not online available in your chosen quantity, there are 50 items available for online order. For higher quantities please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 3 - 6 business days

Description
Specifications
Downloads
Accessories

Very energy efficient and robust 2 way JP Fluid Control electric ball valve to open or close pipes electrically. The valve has 1/2 inch threads (female thread BSPP) and a 230V AC actuator (IP54). This valve is suitable for liquids and gases (-10 to 110°C) and is often used in heating systems. A ball valve is less sensitive to dirt than a solenoid valve. It is however recommended to install a filter before the valve. The valve body is made of brass, the ball is chrome plated and the seal is PTFE (Teflon). The orifice is 12 mm, the Kv-value is 8.6 (143.3 l/min at dP=1 bar). The time for opening or closing is approximately 16 seconds.

Installation

The actuator has a 3-wire connection, and must be connected as shown in the diagram below. The actuator is supplied with a cable. The actuator has 3-point control. One wire is permanently connected to the neutral. The other two wires are control wires to rotate the ball in both directions (connect to the phase). Please note: never connect the two control wires at the same time, this could damage the actuator! The actuators can be supplied with an integrated relay (On-Off control), in that case only one control wire is needed. The actuator includes limit switches, energy is only consumed during opening or closing of the valve.


Important

  • Please observe the color coding of the wires. Never connect the two control wires at the same time, the actuator will be damaged.
  • Suitable for clean gases and liquids, including cold & hot water.
  • Make sure that the valve is suitable for the application and that the materials are suitable for the medium and the temperature.

Note: this valve is not suited for dry gases such as unlubricated compressed air.
