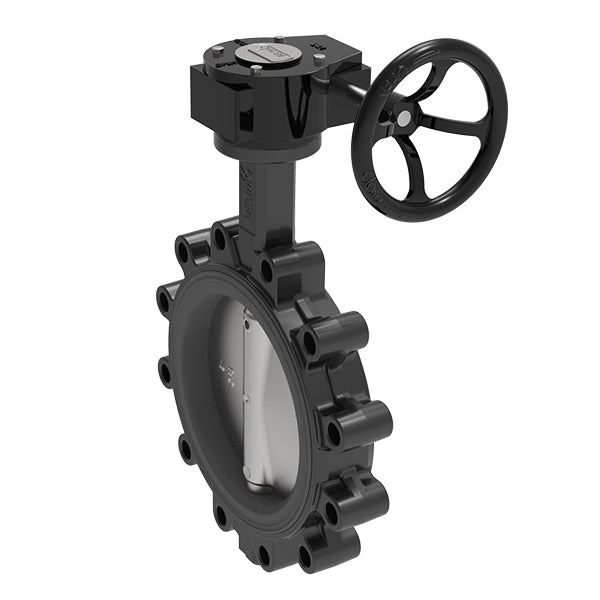

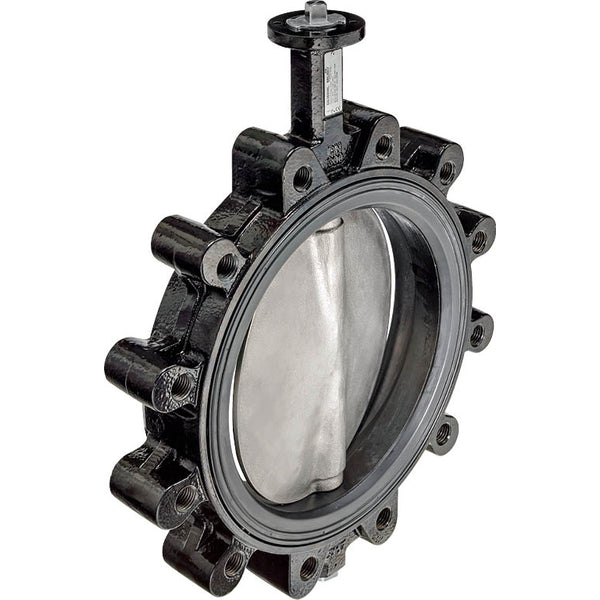

Butterfly Valve DN200/PN16 Lug GGG40 EPDM Worm Gear D6200WL/ZD6N-S150

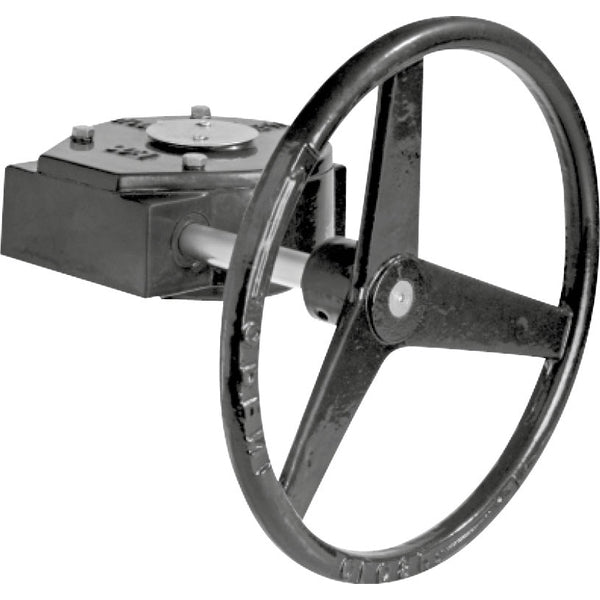

Belimo butterfly valves are quarter turn valves ideal for on/off or modulating flow operations. This valve is rated for 16 bar (232 psi) bar and is operated by hand, but can be used with an actuator (ISO 5211). The nominal diameter is DN 200 and has a lug type flange. The cast iron GGG 40 housing, and an EPDM seal make it durable and allows for a media temperature between -20 and 120 °C (-4 and 248 °F). The valve is operated by a worm gear.
- Regular price
- $1296.70
Description
Belimo butterfly valves are quarter turn valves ideal for on/off operations as well as modulating flow. This valve is rated for 16 bar (232 psi) bar non-hazardous fluids and is operated by a worm gear. Please note that the maximum pressure may deviate based on the medium type so carefully check the datasheet. The nominal diameter is DN 200 and is mounted to your system by an lug type flange. The cast iron GGG 40 housing, and an EPDM seal make it durable and allows for a media temperature between -20 and 120 °C (-4 and 248 °F).
Pros:
- High Kv-value because the fluid flows in a straight line
- Suitable for viscous media
- Relative low torque to switch position compared to ball valves
- Small construction length in relation to the dn 200 diameter compared to a similar size ball valve
- Can be used for a wide array of fluids and gases
Series:
The Belimo D-N/W series features butterfly valves with both Wafer and Lug types. Ideal for open and closed cold and warm water systems, these valves are designed to switch heat generators or cooling machines on/off with efficiency. Available in sizes ranging from DN25 to DN700, these butterfly valves offer reliable performance for various applications.
