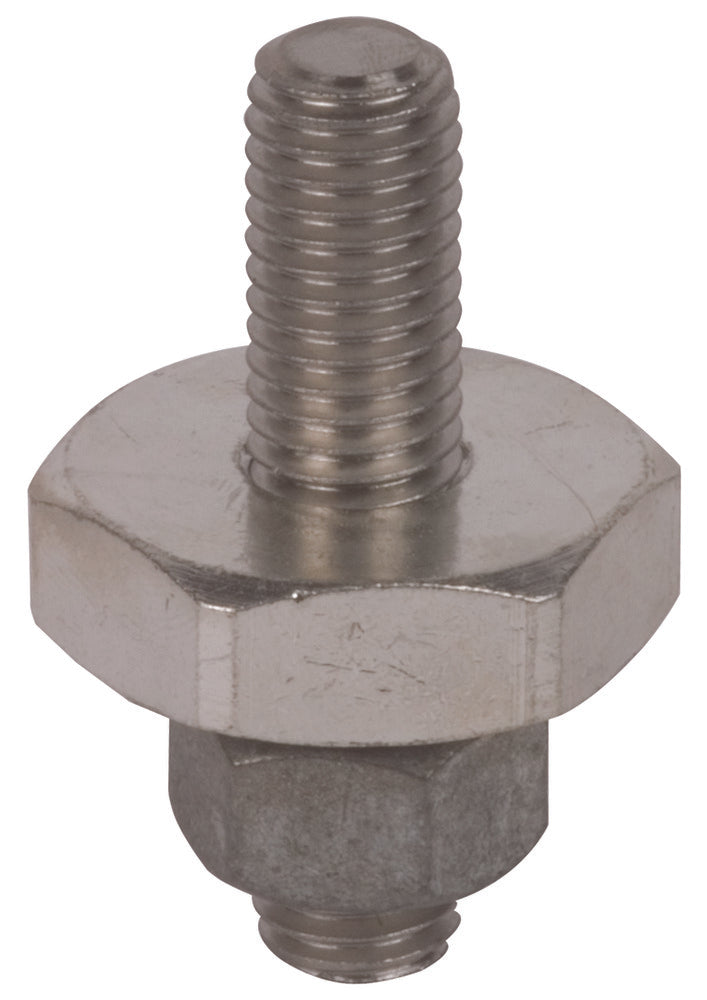

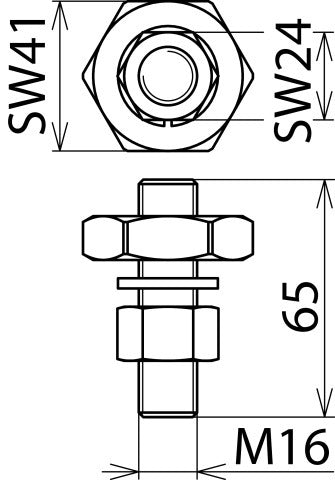

Bolted Type Connector With Threaded Bolt M16x65mm And Nut - 750500
This is a bolted-type connector with a threaded pin and loose hexagon nut, designed to be used as a connection point to the earthing system. It complies with the EN/IEC 61230 (DIN VDE 0683-100) standards. The connector is equipped with a short circuit provision, capable of withstanding a maximum short-circuit current of 42kA. It has a linear construction and comes with a threaded bolt. The connector facilitates the connection of earthing and short circuiting devices, and can accommodate a maximum wire cross-section of 150mm² in copper.
- Regular price
- $29.11 USD
We sell only to registered businesses
Description
This is a bolted-type connector with a threaded pin and loose hexagon nut, designed to be used as a connection point to the earthing system. It complies with the EN/IEC 61230 (DIN VDE 0683-100) standards. The connector is equipped with a short circuit provision, capable of withstanding a maximum short-circuit current of 42kA. It has a linear construction and comes with a threaded bolt. The connector facilitates the connection of earthing and short circuiting devices, and can accommodate a maximum wire cross-section of 150mm² in copper.
