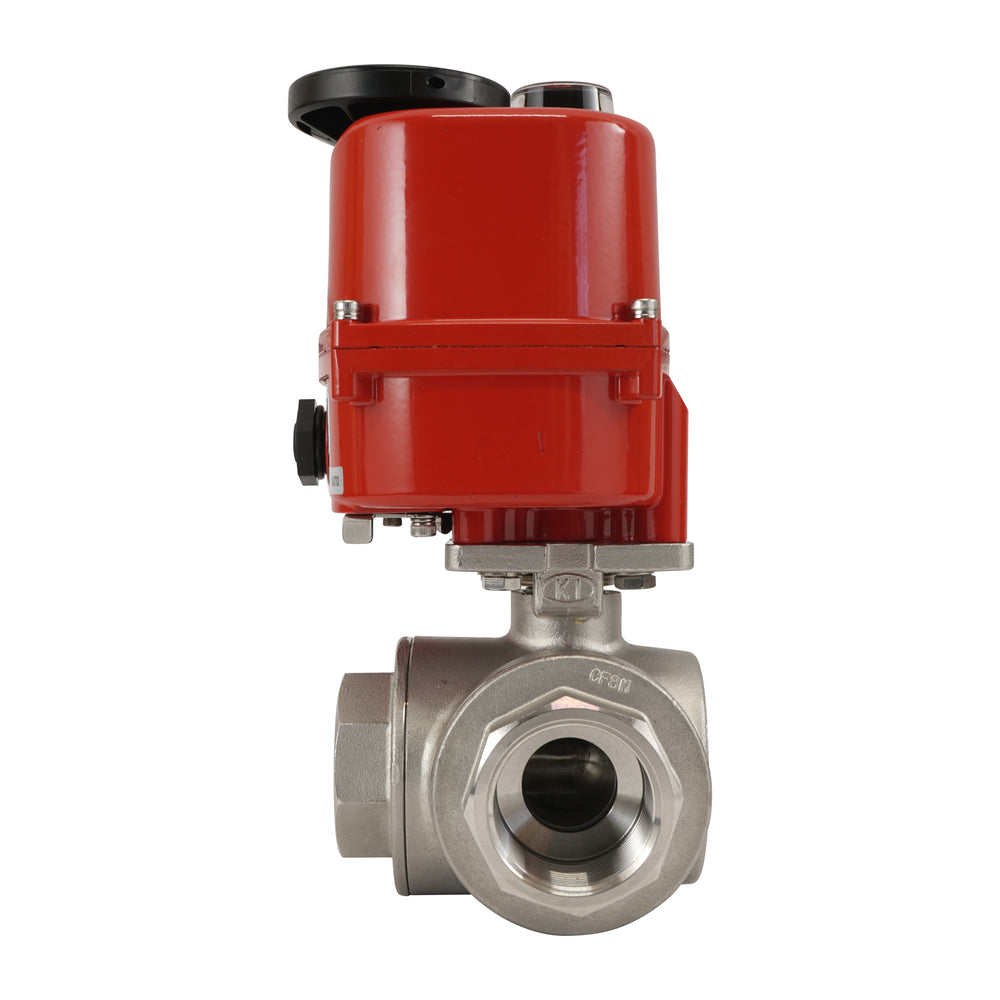

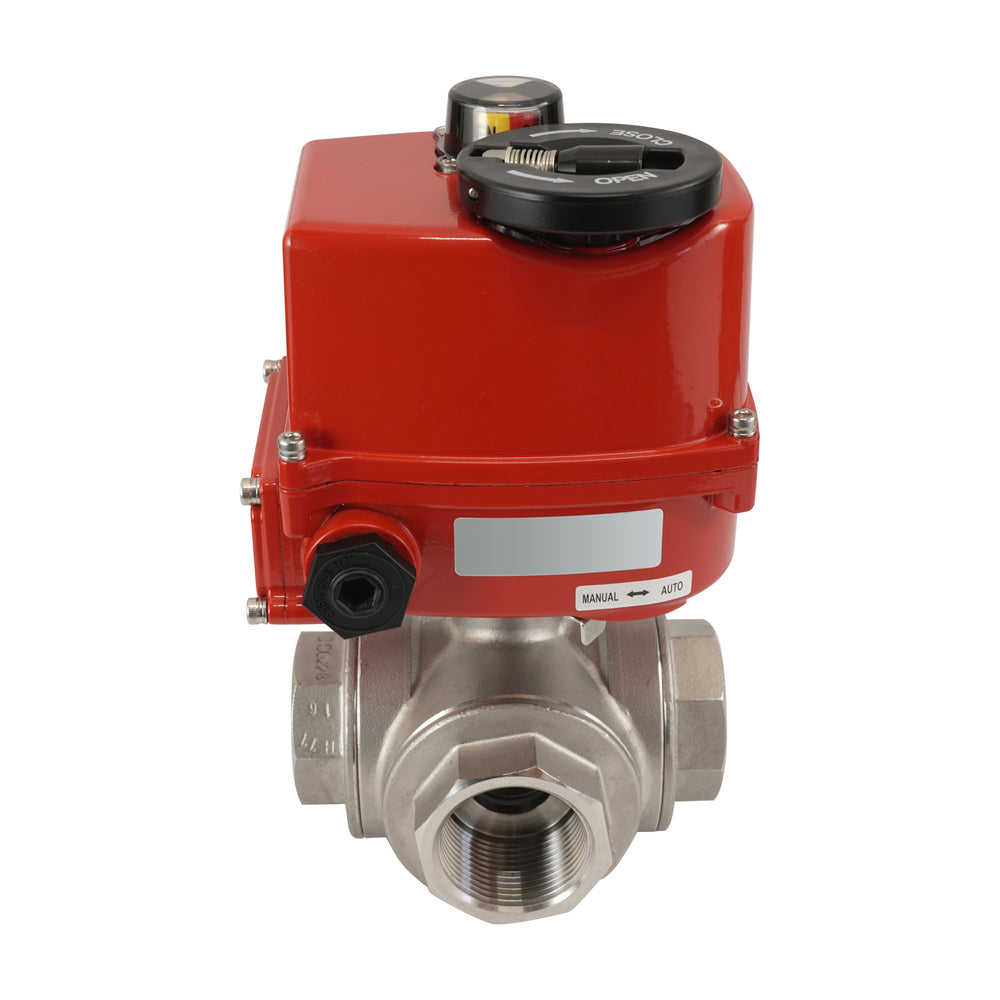

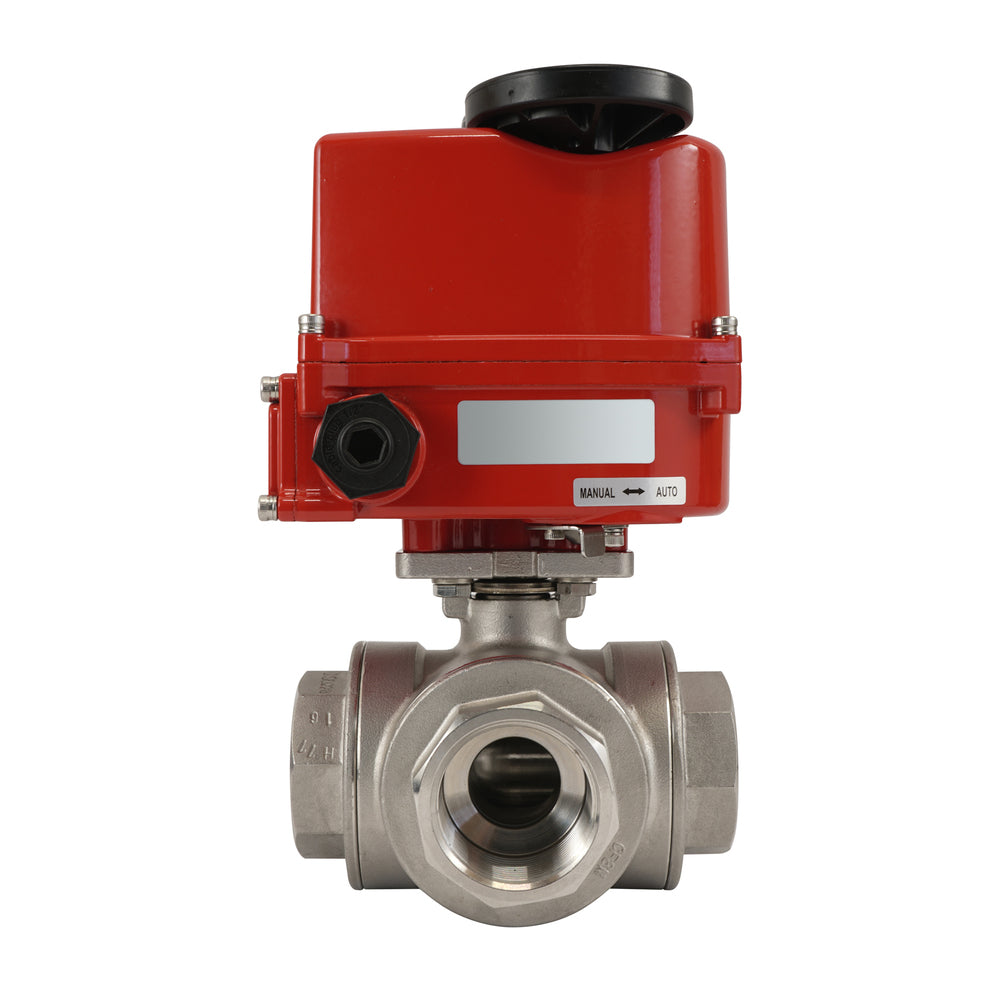

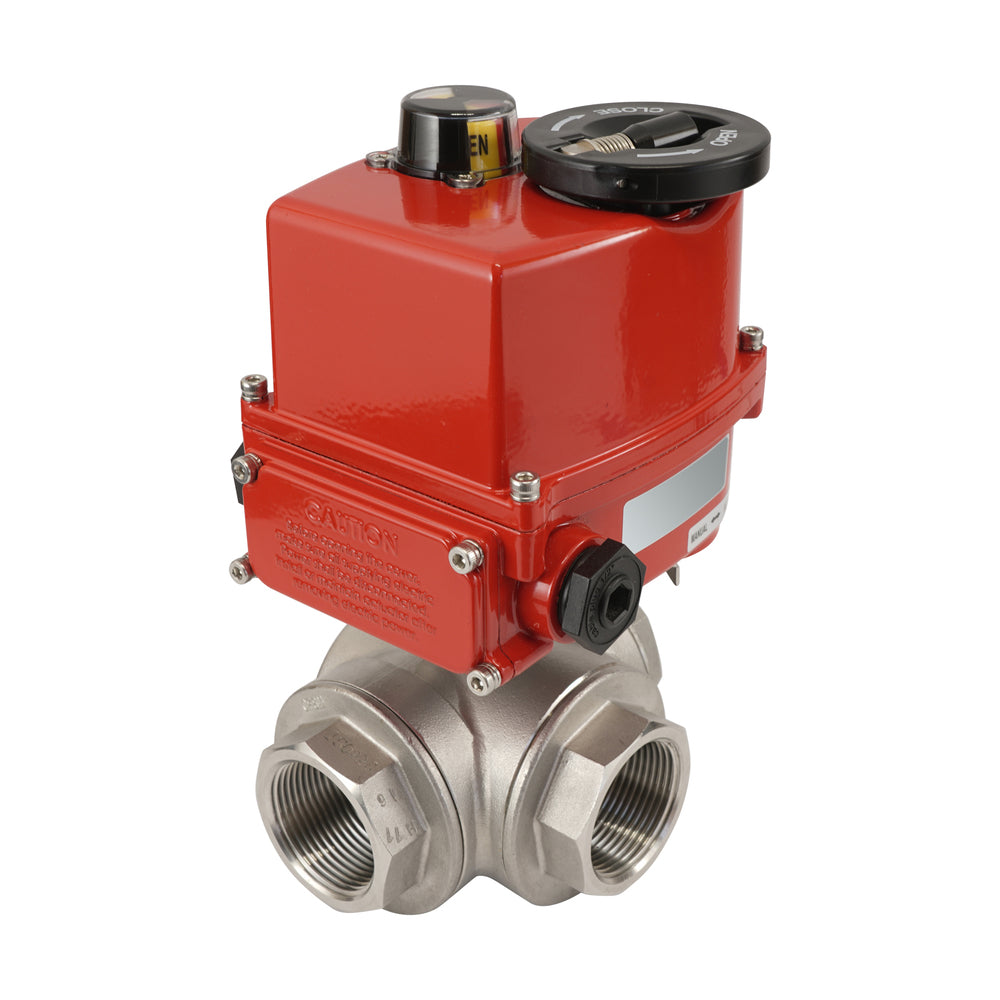

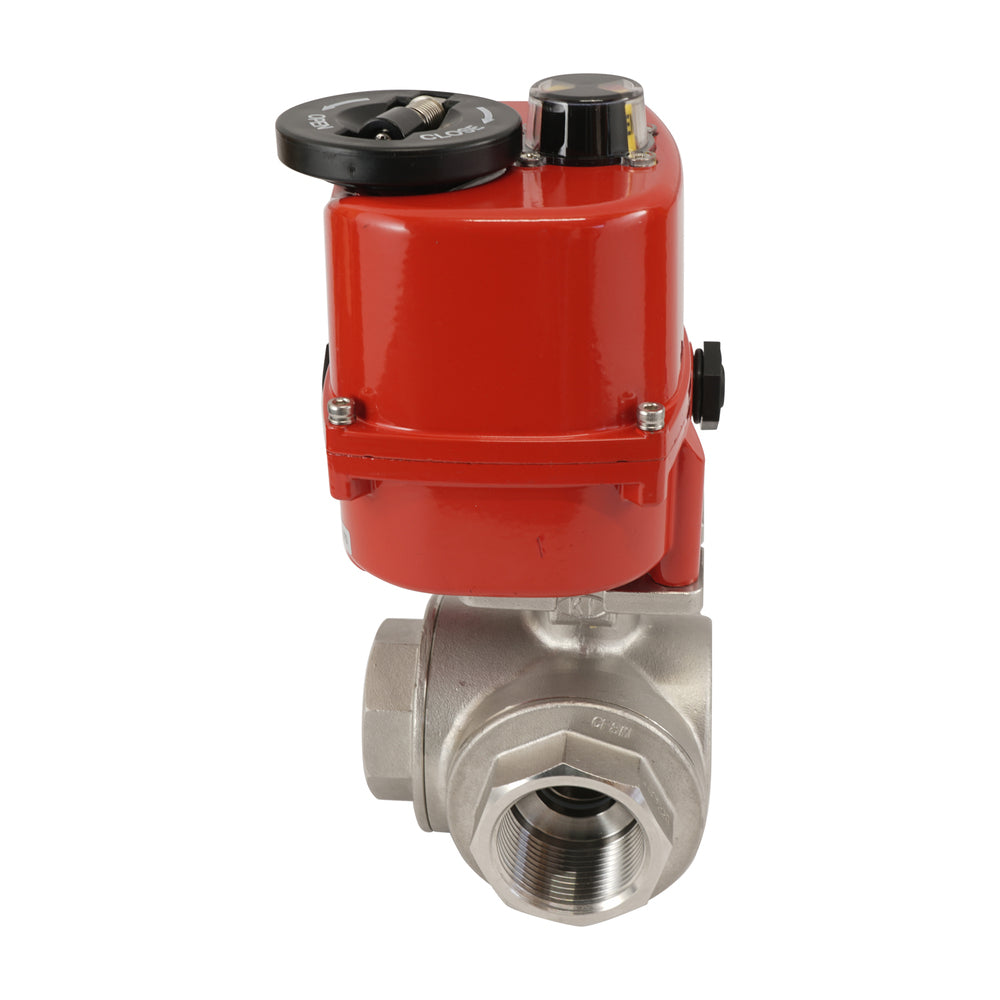

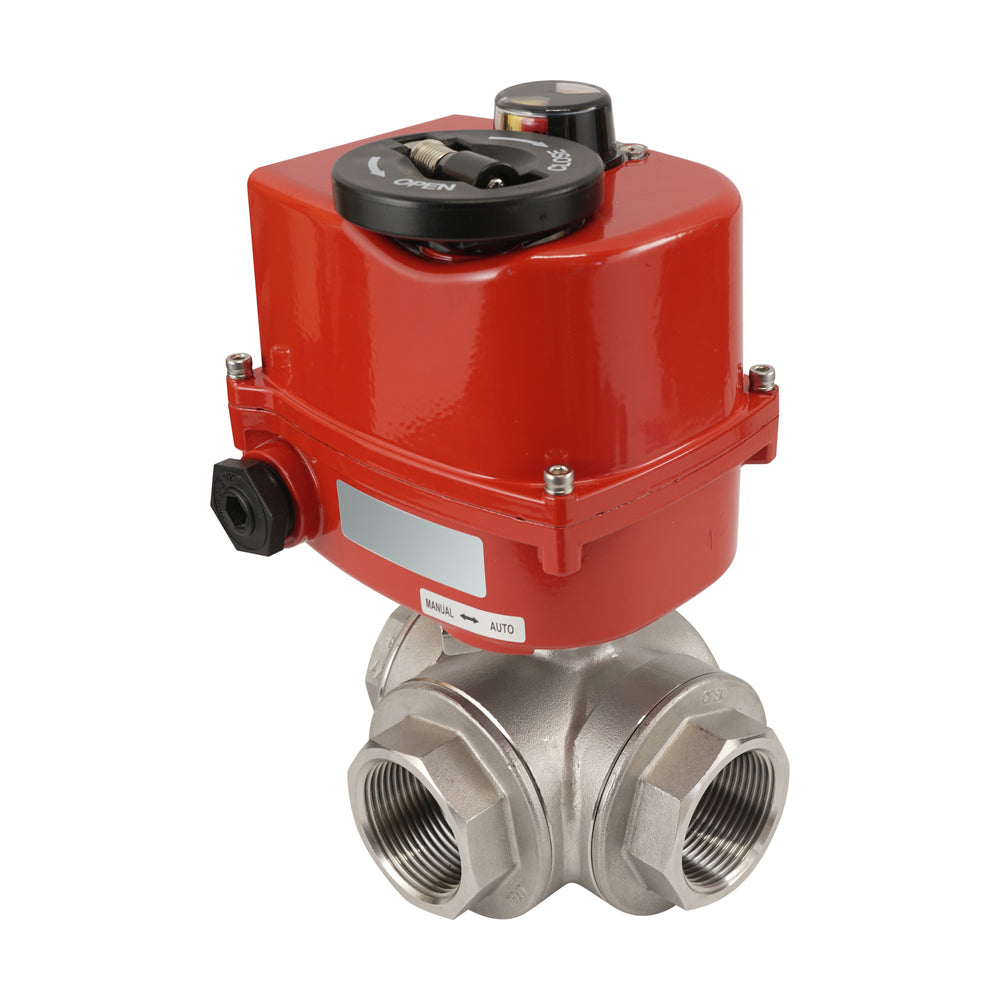

G 1 1/4 inch 3-Way stainless steel electric ball valve (T- bore) 100-240 V AC
This electrical actuator is offered in combination with a 3-way stainless steel ball valve (T-mm bore). Actuator requires 100-240 V AC to operate. The ball valve has three G 1 1/4 inch inner thread connection points. Orifice of 25 mm (Kv value 41 m3/h), medium temperature range of -20 to 180 °C, and a max pressure of 63 bar. With the actuator’s housing, it gives the unit a protection of IP67 for an environmental temperature of -10 to 50 °C.
- Regular price
- $737.64 USD
We sell only to registered businesses
Description
This electrical actuator is offered in combination with a 3-way ball valve. It can turn the valve from 0-90 degrees with an operating torque of 50 Nm (higher break torque so please see the manual) in a time of 13 seconds. It requires a supply voltage of 100-240 V AC has a duty cycle of S2, and comes with a visual positioning indicator on top of the unit to clearly see valve position. The actuator is mounted on the valve via the ISO 5211 F03, F05 or F05 flange. The 3-way stainless steel valve has three connection points of G 1 1/4 inch. The medium flows through a 25 mm bore (Kv value of 41 m3/h) and the temperature can be between -20 to 180 °C at a pressure under 63 bar. It has a spindle seal material of PTFE. Due to the actuator's durable housing, it has a protection rating of IP67 and can withstand an environmental temperature of -10 to 50 °C. Before connecting the actuator, please read the manual carefully.
Pros:
- It has a robust IP67 housing
- It has a clear visual position indicator to see the valve’s state
Cons:
- In comparison to a pneumatic actuator of the same size, the operating speed is slower
AG-550-A series
BL3SA Ball valve
The BL3SA series ball valves are reliable 3-way ball valves with a L-mm bore or T-mm bore. The housing is made of stainless steel, he ball is also made of stainless steel and the valve seats are made of PTFE/FKM. The valve is suitable for various aggressive and corrosive media up to a maximum of 63 bar. Suitable for temperatures between -20 and 180 degrees Celsius and available from size G 1/4 till G 2. Ball valves from the BL3SA series all have an ISO 5211 top flange (from F03 to max. F07) which makes the mounting of an actuator possible.
AG5 Actuator
The AG5 electric valve actuators from JP Fluid Control offers an extensive list of standard features that includes safety override against damage from over-torque and manual override. Actuators are also available with different options like modulating, called DPS (Digital Positioning System). The series has an operating torque range between 40-50 Nm. The AG5 DPS modulating actuator can be controled with 4-20 mA, 0-10V or 2-10V.
Spare parts
Below is a list of the spare parts for this unit should they be needed. Simply use the SKU number in our search bar to find the proper part. Ball valve: BL3SAT-114
Actuator: AG-550-A
Note: This product is delivered in separate parts, but with the required mounting accessories.
