Bedea TELASS Coaxial Cable - 801085 [500 Meters]

Notice: This product will be discontinued in the future

Discontinued
Bedea TELASS Coaxial Cable - 801085 [500 Meters]
Bedea TELASS Coaxial Cable - 801085 [500 Meters]

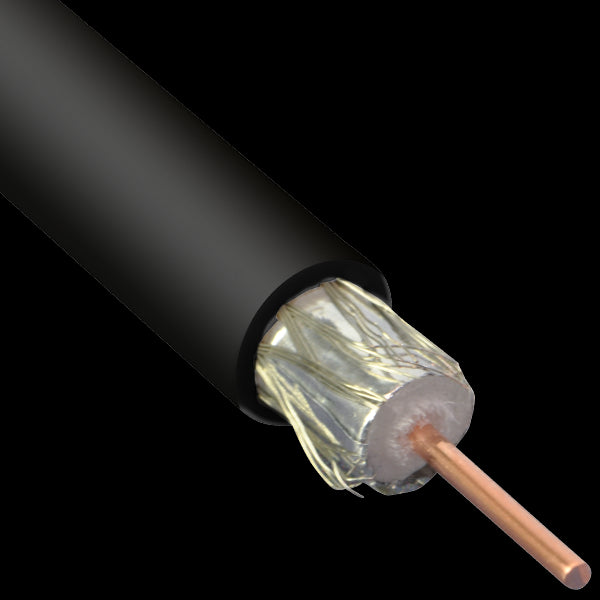

Image may vary slightly
See specifications for accurate information.
Reference: E36H4
Brand: Bedea
Mfr. Part: 14290900

Bedea TELASS 100 coaxial cable, sheath black, inner conductor class 1 = solid, halogen-free according to EN 60754-1/2, sheath material polyethylene (PE), outer diameter 6.8mm, inner conductor diameter 1.13mm, outer conductor diameter 4.9mm, characteristic impedance 75Ohm.

View all
Note: product cannot be returned

Notice: This product will be discontinued in the future

Description
Specifications

Description

Bedea TELASS 100 coaxial cable, sheath black, inner conductor class 1 = solid, halogen-free according to EN 60754-1/2, sheath material polyethylene (PE), outer diameter 6.8mm, inner conductor diameter 1.13mm, outer conductor diameter 4.9mm, characteristic impedance 75Ohm.

Specifications

Diameter inner conductor (mm)
1.13
Inner conductor material
Copper
Inner conductor category
Class 1 = solid
Diameter outer conductor (mm)
4.9
Outer conductor material
Copper
Type of outer conductor
Foil + braiding
Dielectric
Polyethylene, foamed (foam PE)
Colour outer sheath
Black
Characteristic impedance (Ohm)
75
Outer diameter approx. (mm)
6.8
Permitted cable outer temperature during assembling/handling (°C)
-5 °C to 50 °C
Permitted cable outer temperature after assembling without vibration (°C)
-25 °C to 70 °C
