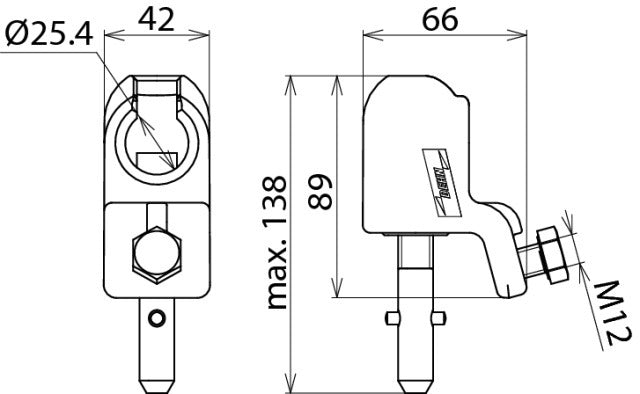

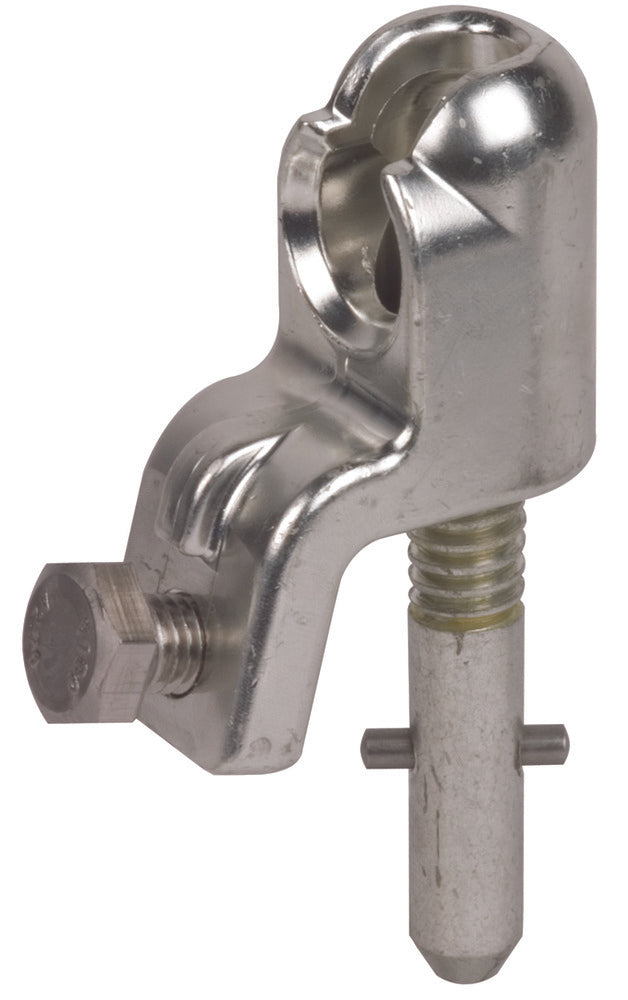

Ball Head Cap D 25mm With T Pin Shaft For Cables 16-150mm2 - 772321
The item is a rigid ball head cap with a T pin shaft, designed for use as a phase or earth connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is suitable for fixed ball points attachments to earthing and short-circuiting devices. It features maximum short-circuit current of 42kA, with designed wiring section ranging from 16 to 150mm². The connection technique includes the intensely secure ball point with 25mm diameter. PK1 anti-rotation element ensures the stability of the object while the operating rod spindle is attached using a cross pin.
- Regular price
- $135.86 USD
Description
The item is a rigid ball head cap with a T pin shaft, designed for use as a phase or earth connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is suitable for fixed ball points attachments to earthing and short-circuiting devices. It features maximum short-circuit current of 42kA, with designed wiring section ranging from 16 to 150mm². The connection technique includes the intensely secure ball point with 25mm diameter. PK1 anti-rotation element ensures the stability of the object while the operating rod spindle is attached using a cross pin.
