Reference: AW1-R230AC
Brand: JP Fluid Control

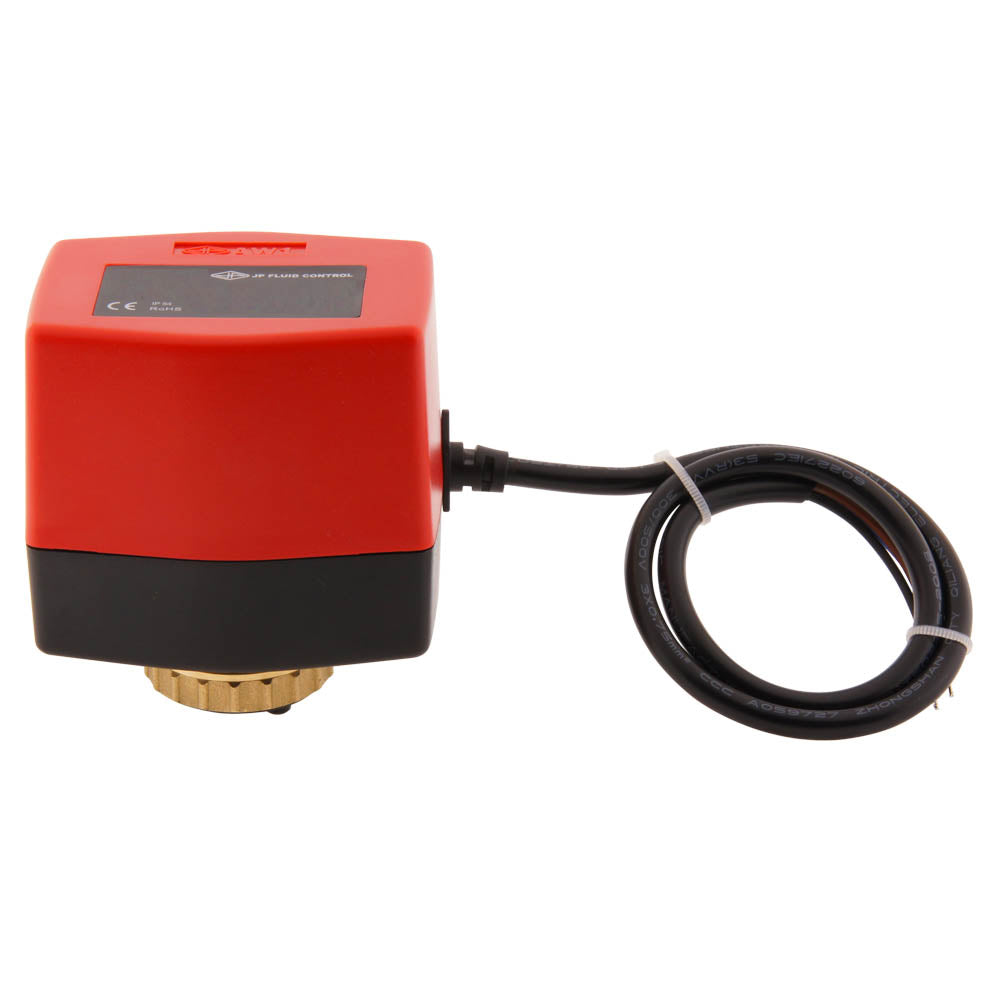

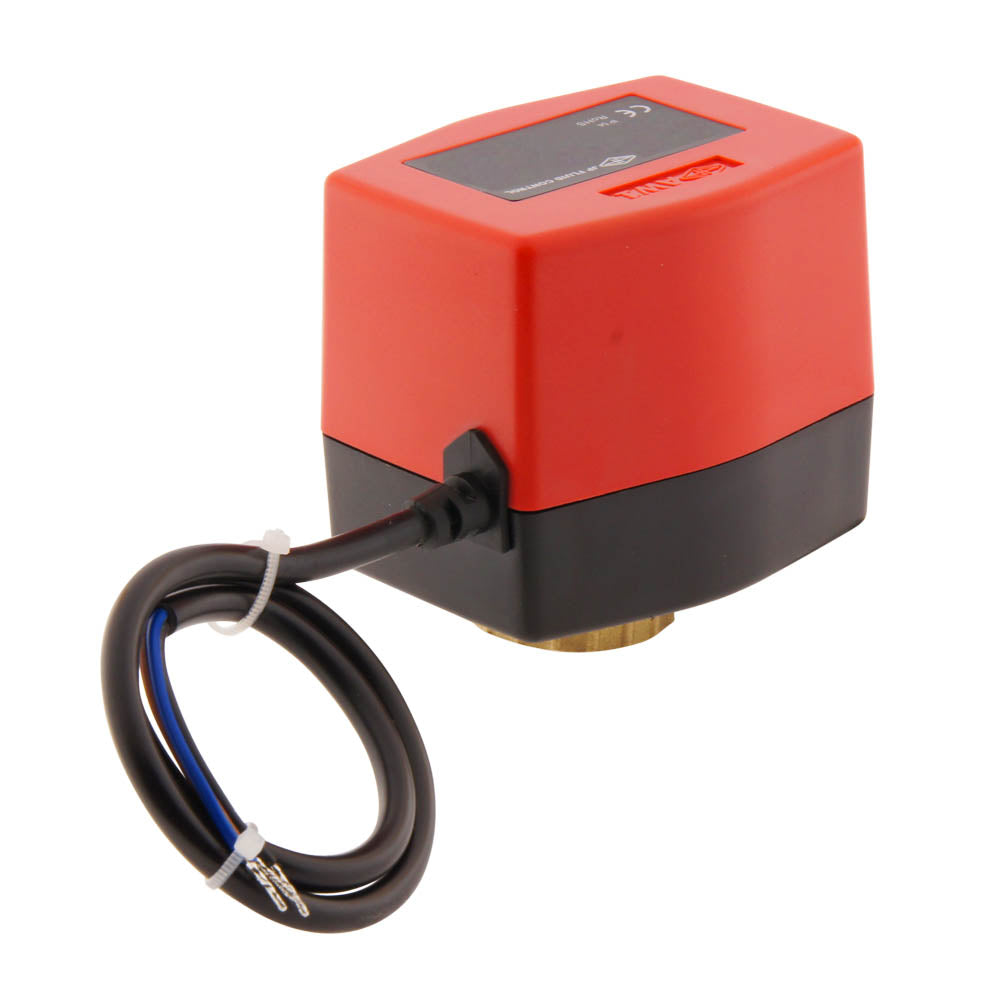

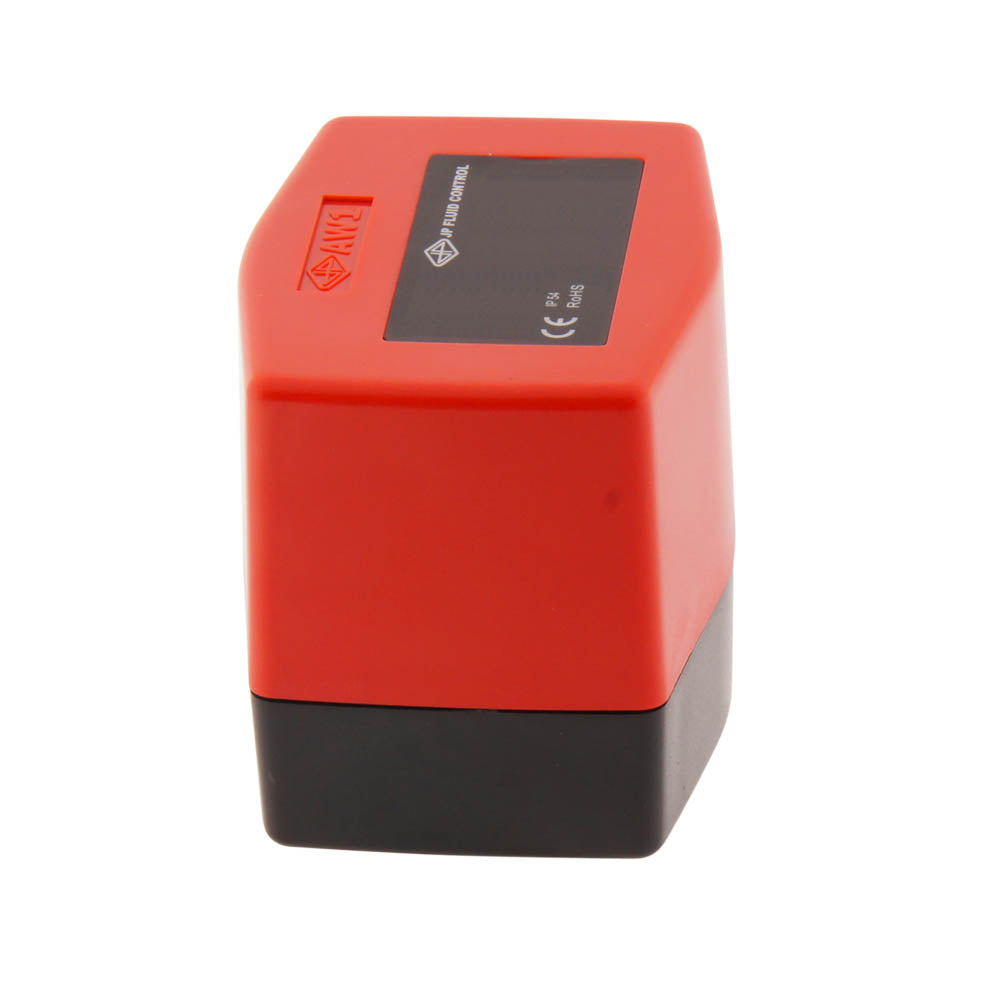

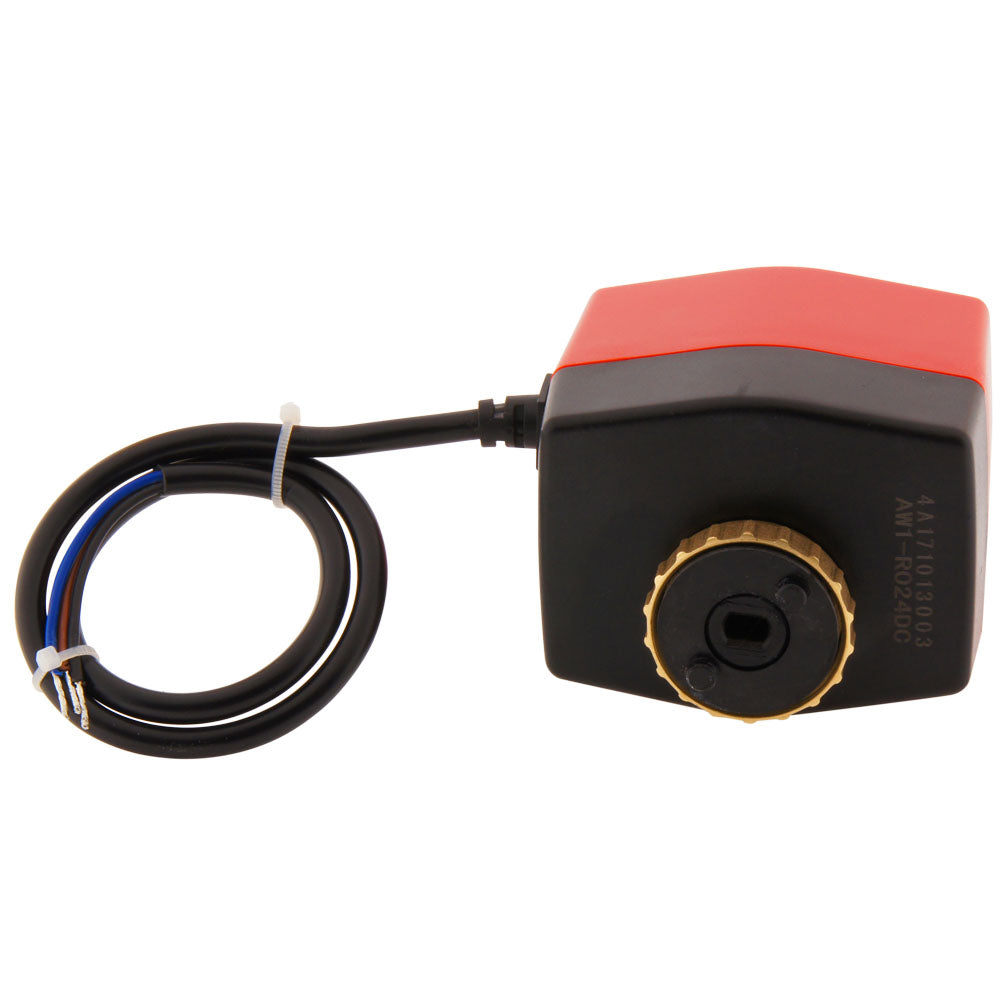

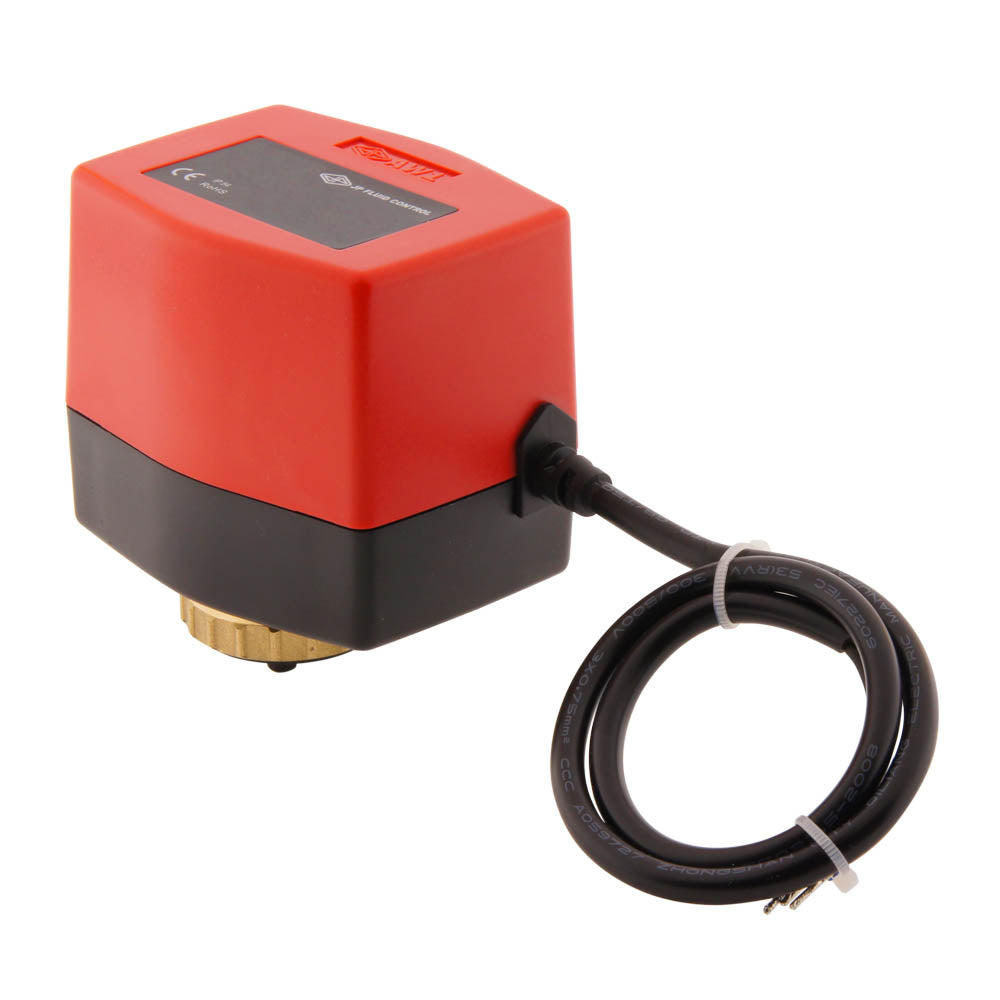

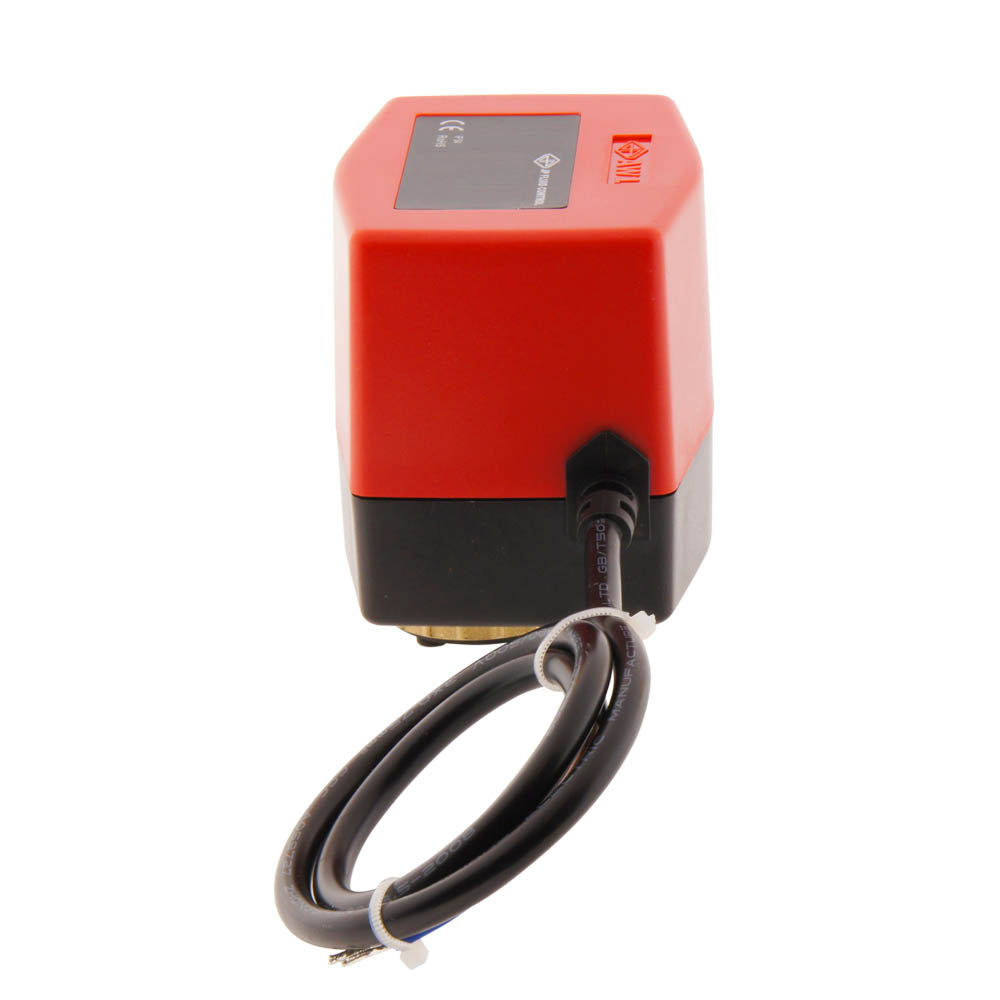

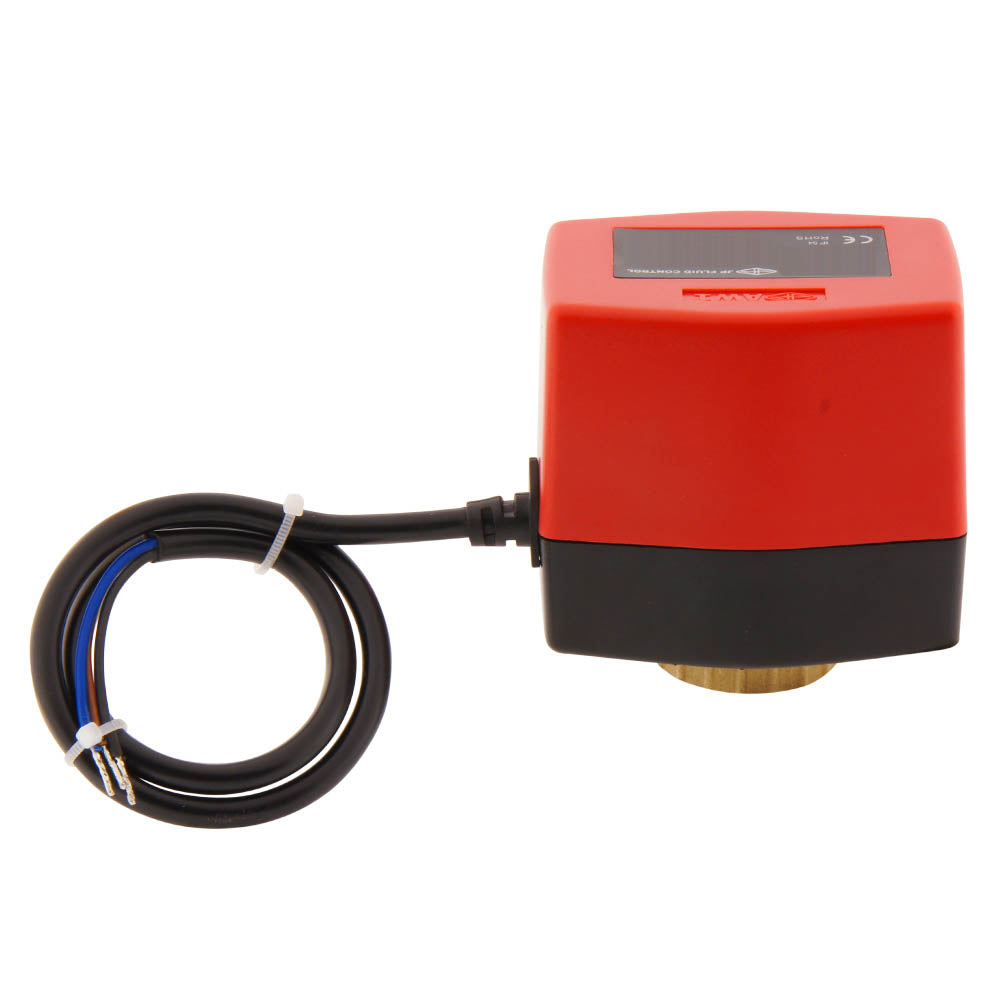

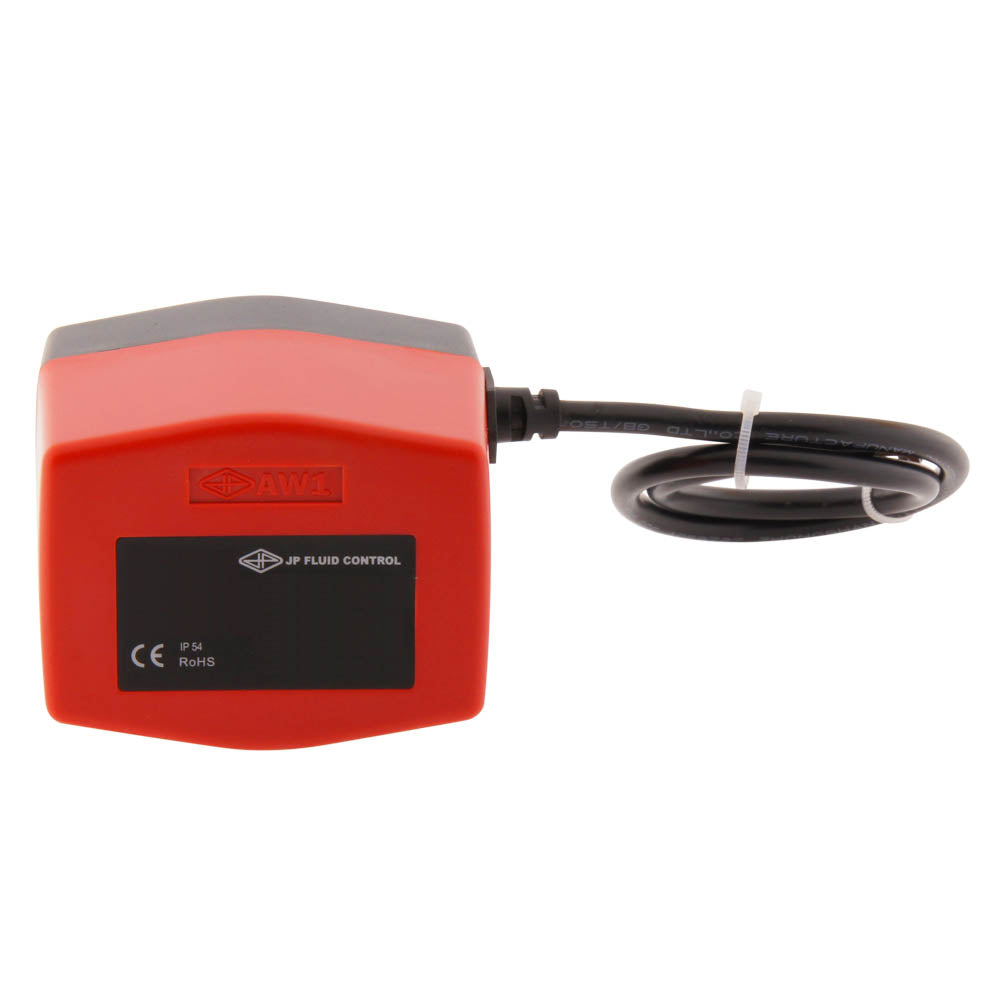

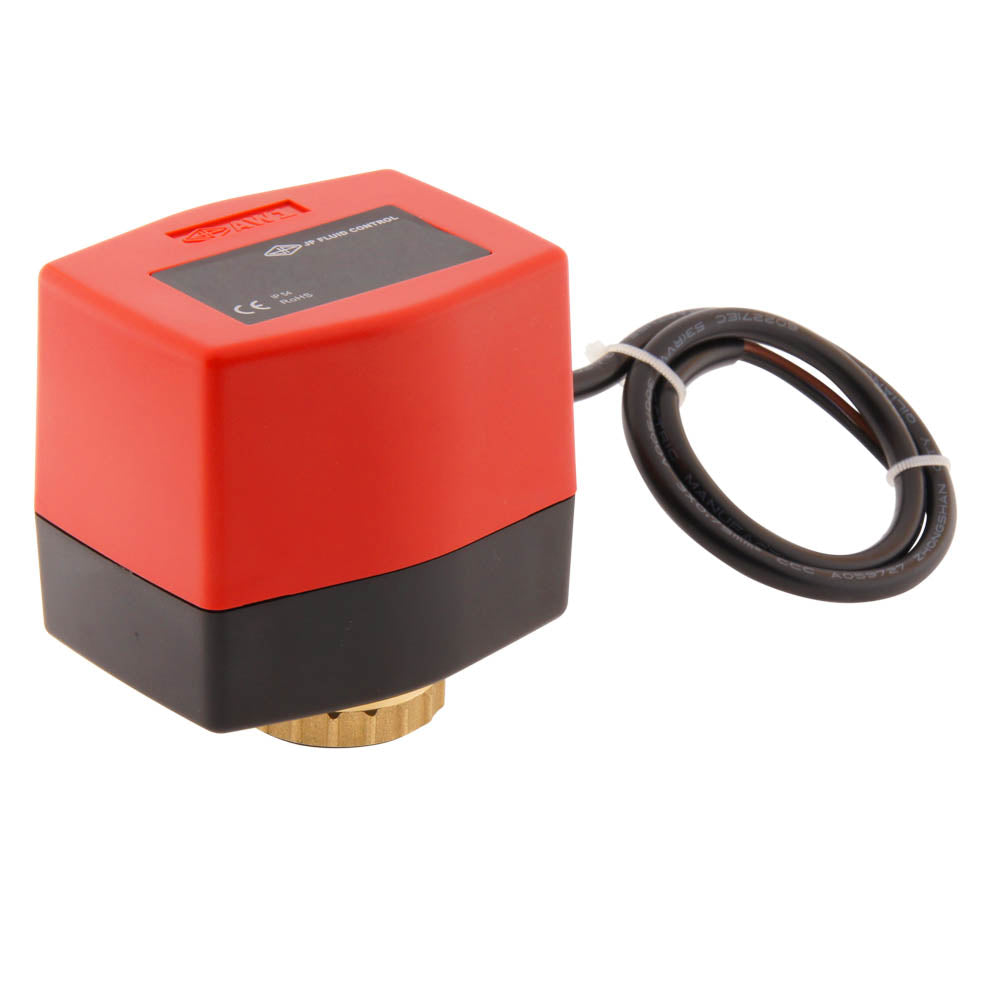

230V AC actuator with integrated relay for ball valves. 3-wire connection (open-close): phase, neutral and control wire (phase). The valve opens in 16s (normally closed). The actuator combines a robust construction (IP54) with a low energy consumption. The actuator is compatible with ball valves from the BW2 (2-way) and BW3 (3-way) series.
View all
Regular price
$70.43 USD
excl VAT

In stock Ships in 0d On request On request
0 are currently in your cart. For orders exceeding 287, expect an increased lead time of 0 days. Up to 337 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 2 - 3 business days

Description
Specifications
Downloads
Related products

Very energy efficient and robust electric ball valve actuator (IP54) of JP Fluid Control. The actuator can be connected to ball valves of JP Fluid Control BW2 (2-way) and BW3 (3-way) Series. The actuator needs a 230V AC power supply. This type of valve is commonly used in heating systems. The time for opening or closing the valve is approximately 16 seconds.

Installation

The actuator has a 3-wire connection, and must be connected as shown in the diagram below. The actuator is supplied with a cable. Energizing the control wire opens the valve. The actuator includes limit switches, energy is only consumed during opening or closing of the valve.


Important

  • Please observe the color coding of the wires.

Assembly
