Attema Cable-mate Surface mounted Wall/Ceiling Box - AT2502 [2 Pieces]

Attema Cable-mate Surface mounted Wall/Ceiling Box - AT2502 [2 Pieces]
Attema Cable-mate Surface mounted Wall/Ceiling Box - AT2502 [2 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E35HY-X2
Brand: Attema
Mfr. Part: AT2502

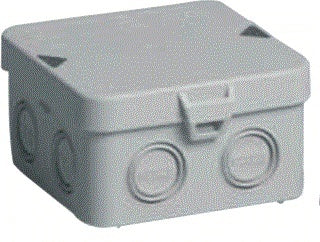

This AK1-IP65 M20/M25 cable box from Attema's Cable-mate series has a base equipped with 8 entries. The combined break ports M20/M25 offer the ability to rejuvenate a thick cable to a thinner cross section. In this case, the cable gland M20 should be fixed in the box wall with matching counter nut. The blind cover can be placed in all positions on the symmetrical base. Also features fixed seal and sealing caps. Furthermore, the Attema waterproof cable box (IP65) has the following dimensions: 95x95x45mm (HxWxD).

Contains 2 pieces

View all
$26.50
excl VAT
In stock +3 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 3 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 5 - 6 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads
Related products

Description

This AK1-IP65 M20/M25 cable box from Attema's Cable-mate series has a base equipped with 8 entries. The combined break ports M20/M25 offer the ability to rejuvenate a thick cable to a thinner cross section. In this case, the cable gland M20 should be fixed in the box wall with matching counter nut. The blind cover can be placed in all positions on the symmetrical base. Also features fixed seal and sealing caps. Furthermore, the Attema waterproof cable box (IP65) has the following dimensions: 95x95x45mm (HxWxD).

Downloads

Specifications

Max. conductor cross section (mm²)
2.5
Equipped with
None
Inlet from the rear
No
Tackable
No
Number of inlets
8
Type of housing feed-through
Preembossing
Halogen free
Yes
Surface protection
The type of surface protection of the component.
Untreated
Cover attachment
Snapped on
Sealable
No
Rated insulation voltage Ui (V)
400
Weatherproof
Yes
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None
