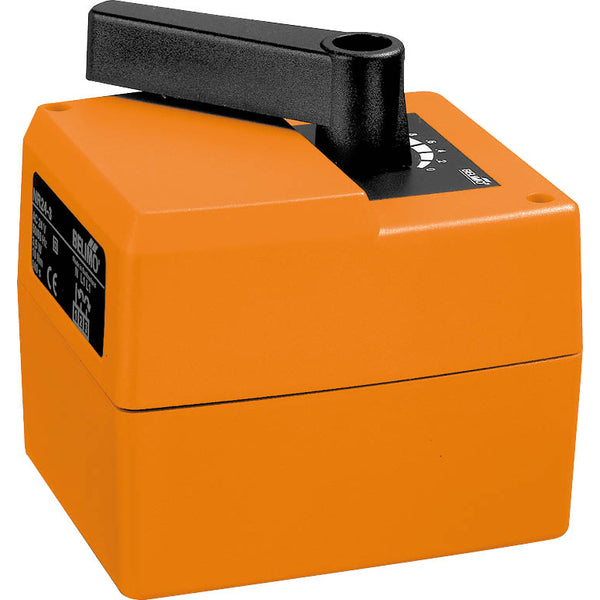

Belimo Actuator for Mixing Valve 3-Point 230VAC 10Nm IP40 140s Terminals HT230-3-T
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 10 Nm and can open/close the valve in 140 seconds. This actuator requires a supply voltage of 230 V AC and has a visual positioning indicator to clearly see the valve position. The actuator features three-point (open-close) control. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). A power cable can be easily attached via the terminal block.
- Regular price
- $195.52 USD
We sell only to registered businesses
Description
This Belimo electrical actuator is designed for controlling quarter turn valves. The actuator delivers a torque of 10 Nm and can open/close the valve in 140 seconds. This actuator requires a supply voltage of 230 V AC and has a visual positioning indicator to clearly see the valve position. The actuator features three-point (open-close) control. The actuator has a durable plastic housing and has an IP40 protection rating. This actuator can operate within ambient temperatures between 0 and 50 °C (32 and 122 °F). A power cable can be easily attached via the terminal block.
The actuator is equipped with overload protection, the actuator doesn't need limit switches and will stop automatically when the end stop is reached.
Pros:
- Manual override
- The actuator is overload protected
- Visual position indicator
Cons:
- The time to open/close of 140 s is slow for some applications
