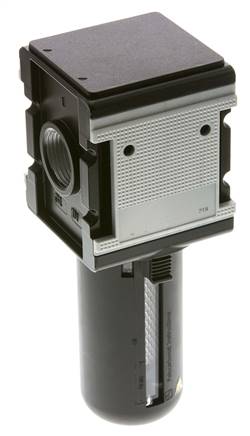

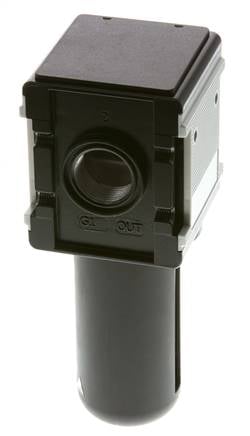

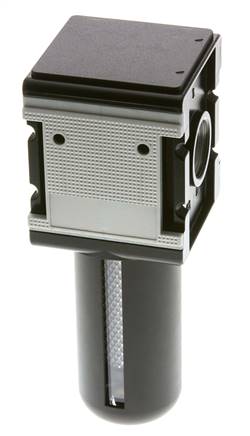

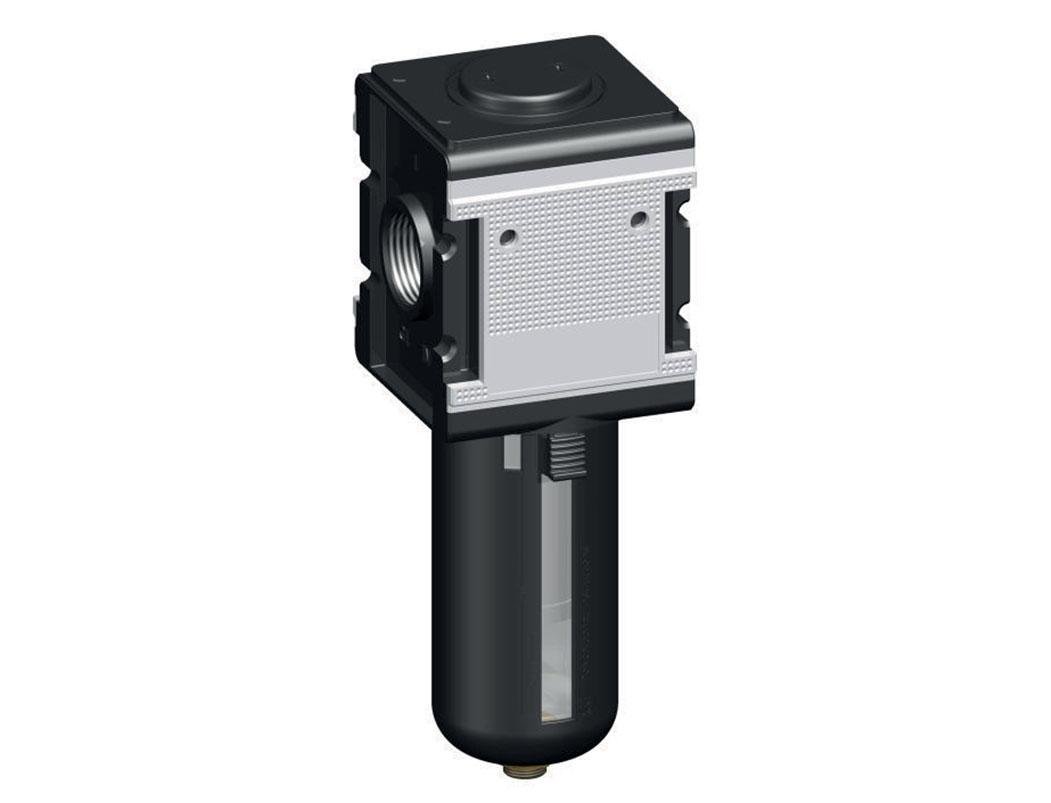

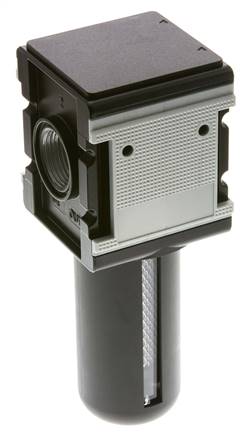

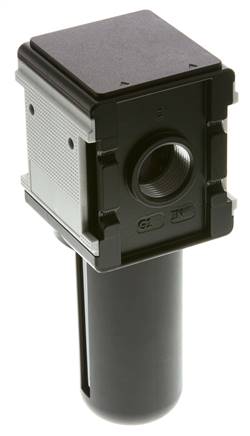

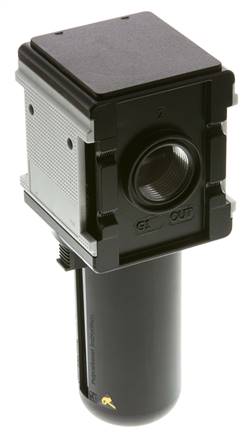

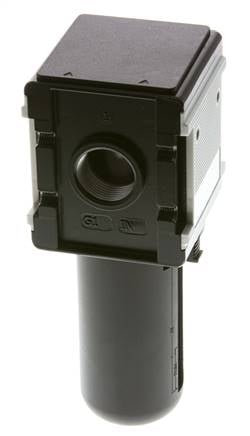

Activated Carbon Filter G1'' 3000 l/min Semi-Auto Protective Cage Polycarbonate Multifix 4
This G 1 inch pneumatic filter filters out contaminants to ensure clean air. The max flow rate is 3000 l/min (always use the flow chart for correct sizing). The semi-auto drain valve will open every time the compressed air is shut off. Suitable for a 16.0 bar (232 psi) max input and temperatures between -10 and 60 °C (14 and 140 °F). The filter bowl capacity is 87 cm3.
- Regular price
- $279.84
Description

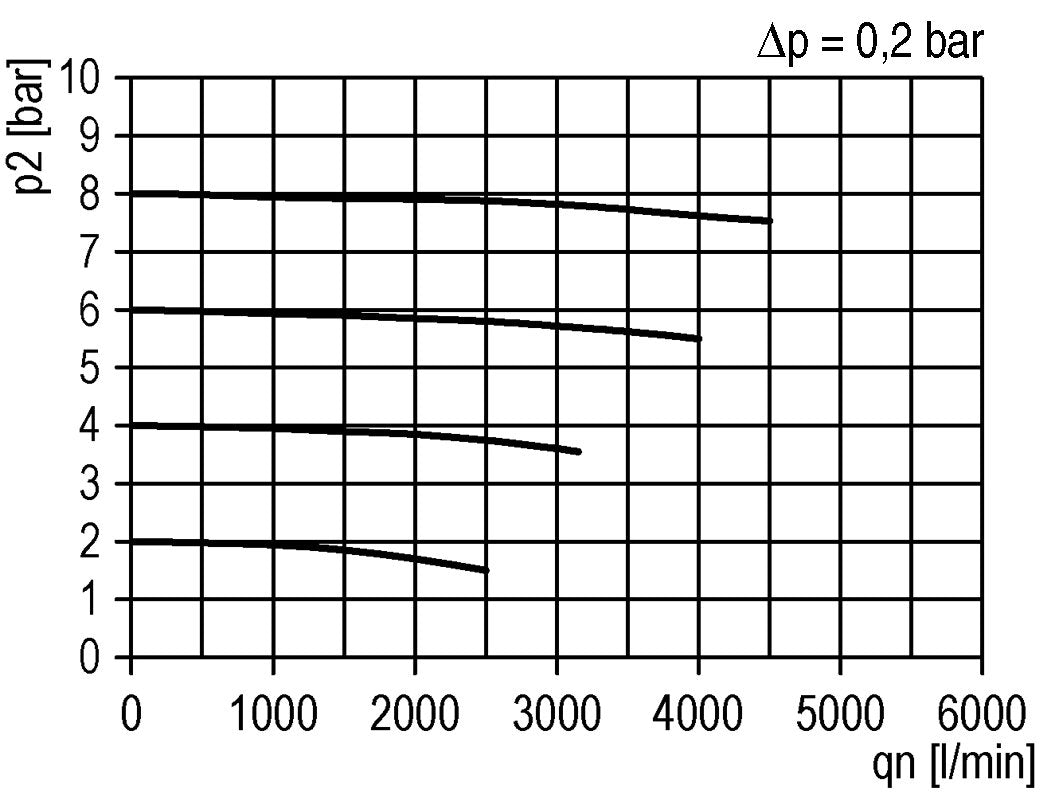

This model has G 1 inch ports. The maximum flow rate is 3000 l/min. Please note that the maximum flow rate alone doesn't provide enough information to proper sizing. Use the flow curve to determine if the pressure drop (droop) within your expected flow rate range is acceptable. The flow curve shows the flow rate for a set input pressure with multiple output pressures. For each output pressure, it can be seen how the pressure changes with increasing flow rate. It is recommended to use the device in the flat range of the curve, and not on the beginning or the end of the curve.
The maximum input pressure is 16.0 bar (232 psi) and the temperature range is between -10 and 60 °C (14 and 140 °F). It has a semi-auto condensate drain. Semi-auto means that it drains as soon as the airline is depressurized, however it can also be drained manually. Once the pressure drops below the minimum pressure, the drain valve will automatically open. The semi-automatic opening of the drain valve can be prevented by tightening the drain screw. The housing material is made out of aluminium and the filter has a bowl made of polycarbonate (PC). The bowl has protective cage. Activated carbon filters are used to remove odors from compressed air. For a longer service life, it is recommended to use the upstream connection of a prefilter and microfilter.
Mounting brackets need to be ordered separately.
