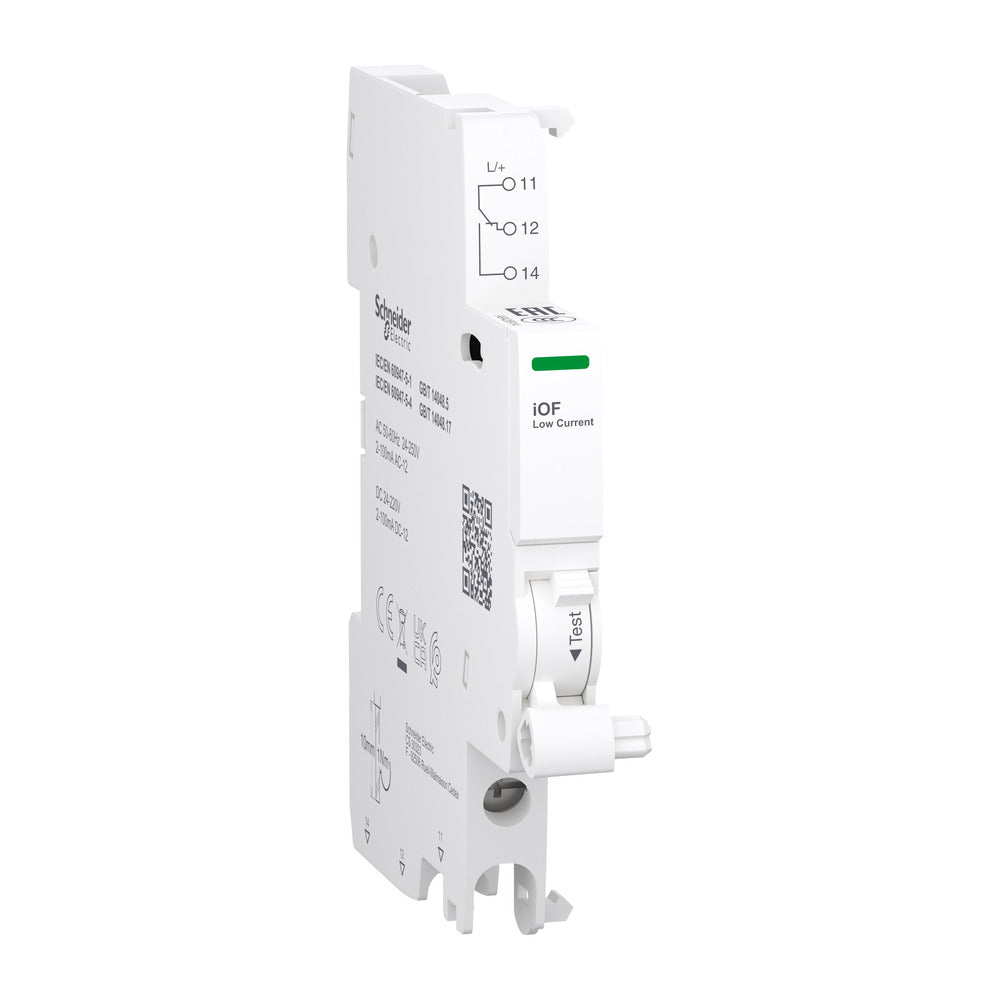

Acti9 iOF Auxiliary Contact Switch 2-100mA - A9A26914
Notice: This product will be discontinued in the future
Modular OC auxiliary contact switch designed for external position indication of associated devices. Operates with nominal current of 2-100mA at 24-240VAC (50-60Hz) and 24-220VDC. Features 1 C/O position switch with bottom screw terminal connection, compatible with Acti9 series including iC60, iID, iDPN, and iCV40 ranges. Supports rigid copper cables with 1-4mm² cross-section.
Notice: This product will be discontinued in the future
Description
Modular OC auxiliary contact switch designed for external position indication of associated devices. Operates with nominal current of 2-100mA at 24-240VAC (50-60Hz) and 24-220VDC. Features 1 C/O position switch with bottom screw terminal connection, compatible with Acti9 series including iC60, iID, iDPN, and iCV40 ranges. Supports rigid copper cables with 1-4mm² cross-section.
Pros:
- Wide voltage range compatibility (24-240VAC/24-220VDC)
- Compatible with multiple Acti9 device series
- Flexible current range from 2mA to 100mA
- Supports cable cross-sections up to 4mm²
