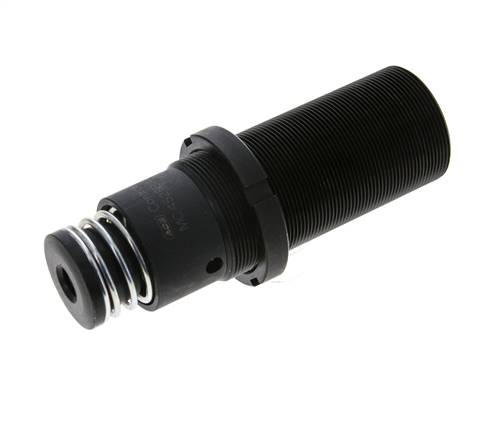

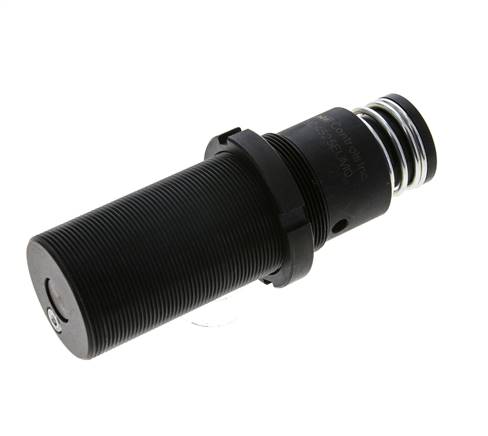

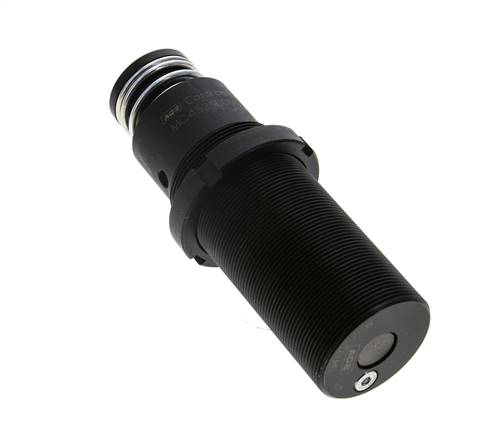

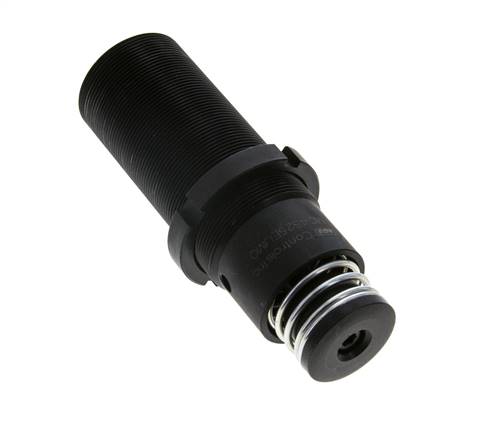

ACE Self-Adjusting Shock Absorber M 45x1.5, 25 mm Stroke - MC4525EUM-0
ACE self-adjusting industrial shock absorber with M 45x1,5 body thread and 25 mm stroke rated for up to 370 Nm per stroke, 107000 Nm/h continuous, effective mass 7 - 27 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on pneumatic cylinders, compact linear axes, indexing tables, and rotary stops where the impact energy is consistent between cycles and no field tuning is wanted.
- Regular price
- $607.10 USD
We sell only to registered businesses
Description
ACE self-adjusting industrial shock absorber with M 45x1,5 body thread and 25 mm stroke rated for up to 370 Nm per stroke, 107000 Nm/h continuous, effective mass 7 - 27 kg, operating temperature -12°C to max. +66°C (10 to +151 °F). The fixed damping profile absorbs energy across the rated mass range without setup. Used as an end-of-stroke buffer on pneumatic cylinders, compact linear axes, indexing tables, and rotary stops where the impact energy is consistent between cycles and no field tuning is wanted.
Pros:
- Fixed damping profile for 7–27 kg, no setup or tuning required
- Up to 370 Nm/stroke, 107000 Nm/h on a M 45x1,5 body, 25 mm stroke
- Sealed and maintenance-free, drop-in on standard machine axes
Cons:
- Outside 7–27 kg the damping curve is no longer optimal
- Rated -12 to +66 °C (10 to +151 °F); check before sub-zero or hot service
- Off-axis impacts shorten life; add a side load adapter when needed
