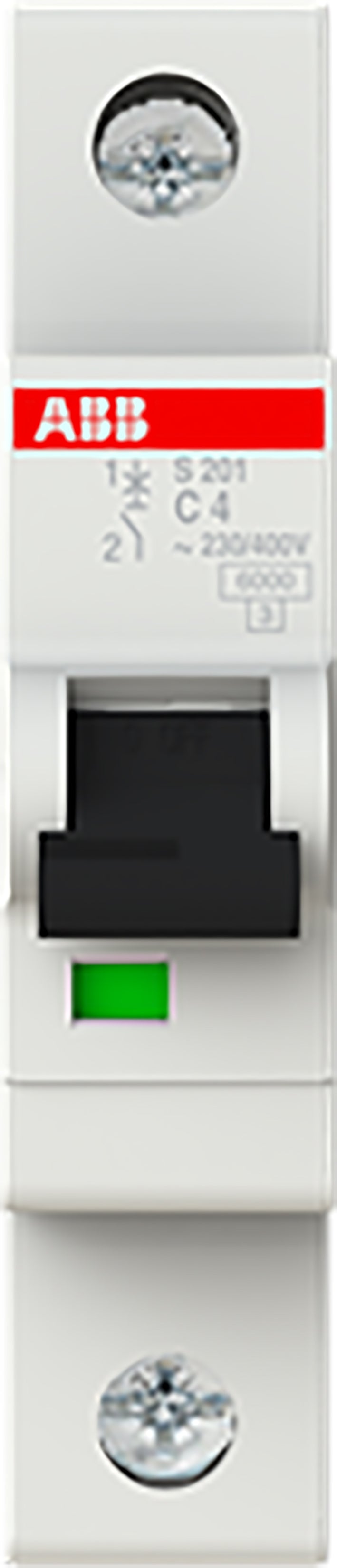

ABB System pro M compact Circuit Breaker - 2CDS251001R0044

ABB System pro M compact Circuit Breaker - 2CDS251001R0044
ABB System pro M compact Circuit Breaker - 2CDS251001R0044
Image may vary slightly
See specifications for accurate information.
Reference: E2ZUU
Brand: ABB
Mfr. Part: 2CDS251001R0044

The dual cage terminals of the S200 installation circuit breaker provide separate power supply to the comb conductor and conductor. Thanks to contact position indicators (CPI), you always know the status of the contacts. The ABB S200 circuit breaker's non-lossable bolts ensure that you don't lose what's important. ABB S circuit breakers are available in different variants.

View all
$40.68 USD
excl VAT
In stock Ships in 2d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 2 days. Up to 37 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 4 - 5 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Related products

Description

The dual cage terminals of the S200 installation circuit breaker provide separate power supply to the comb conductor and conductor. Thanks to contact position indicators (CPI), you always know the status of the contacts. The ABB S200 circuit breaker's non-lossable bolts ensure that you don't lose what's important. ABB S circuit breakers are available in different variants.

Specifications

Built-in depth
69 mm
Release characteristic
C
Number of poles (total)
1
Number of protected poles
1
Rated current
4 A
Rated voltage
230 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Voltage-type
AC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
10 kA
Frequency
50..60 Hz
Current limiting class
3
Flush-mounted installation
No
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
3
Additional equipment possible
Yes
